FRONT BRAKE PAD, BRAKE CALIPER & BRAKE ROTOR (for 2GR-FSE): Components: Illustration

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

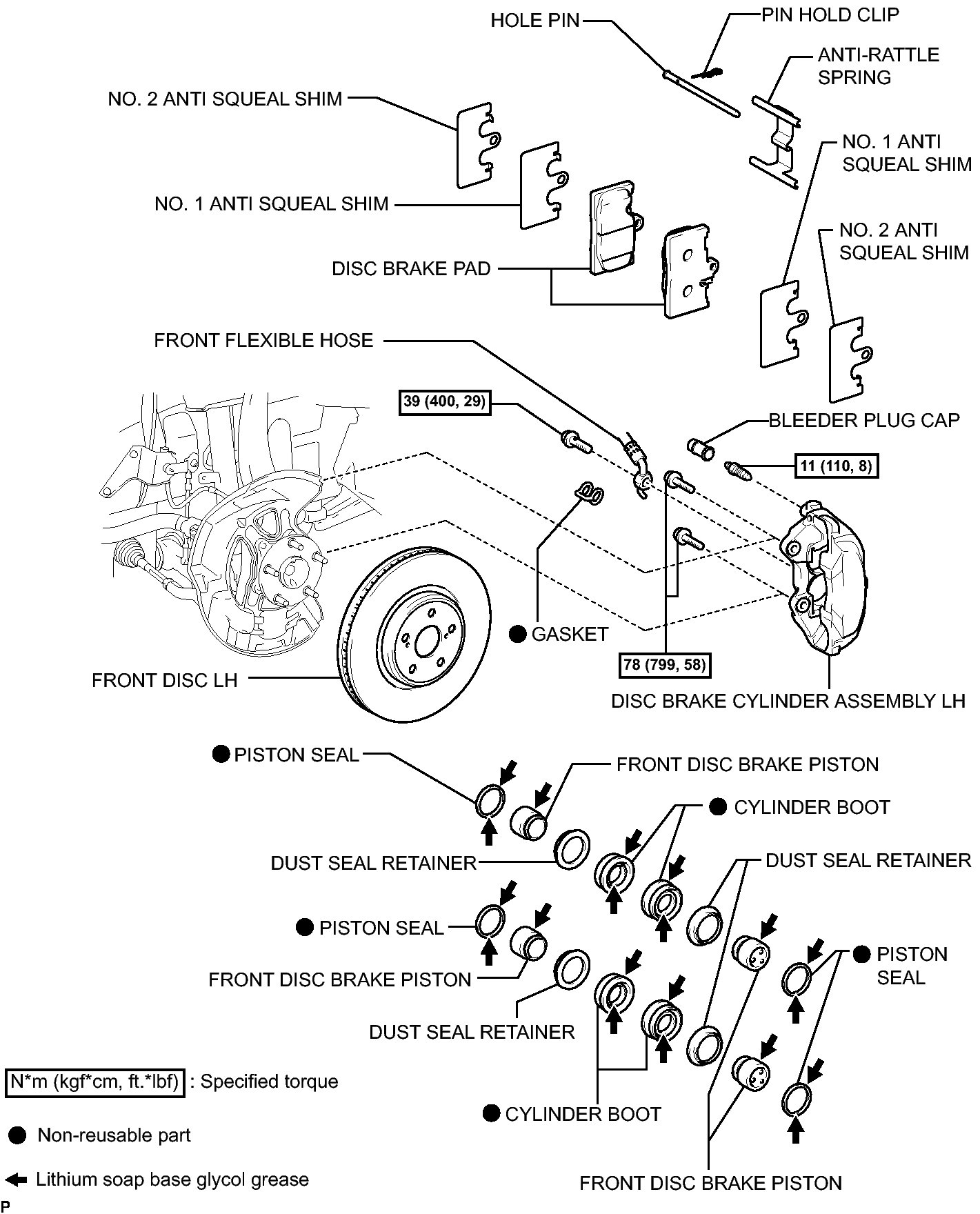

Fig 1: Identifying Front Brake (For 2GR-FSE) Replacement Components With Torque Specifications
