Driver Side Junction Block ECU Power Source Circuit: Wiring Diagram

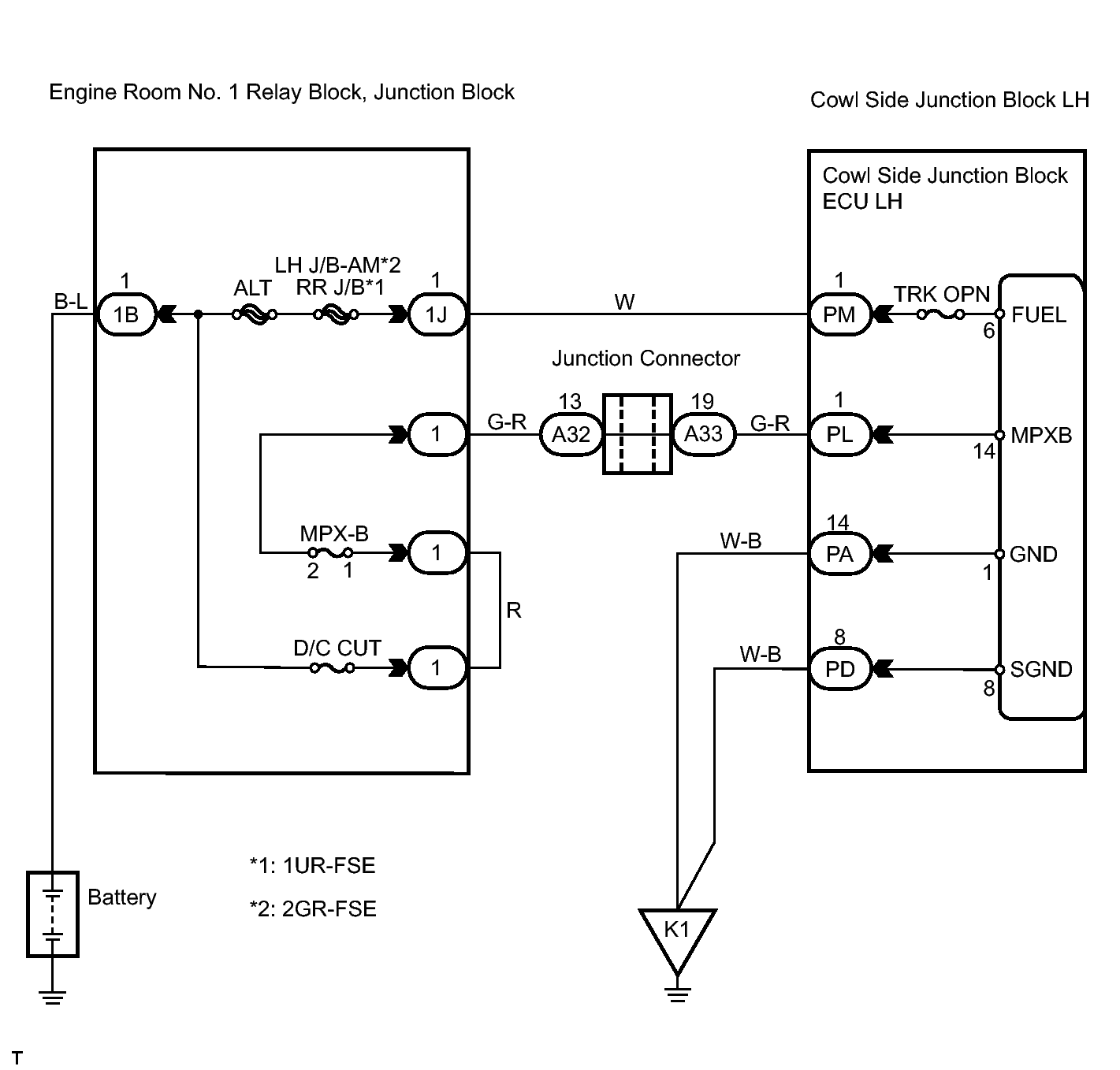

Fig 1: Identifying Driver Side J/B ECU Power Source Circuit Wiring Diagram

GTY103394

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
