Combination Meter: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait for 90 seconds after disconnecting the cable to prevent airbag deployment. Refer to PRECAUTION .

  2. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 21
  3. REMOVE FRONT DOOR OPENING TRIM COVER LH  . Refer to REMOVAL - Step 22
  4. REMOVE SIDE INSTRUMENT PANEL LH  . Refer to REMOVAL - Step 10
  5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH  . Refer to REMOVAL - Step 11
  6. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 12
  7. REMOVE STEERING COLUMN COVER
    1. Turn the steering wheel assembly to the right and remove the screw as shown in the illustration.
      Fig 1: Identifying Steering Wheel Assembly And Screw
      GTY151906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the steering wheel assembly to the left and remove the screw as shown in the illustration.
      Fig 2: Identifying Steering Wheel Assembly And Screw
      GTY151907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 claws and remove the steering column cover lower.
      Fig 3: Identifying Steering Column Cover Lower And Claws
      GTY151908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the claw and remove the steering column cover upper.
      Fig 4: Identifying Steering Column Cover Upper And Claw
      GTY143527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Remove the screw.

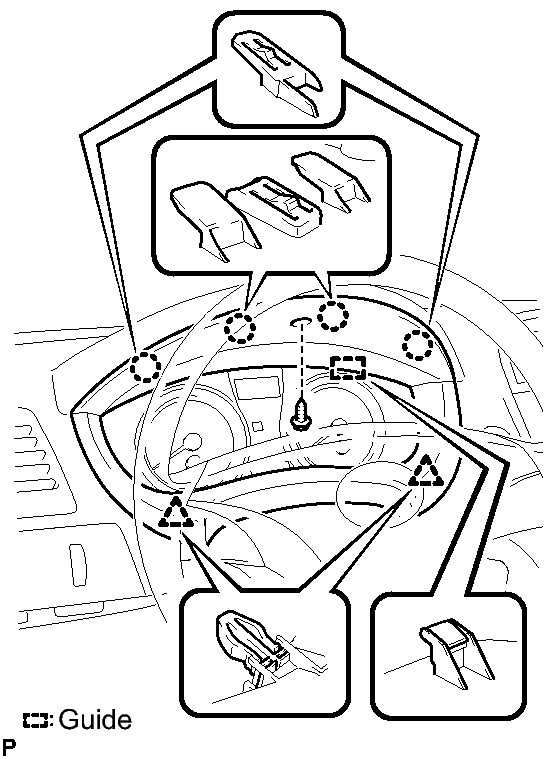

      Fig 5: Identifying Instrument Cluster Finish Panel Sub-Assembly, Claws, Guide, Clips And Screw
      GTY151909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips.
    3. Disengage the 4 claws and guide, and remove the instrument cluster finish panel sub-assembly.
  9. REMOVE COMBINATION METER ASSEMBLY
    1. Remove the 4 screws.
      Fig 6: Identifying Combination Meter Assembly And Screws
      GTY131705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 connectors as shown in the illustration.
      Fig 7: Identifying Connectors
      GTY121277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the combination meter assembly as shown in the illustration.
      Fig 8: Identifying Combination Meter Assembly
      GTY131960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
