Instrument Panel Safety Pad: Removal: Removal

  1. PRECAUTION
  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait for 90 seconds after disconnecting the cable to prevent airbag deployment. Refer to PRECAUTION .

  4. REMOVE LOWER NO. 3 STEERING WHEEL COVER  . Refer to REMOVAL - Step 3
  5. REMOVE LOWER NO. 2 STEERING WHEEL COVER  . Refer to REMOVAL - Step 4
  6. REMOVE STEERING PAD  . Refer to REMOVAL - Step 5
  7. REMOVE STEERING WHEEL ASSEMBLY  . Refer to REMOVAL - Step 14
  8. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 21
  9. REMOVE FRONT DOOR OPENING TRIM COVER LH  . Refer to REMOVAL - Step 22
  10. REMOVE SIDE INSTRUMENT PANEL LH
    1. Disengage the 3 clips.

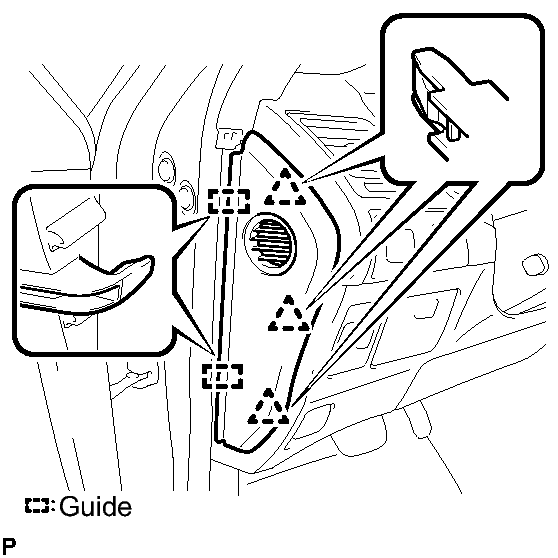

      Fig 1: Identifying Side Instrument Panel Guides And Clips
      GTY117822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the side instrument panel LH.
  11. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
    1. Disengage the 3 clips and remove the instrument panel finish panel end LH.

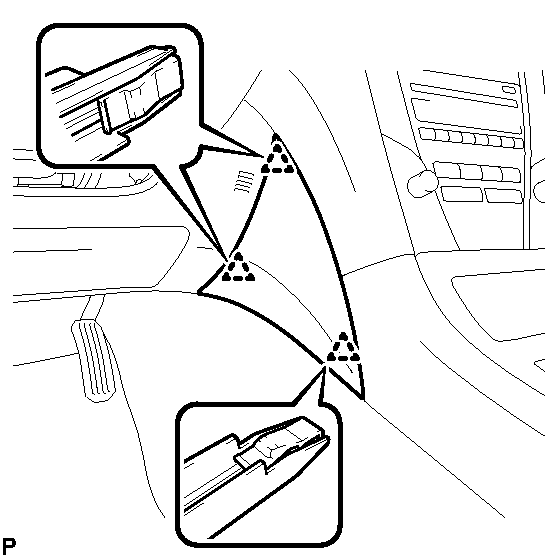

      Fig 2: Identifying Instrument Panel Finish Panel End Clips (LH)
      GTY132658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Remove the 2 bolts <A>.

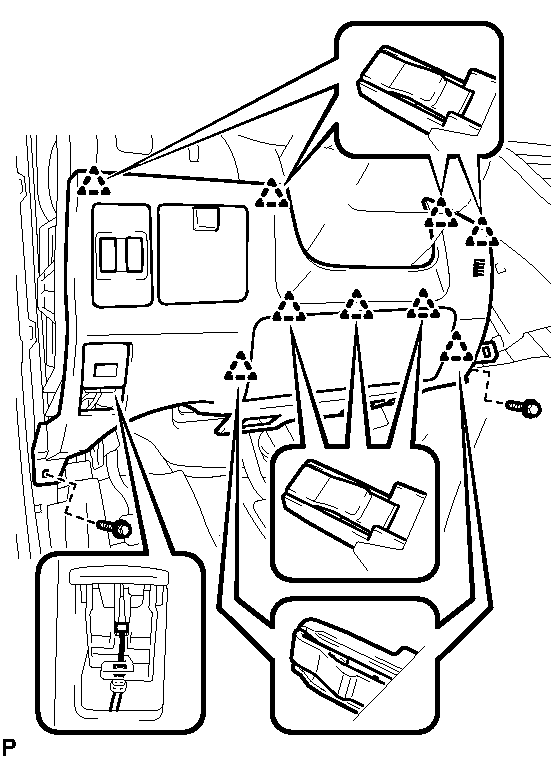

      Fig 3: Identifying Lower Instrument Panel Sub-Assembly Bolts
      GTY117823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the hood lock control cable assembly.
    3. Disengage the 9 clips.
    4. Disconnect each connector and remove the lower instrument panel sub-assembly.
  13. REMOVE STEERING COLUMN COVER
    1. Remove the 2 screws <J>.

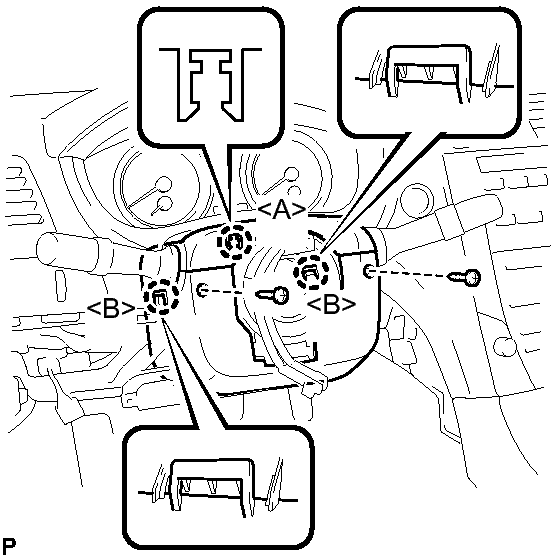

      Fig 4: Identifying Steering Column Cover Claws And Screws
      GTY118157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws <B> and remove the lower steering column cover.
    3. Disengage the claw <A> and remove the upper steering column cover.
  14. REMOVE TILT AND TELESCOPIC SWITCH  . Refer to REMOVAL - Step 16
  15. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  . Refer to REMOVAL - Step 17
  16. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Remove the screw <B>.

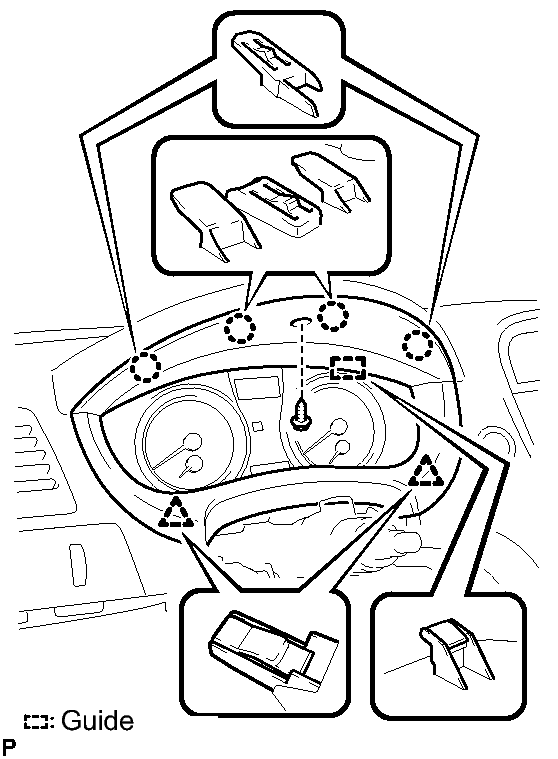

      Fig 5: Identifying Instrument Cluster Finish Panel Guide And Claws
      GTY132148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips.
    3. Disengage the guide and the 4 claws, and remove the instrument cluster finish panel sub-assembly.
  17. REMOVE COMBINATION METER ASSEMBLY
    1. Remove the 4 screws <B> or <C>.

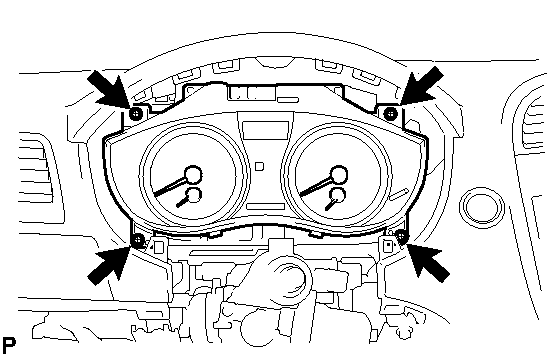

      Fig 6: Locating Combination Meter Assembly Screws
      GTY143512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and remove the combination meter assembly.
  18. REMOVE NO. 1 SWITCH HOLE BASE
    1. Disengage the 4 clips.

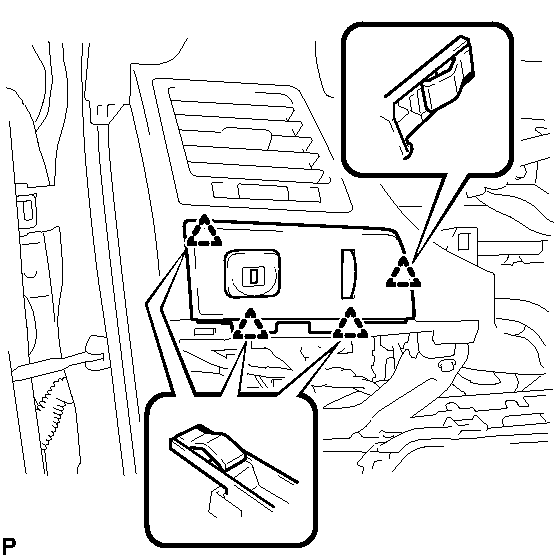

      Fig 7: Identifying No. 1 Switch Hole Base Clips
      GTY118158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and remove the No. 1 switch hole base.
  19. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
    1. Disengage the claw and 4 clips, and remove the instrument panel finish panel end RH.

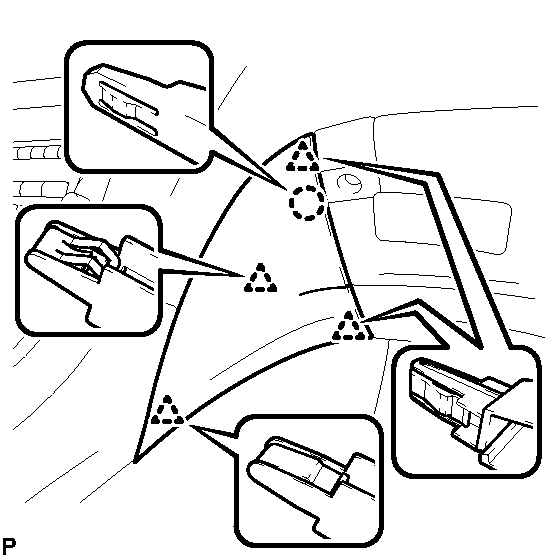

      Fig 8: Identifying Instrument Panel Finish Panel End Claw And Clips (RH)
      GTY118159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE FRONT DOOR SCUFF PLATE RH  . Refer to REMOVAL - Step 30
  21. REMOVE FRONT DOOR OPENING TRIM COVER RH  . Refer to REMOVAL - Step 31
  22. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Disengage the 5 clips.

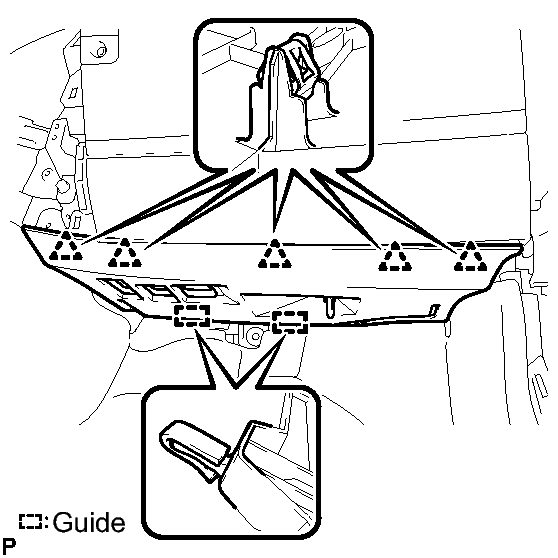

      Fig 9: Identifying Instrument Panel Under Cover Clips And Guides
      GTY136089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the No. 2 instrument panel under cover sub-assembly.
    3. Disconnect the connector.
  23. REMOVE SIDE INSTRUMENT PANEL RH
    1. Disengage the 3 clips.

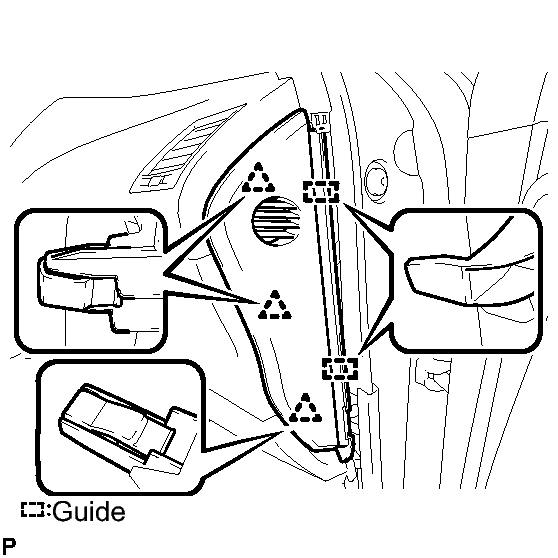

      Fig 10: Identifying Side Instrument Panel Guides And Clips (RH)
      GTY118160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the side instrument panel RH.
  24. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  . Refer to REMOVAL - Step 8
  25. REMOVE LOWER INSTRUMENT PANEL RH
    1. Remove the 6 screws <D>.

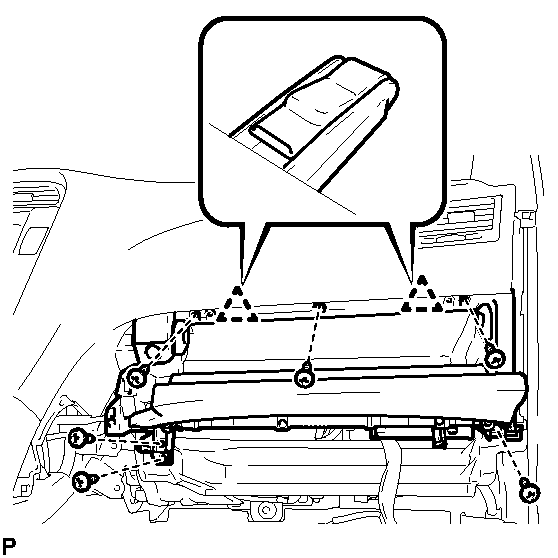

      Fig 11: Identifying Lower Instrument Panel Screws And Clips
      GTY118161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips.
    3. Disconnect each connector and remove the lower instrument panel RH
  26. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.

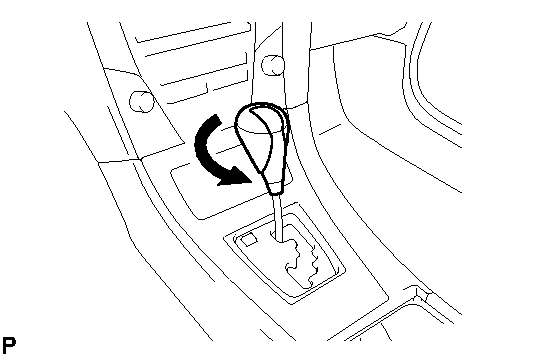

      Fig 12: Turning Shift Lever Knob Counterclockwise
      GTY136464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE
    1. Disengage the 5 claws and 6 clips.

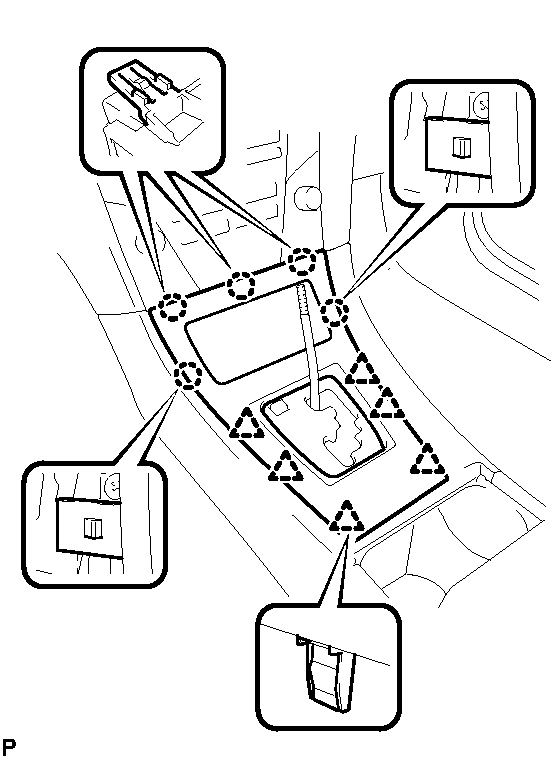

      Fig 13: Identifying Upper Console Panel Assembly Claws And Clips
      GTY137243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the upper console panel assembly with front ash receptacle.
  28. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Apply protective tape to the area shown in the illustration.

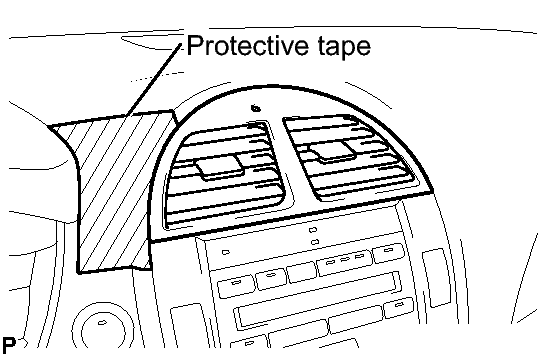

      Fig 14: Identifying Protective Tape
      GTY129747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a molding remover, disengage the 4 claws and 4 clips, and remove the No. 2 instrument panel register assembly.

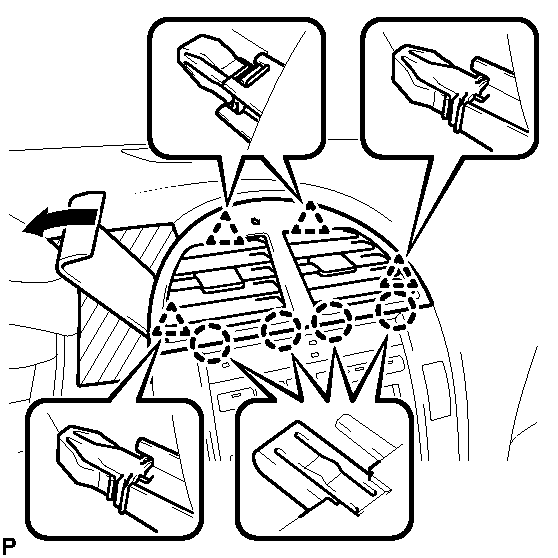

      Fig 15: Identifying Instrument Panel Register Assembly Claws And Clips
      GTY118163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector.
  29. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  . Refer to REMOVAL - Step 8
  30. REMOVE DISPLAY AND NAVIGATION MODULE DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  . Refer to REMOVAL - Step 12
  31. REMOVE HEATER SEAT SWITCH CONSOLE BASE (w/o Seat Heater System)
    1. Apply protective tape to the area shown in the illustration.

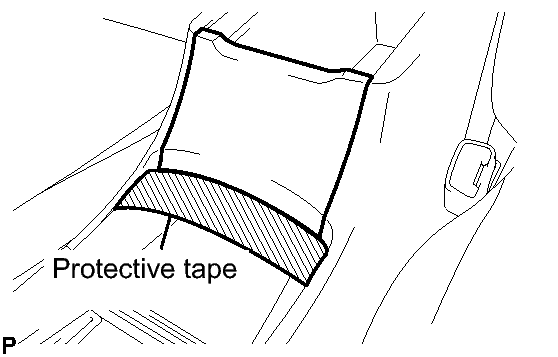

      Fig 16: Protective Tape To The Area
      GTY280440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a molding remover, disengage the 4 clips and remove the heater seat switch console base.

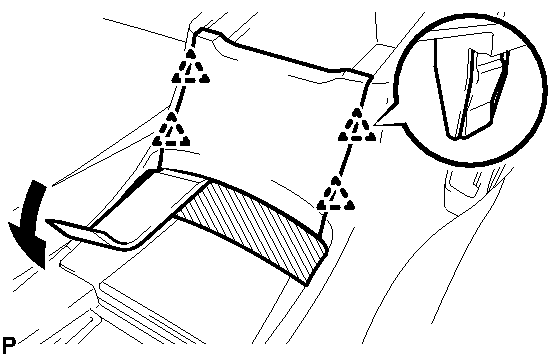

      Fig 17: Disengage The 4 Clips
      GTY266600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE HEATER SEAT SWITCH CONSOLE BASE (w/ Seat Heater System)
    1. Apply protective tape to the area shown in the illustration.

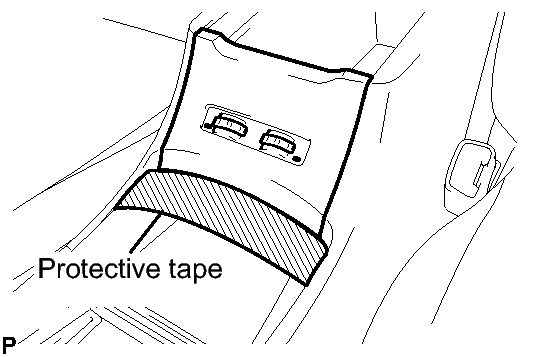

      Fig 18: Protective Tape
      GTY285163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a molding remover, disengage the 4 clips.

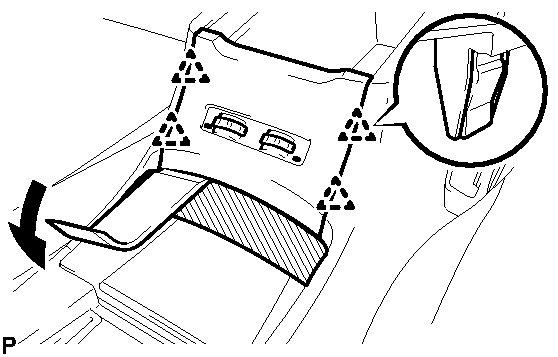

      Fig 19: Disengage The 4 Clips
      GTY266601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector and remove the heater seat switch console base.
  33. REMOVE CONSOLE BOX POCKET  . Refer to REMOVAL - Step 7
  34. REMOVE CONSOLE BOX CARPET  . Refer to REMOVAL - Step 8
  35. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 9
  36. REMOVE REAR CONSOLE BOX ASSEMBLY  . Refer to REMOVAL - Step 10
  37. REMOVE FRONT PILLAR GARNISH LH  . Refer to REMOVAL - Step 24
  38. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Using a screwdriver, disengage the 2 clips.

      HINT:

      Tape the screwdriver tip before use.

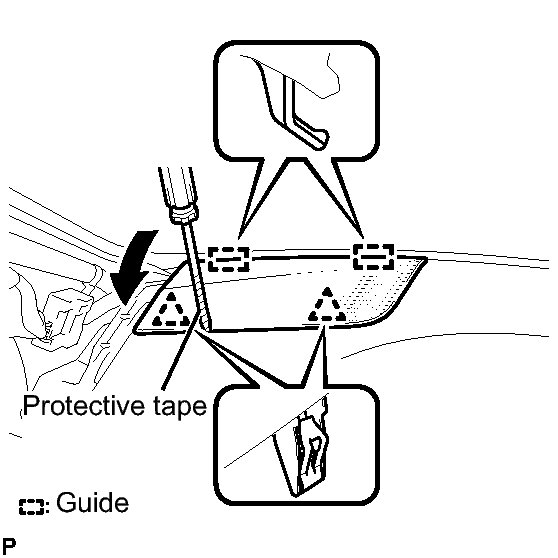

      Fig 20: Disengaging Clips
      GTY132100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the No. 1 instrument panel speaker panel sub-assembly.
  39. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)  . Refer to REMOVAL - Step 13
  40. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Disengage the 4 clips and remove the No. 1 instrument panel register assembly.

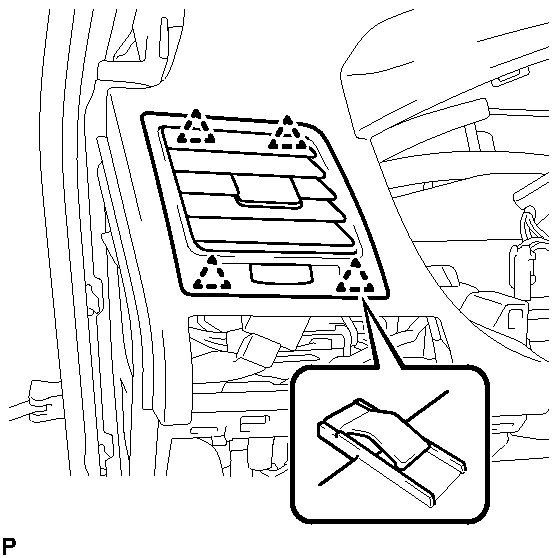

      Fig 21: Identifying Instrument Panel Register Assembly Clips
      GTY117950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE FRONT PILLAR GARNISH RH  . Refer to REMOVAL - Step 33
  42. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Using a screwdriver, disengage the 2 clips.

      HINT:

      Tape the screwdriver tip before use.

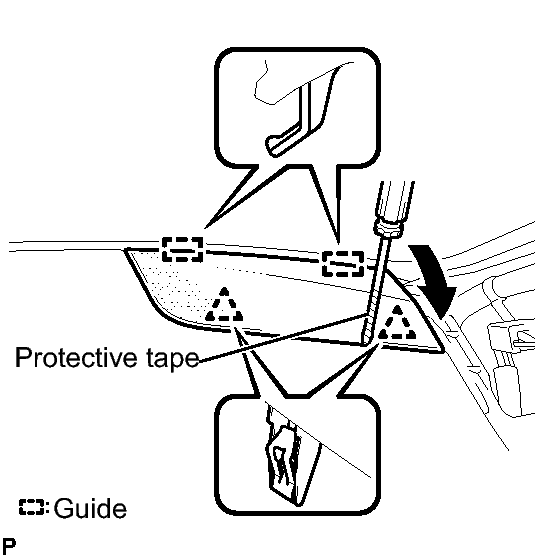

      Fig 22: Disengaging Clips
      GTY123215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the No. 2 instrument panel speaker panel sub-assembly.
  43. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)

    HINT:

    Use the same procedures described for the LH side. Refer to REMOVAL - Step 13 .

  44. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Disengage the 4 clips and remove the No. 3 instrument panel register assembly.

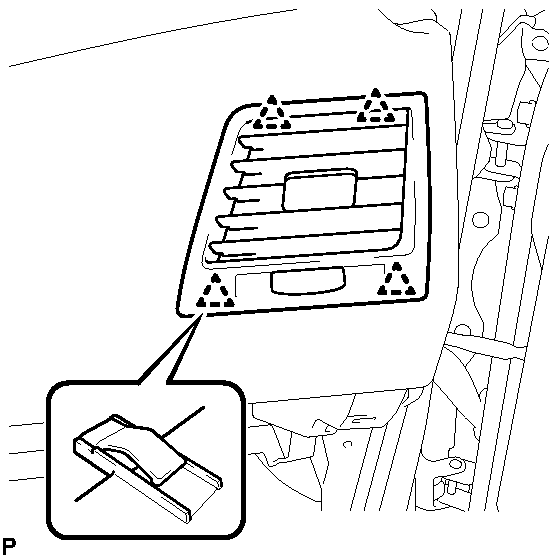

      Fig 23: Identifying Instrument Panel Register Assembly Clips
      GTY126374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE NO. 1 SPEAKER HOLE COVER
    1. Apply protective tape to the area shown in the illustration.

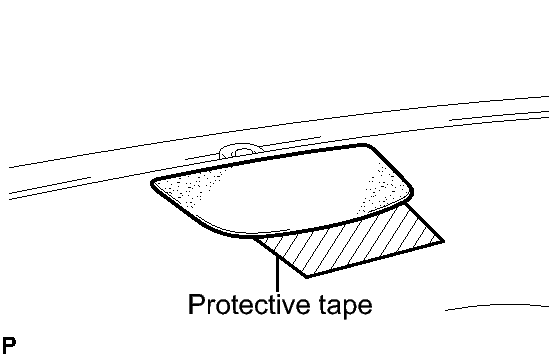

      Fig 24: Identifying Applying Protective Tape Area
      GTY126523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a molding remover, disengage the 4 clips and remove the No. 1 speaker hole cover.

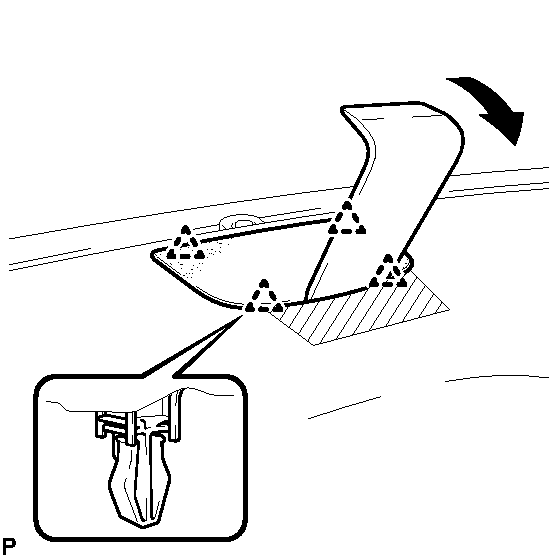

      Fig 25: Removing Speaker Hole Cover
      GTY122499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY  . Refer to REMOVAL - Step 2
  47. REMOVE NO. 1 INSTRUMENT PANEL MOUNTING BRACKET
    1. Remove the clip and the No. 1 instrument panel mounting bracket.

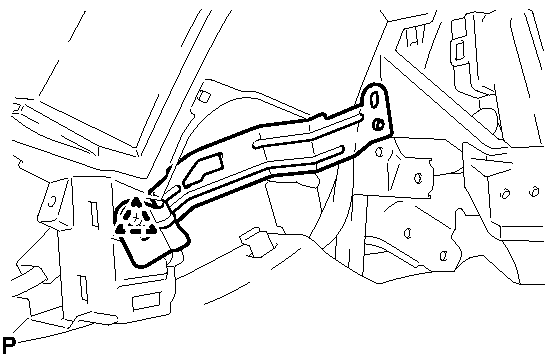

      Fig 26: Identifying Instrument Panel Mounting Bracket Clip
      GTY117951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE PUSH START SWITCH
    1. Disengage the 2 claws and remove the push start switch.

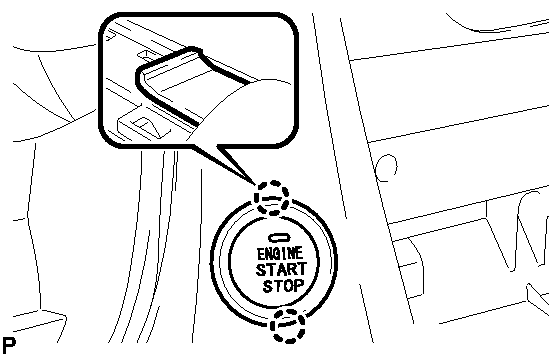

      Fig 27: Identifying Push Start Switch Claws
      GTY117962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
  49. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY  . Refer to REMOVAL - Step 49
  50. REMOVE ROOM TEMPERATURE SENSOR  . Refer to REMOVAL - Step 6
  51. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY (w/o DVD Player)
    1. Disconnect each connector.
    2. Disengage each clamp.
    3. Remove the 2 passenger airbag bolts <K>.
    4. Remove the clip.
    5. Remove the bolt <L>.
      Fig 28: Identifying Instrument Panel Safety Pad Assembly Connector And Passenger Airbag Bolts
      GTY117952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 5 bolts <G> and nut <H>.
    7. Remove the 4 clips.
    8. Disengage the 5 claws and remove the instrument panel safety pad assembly.

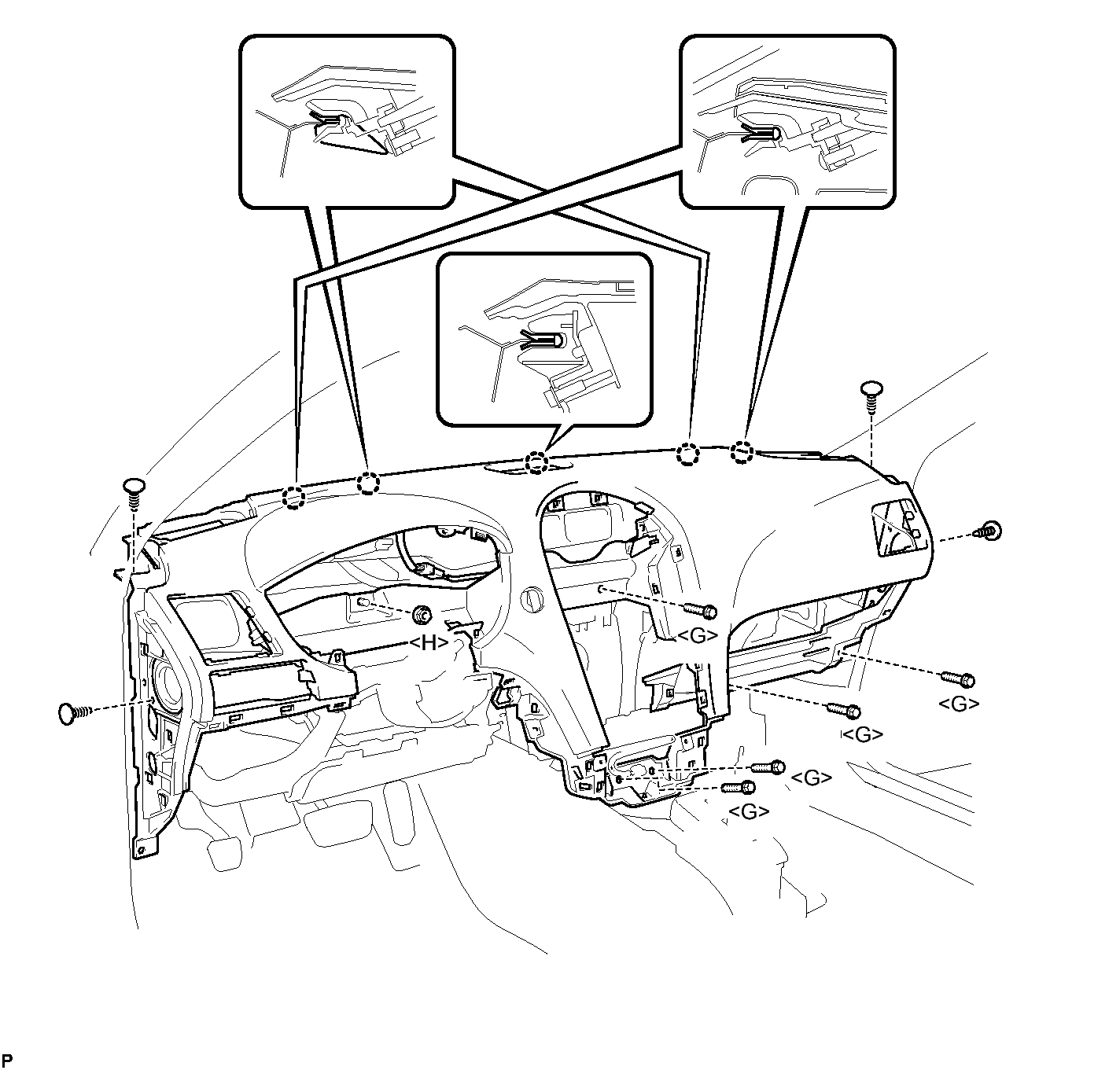

      Fig 29: Identifying Instrument Panel Safety Pad Assembly Claws
      GTY117953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY (w/ DVD Player)
    1. Disconnect each connector.
    2. Disengage each clamp.
    3. Remove the 2 passenger airbag bolts <K>.
    4. Remove the clip.
    5. Remove the bolt <L>.

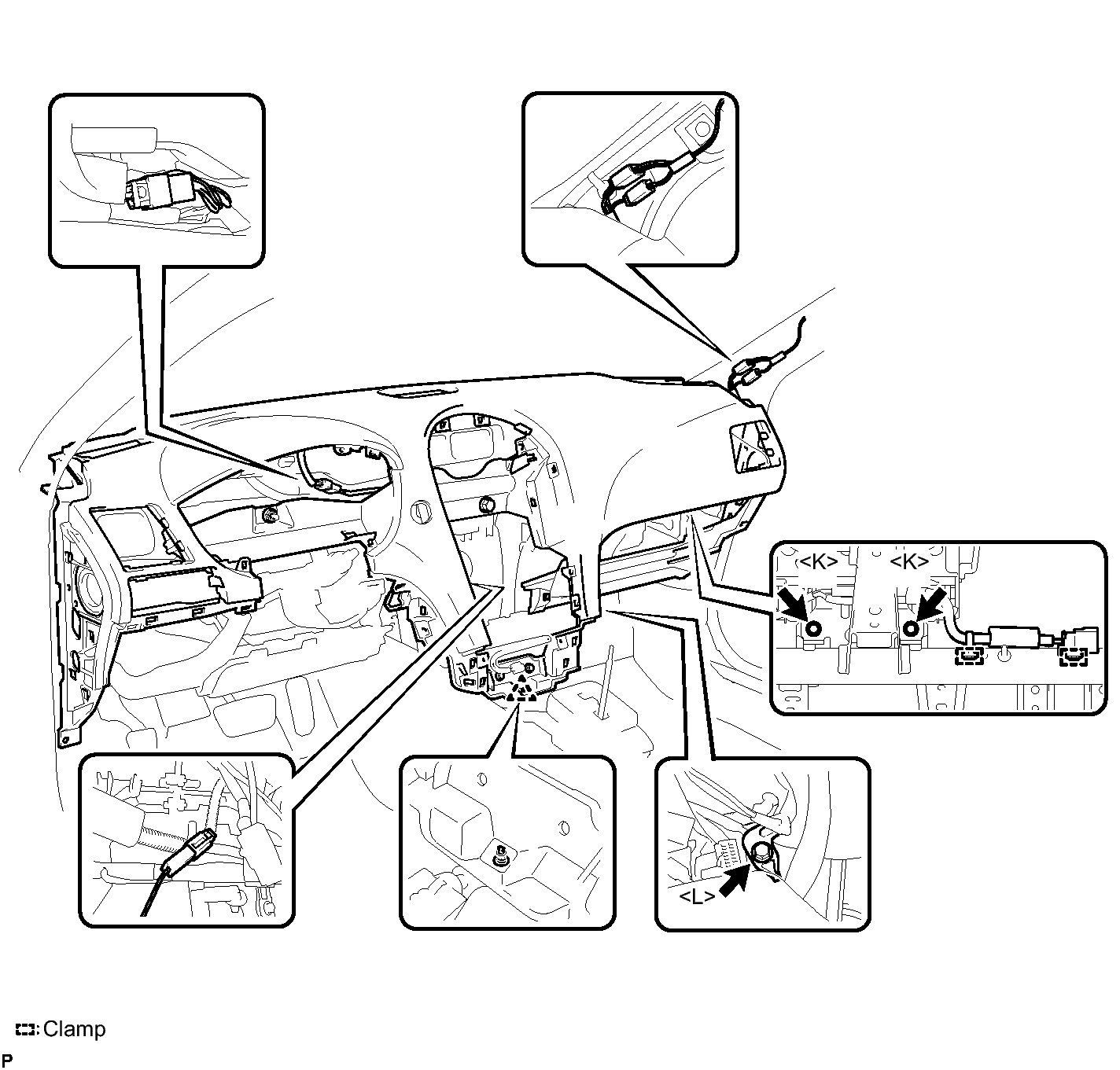

      Fig 30: Identifying Instrument Panel Safety Pad Assembly Connector And Passenger Airbag Bolts
      GTY117963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 5 bolts <G> and nut <H>.
    7. Remove the 4 clips.
    8. Disengage the 5 claws and remove the instrument panel safety pad assembly.
      Fig 31: Identifying Instrument Panel Safety Pad Assembly Claws
      GTY117953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE NO. 1 INSTRUMENT PANEL CLIP
    1. Disengage the 3 claws and remove the 3 No. 1 instrument panel clips.

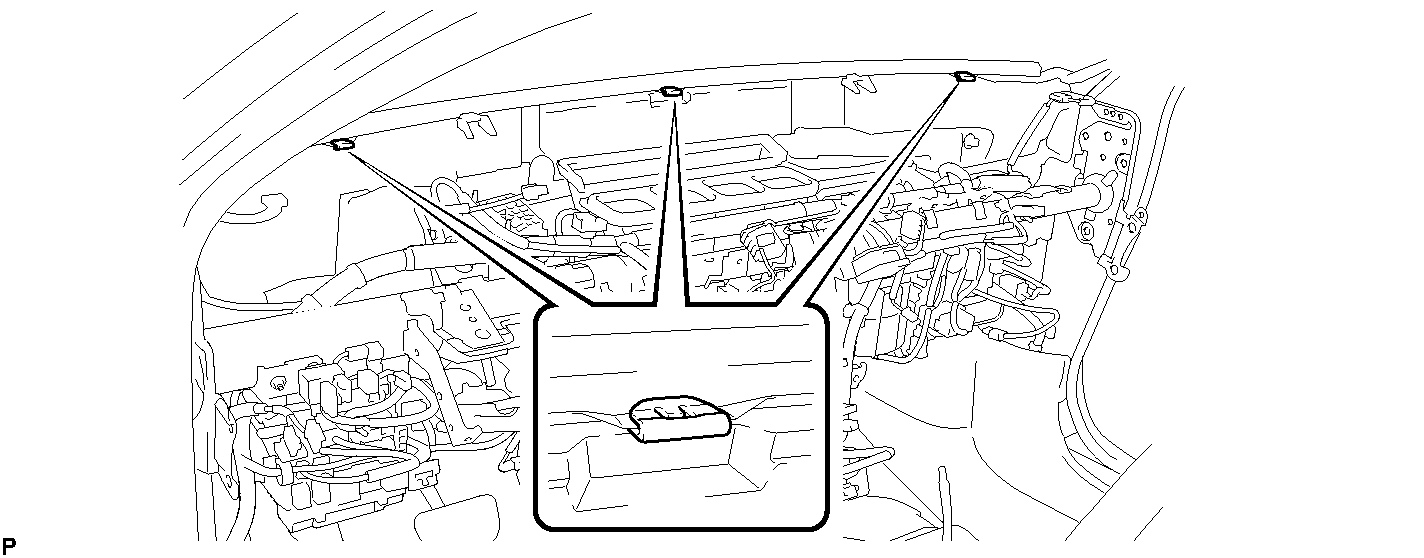

      Fig 32: Identifying Instrument Panel Clips
      GTY117960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE NO. 3 INSTRUMENT PANEL STAY
    1. Disengage the 2 claws and remove the 2 No. 3 instrument panel stays.

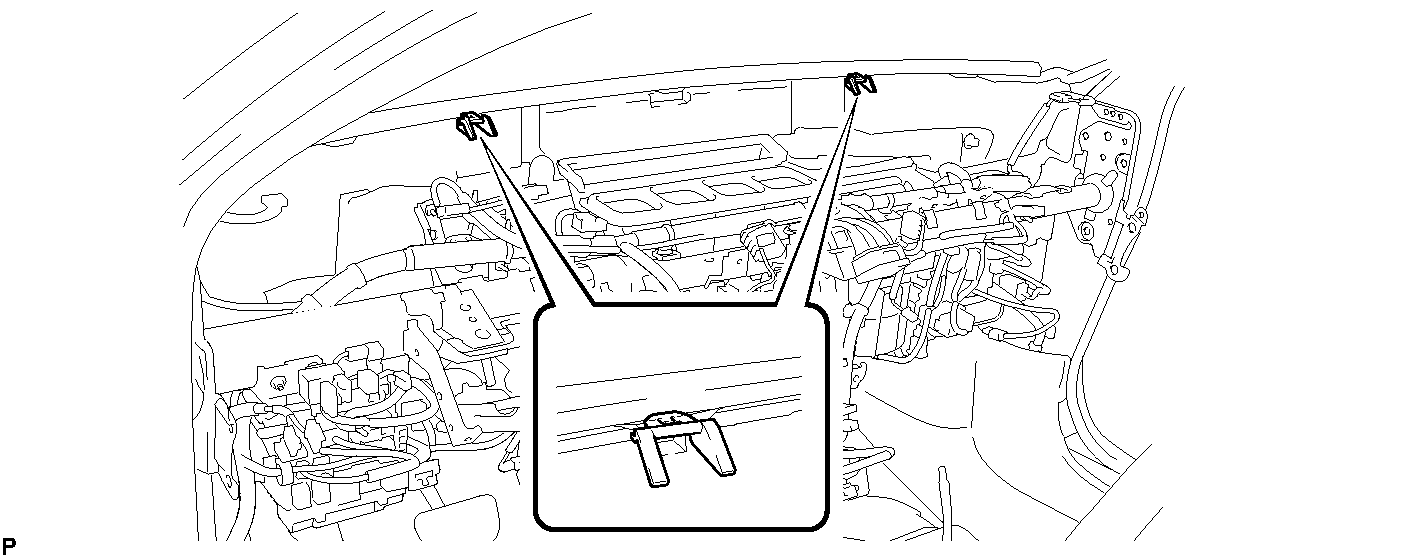

      Fig 33: Identifying Instrument Panel Stays
      GTY117961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
