TC and CG Terminal Circuit: Wiring Diagram

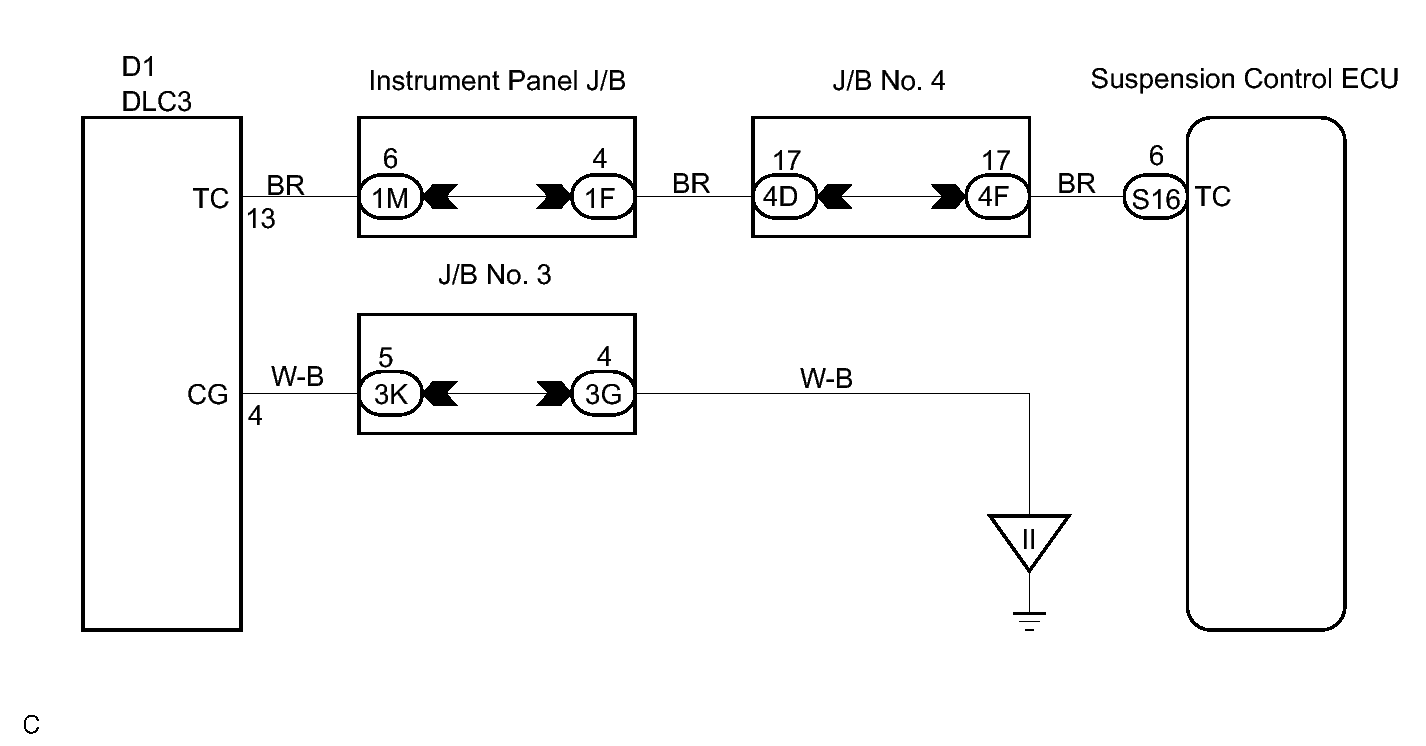

Fig 1: Identifying TC & CG Terminal Circuit Diagram

GTY142607

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
