Height Control OFF Indicator Light Circuit: Wiring Diagram

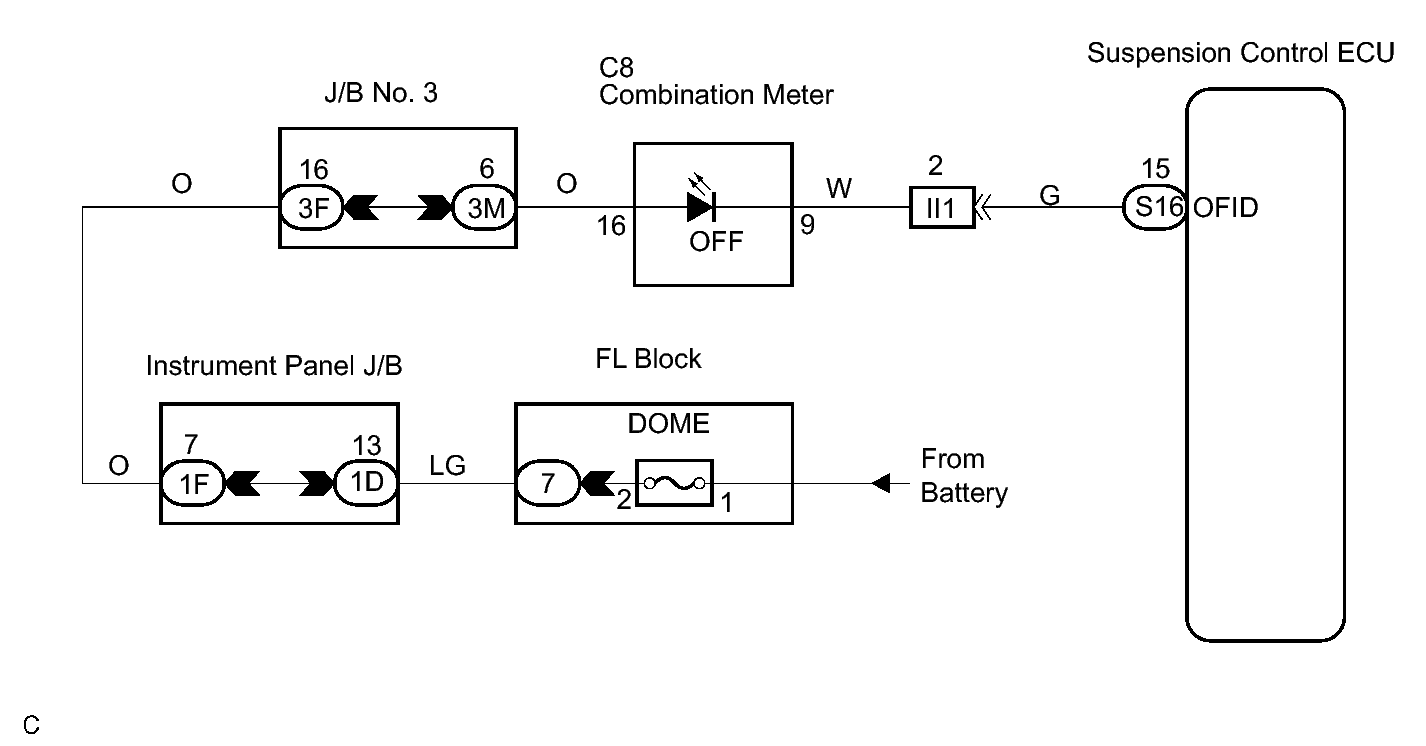

Fig 1: Identifying Height Control OFF Indicator Light Wiring Diagram

GTY154732

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
