Repair and Diagnosis
>>
Suspension
>>
Rear Suspension
>>
Air Suspension System (Diagnostic Codes & Circuit Tests)
>>
Air Suspension System
>>
Height Control Indicator Light Circuit
>>
Wiring Diagram
Height Control Indicator Light Circuit: Wiring Diagram

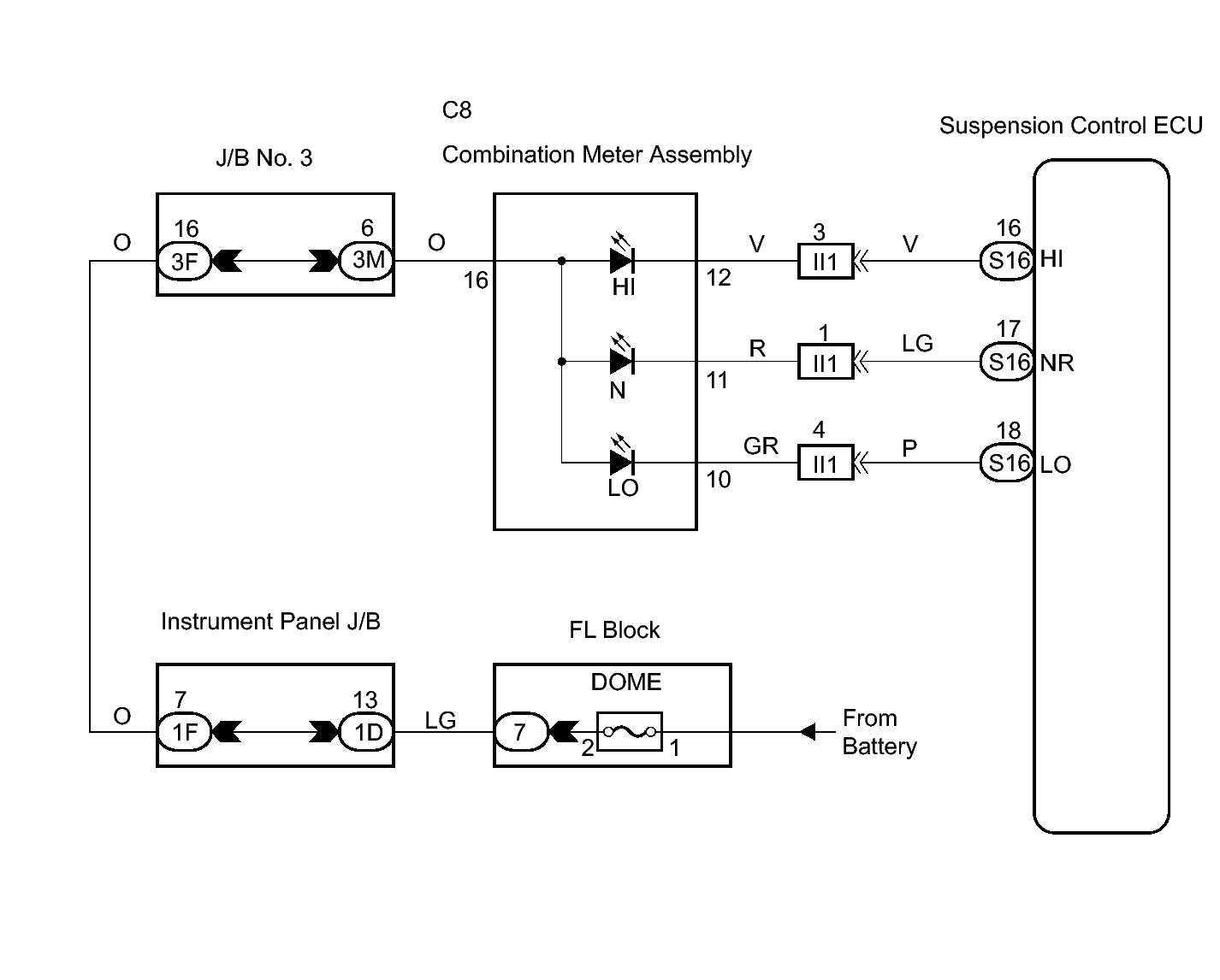

Fig 1: Identifying Height Control Indicator Light Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
