Rear Suspension
>>
Air Suspension System (Diagnostic Codes & Circuit Tests)
>>
Air Suspension System
>>
DTC C1788/88: Height Control OFF Switch Circuit
>>
Wiring Diagram
DTC C1788/88: Height Control OFF Switch Circuit: Wiring Diagram

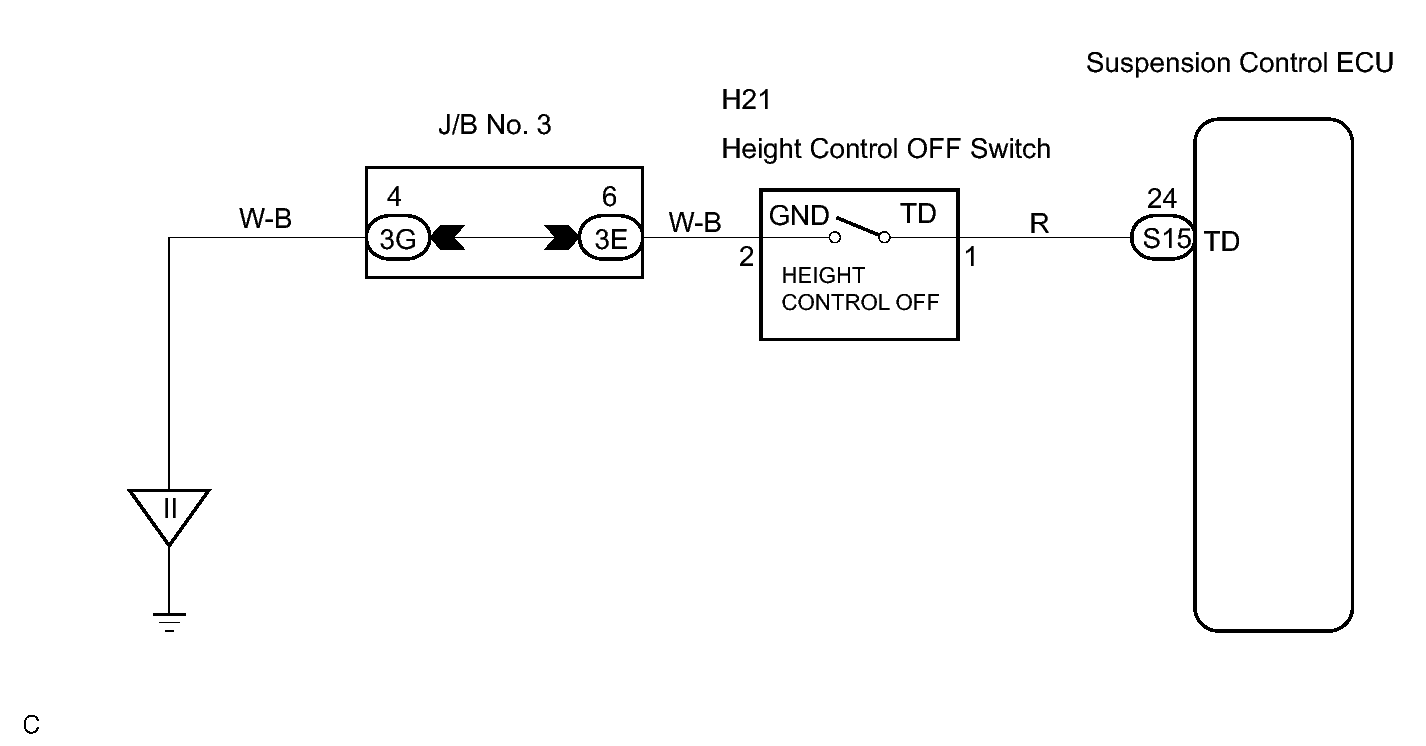

Fig 1: Identifying Height Control OFF Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
