DTC C1786/86: Height Control Switch Circuit: Wiring Diagram

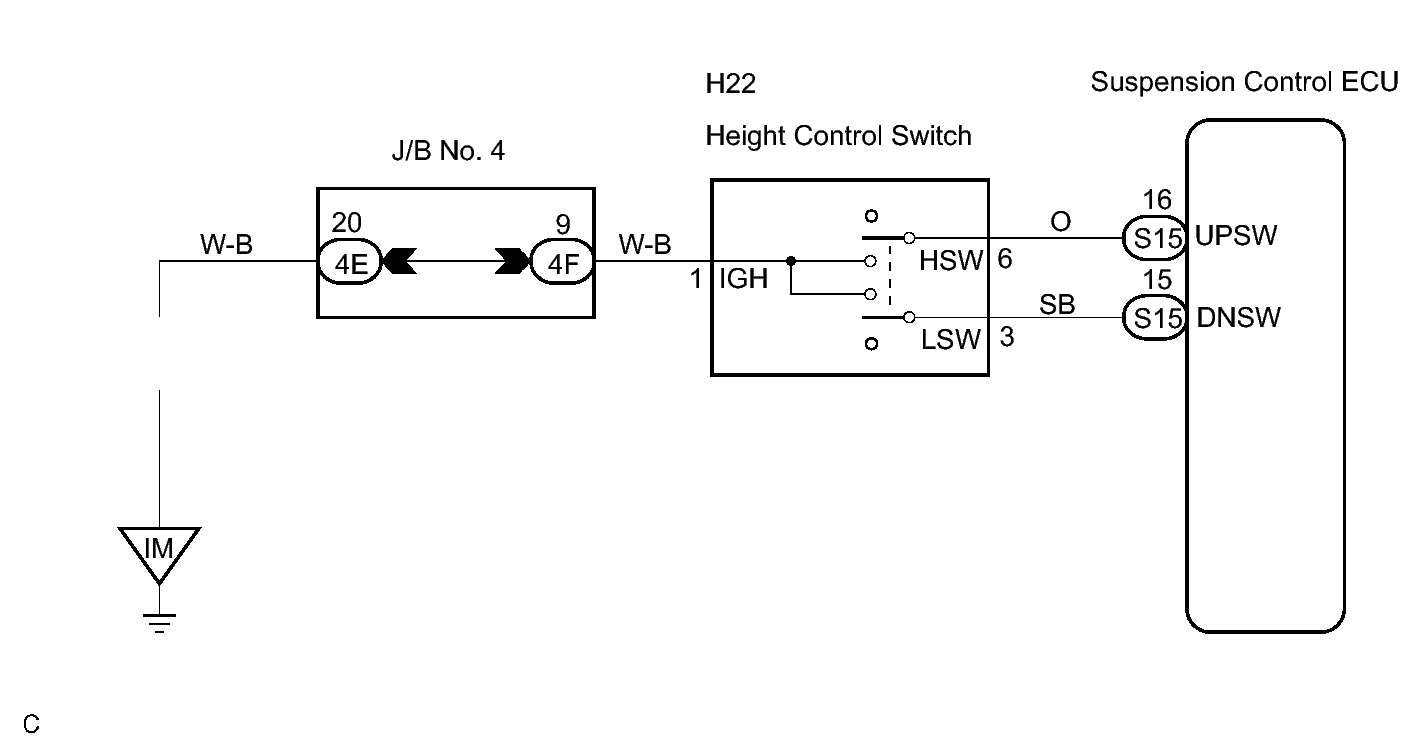

Fig 1: Identifying Height Control Switch Wiring Diagram

GTY154729

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
