DTC C1782/82: Stop Light Switch Circuit: Wiring Diagram

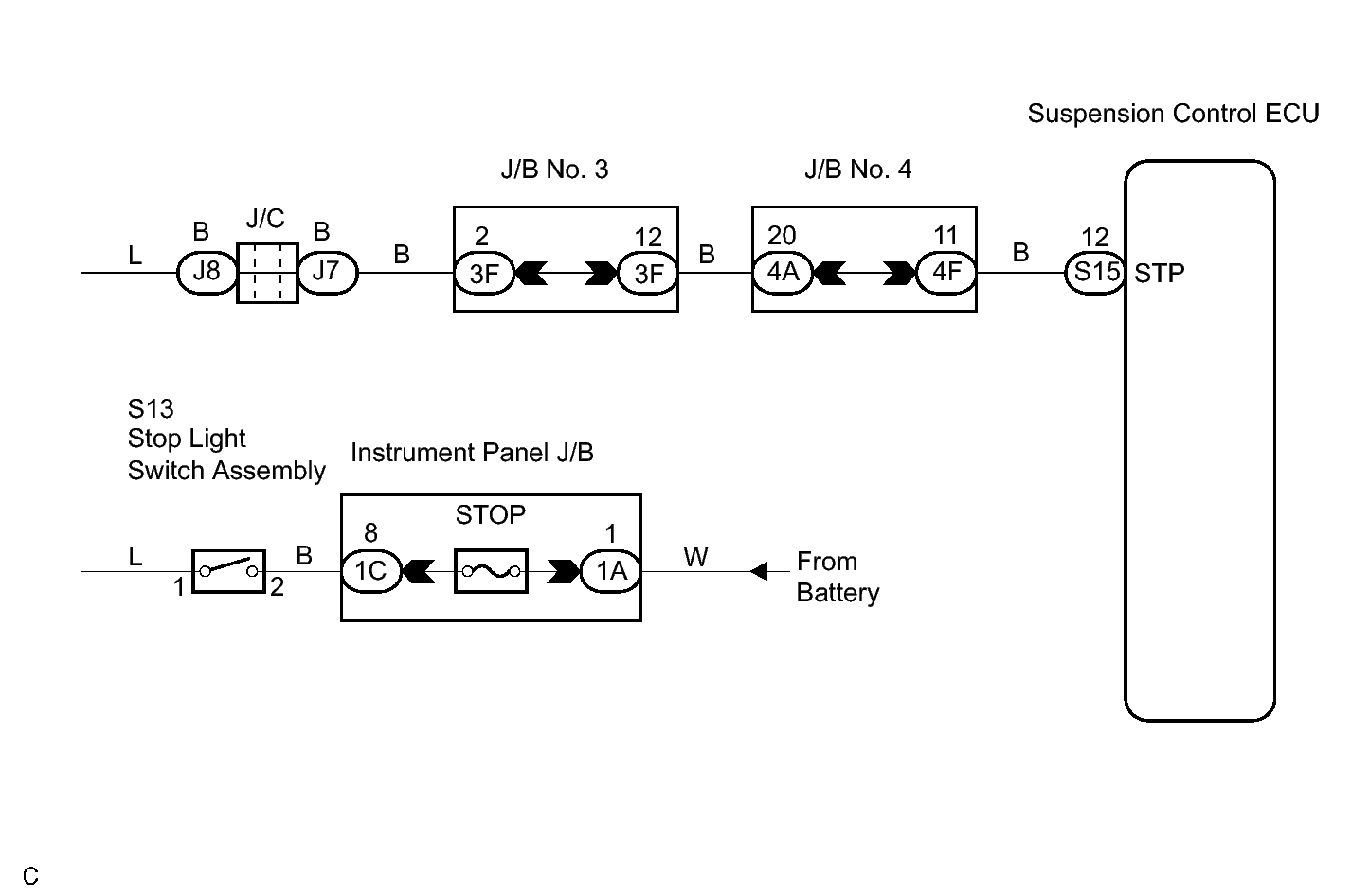

Fig 1: Identifying Stop Light Switch Wiring Diagram

GTY154728

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
