Home >> Lexus >> 2009 >> RX 350 FWD >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Air Suspension System (Diagnostic Codes & Circuit Tests) >> Air Suspension System >> DTC C1776/76: Speed Sensor Circuit; DTC C1784/84: Right Rear Speed Sensor Circuit; DTC C1785/85: Left Rear Speed Sensor Circuit >> Wiring Diagram

DTC C1776/76: Speed Sensor Circuit; DTC C1784/84: Right Rear Speed Sensor Circuit; DTC C1785/85: Left Rear Speed Sensor Circuit: Wiring Diagram

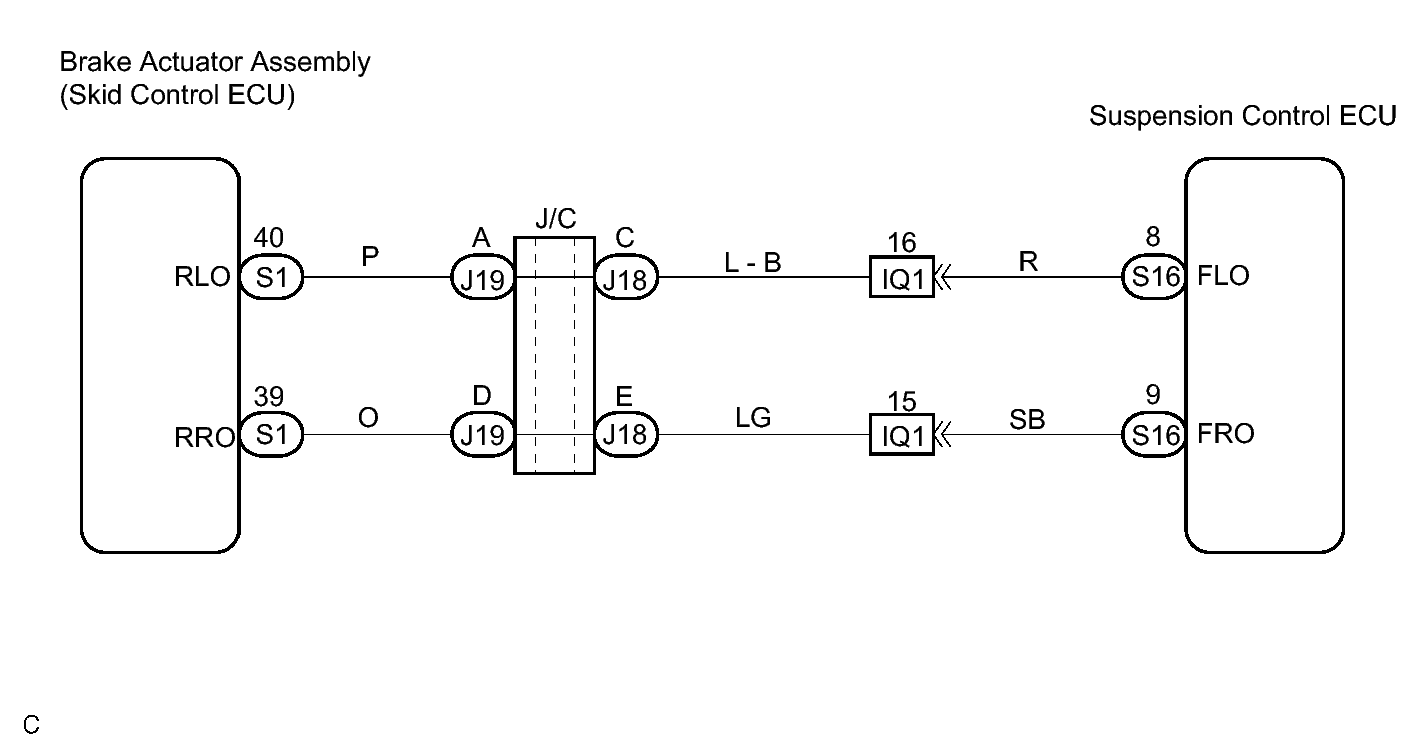

Fig 1: Identifying Speed Sensor Wiring Diagram
GTY154727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
