DTC C1774/74: Power Source Circuit: Wiring Diagram

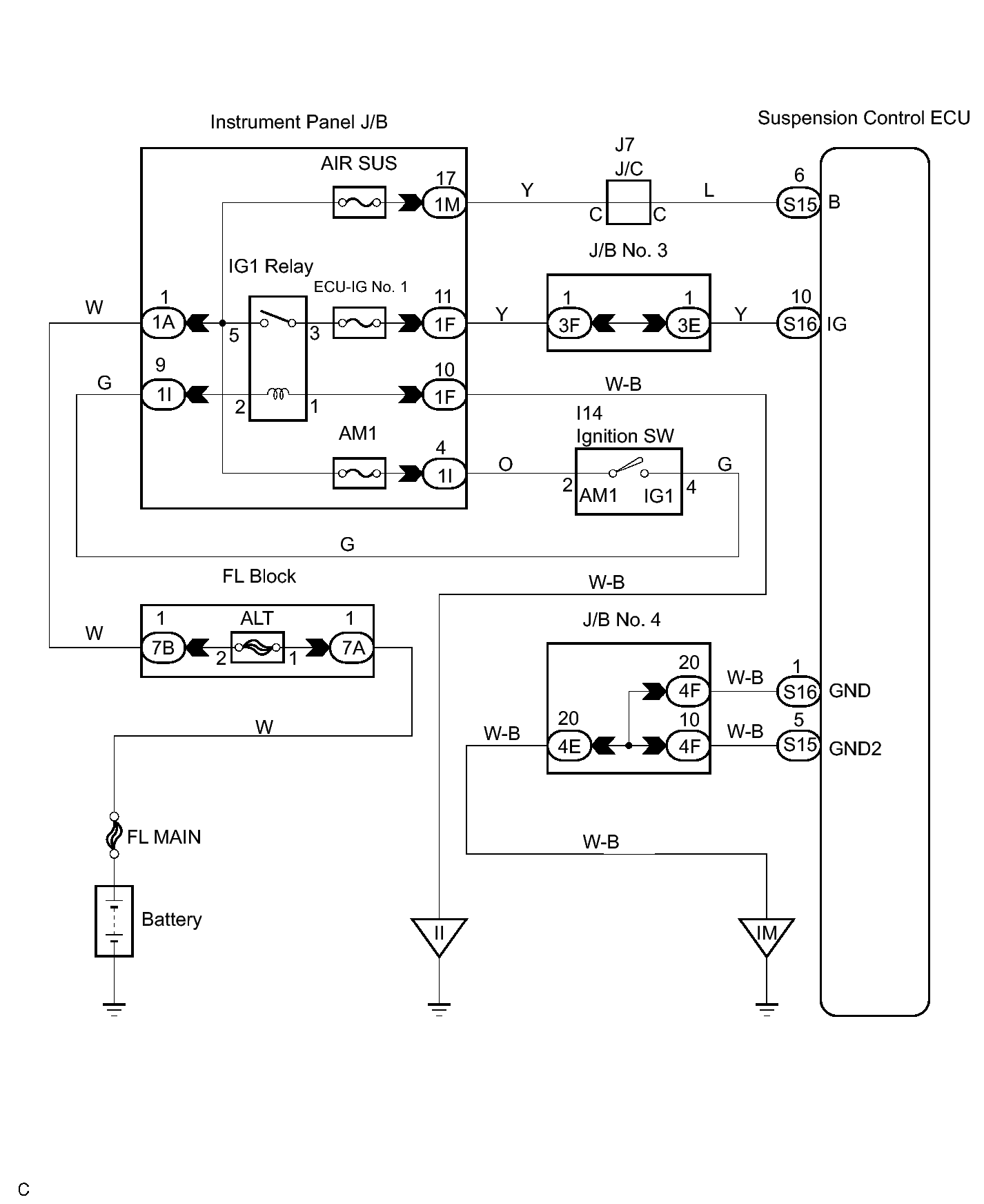

Fig 1: Identifying Power Source Circuit Diagram

GTY130193

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
