DTC C1744/44: Tank Solenoid Valve Circuit: Wiring Diagram

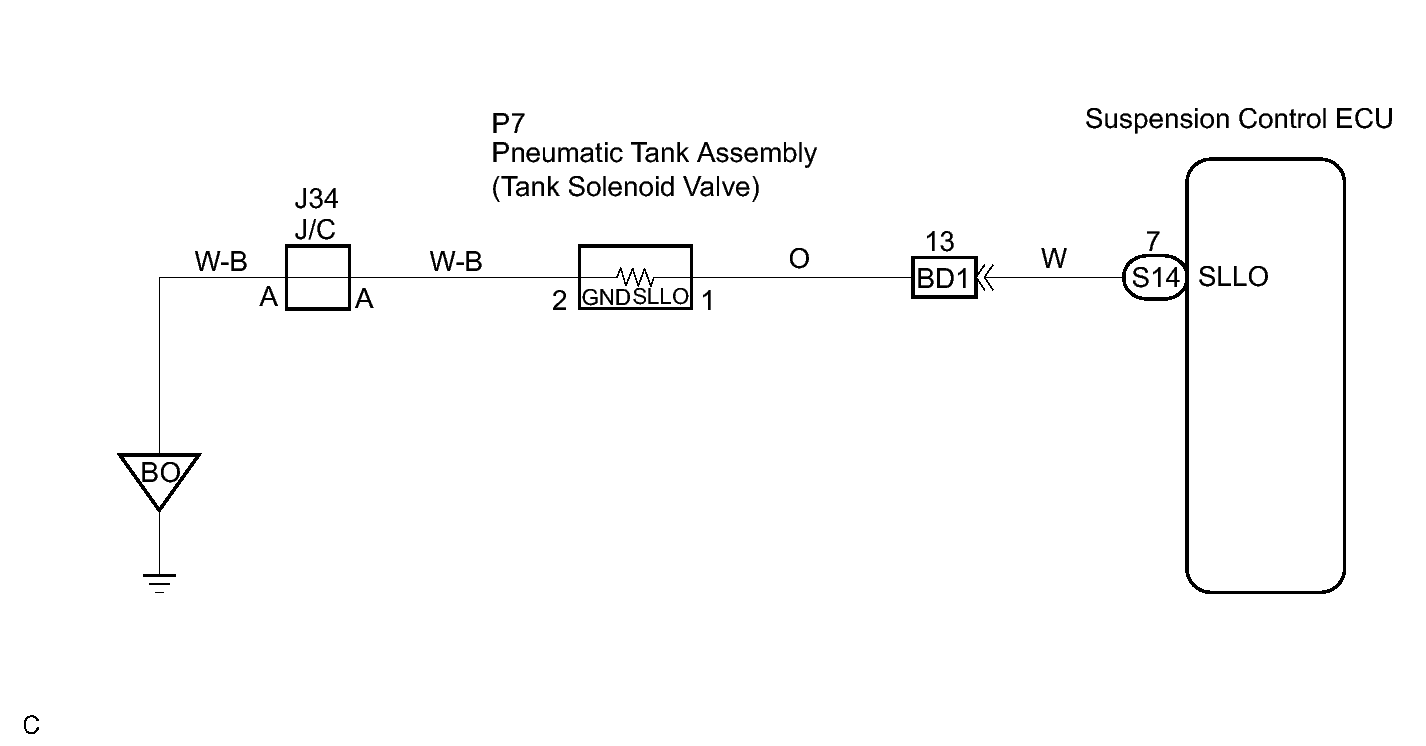

Fig 1: Identifying Tank Solenoid Valve Wiring Diagram

GTY154726

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
