DTC C1742/42: Height Control Compressor Circuit: Wiring Diagram

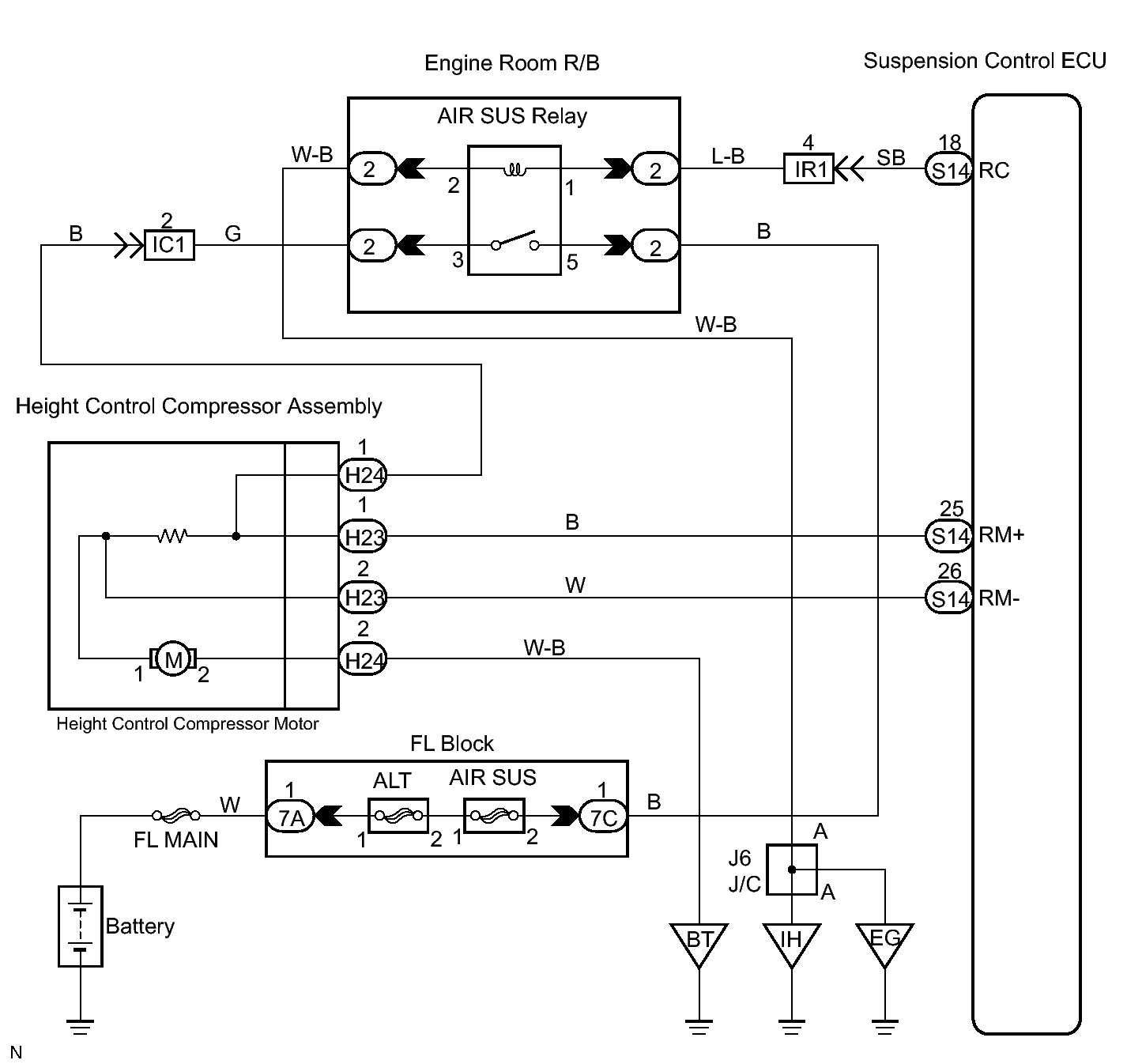

Fig 1: Identifying Height Control Compressor Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to DTC C1735/35. Refer to DTC C1735/35: Exhaust Solenoid Valve Circuit , C1737/31. Refer to DTC C1737/31: Right Front Height Control Solenoid Valve Circuit; DTC C1738/32: Left Front Height Control Solenoid Valve Circuit; DTC C1739/33: Right Rear Height Control Solenoid Valve Circuit; DTC C1740/34: Left Rear Height Control Solenoid Valve Circuit , C1744/44. Refer to DTC C1744/44: Tank Solenoid Valve Circuit .
