DTC C1741/41: Air Suspension Relay Circuit: Wiring Diagram

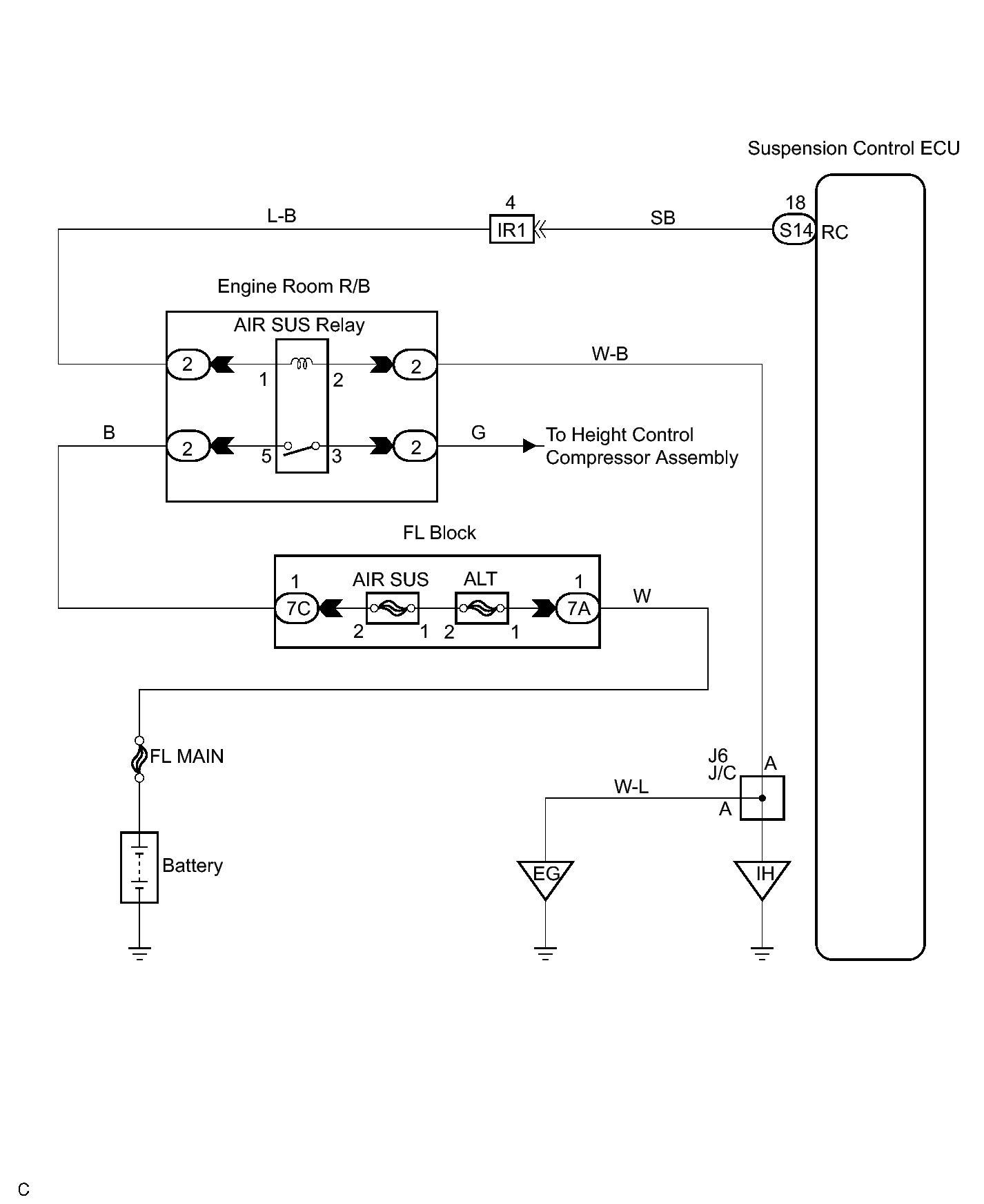

Fig 1: Identifying Air Suspension Relay Wiring Diagram

GTY154677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
