Terminals Of Ecu

  1. COMBINATION METER ASSEMBLY

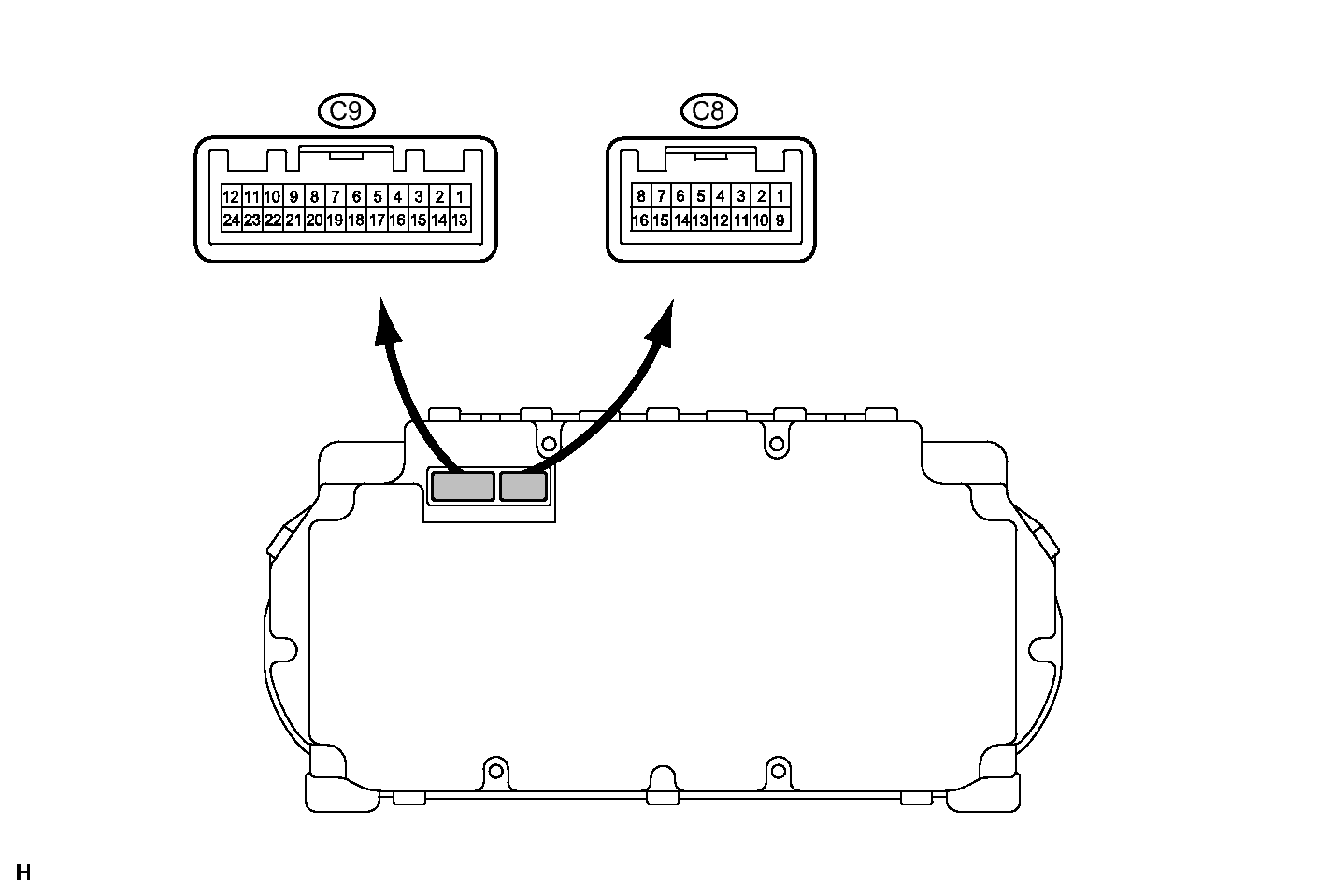

    Fig 1: Identifying Combination Meter Assembly Connector Terminals
    GTY150471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Terminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition
    C8-1 (POWER GND) - Body ground W-B - Body ground Ground Always Below 1 V
    C8-2 (ILL-) - Body ground L - Body ground Illumination signal Light control switch ON, light control rheostat position
    MAX → MIN    		 Pulse generation
    (See Fig 2 waveform 1)
    C8-3 (AIR SUS LOADING MODE) (*1) - Body ground G - Body ground AIR SUS LOADING MODE indicator light signal Turn the ignition switch to the ON position, AIR SUS LOADING MODE indicator light ON Below 1 V
    Turn the ignition switch to the ON position, AIR SUS LOADING MODE indicator light OFF 10 to 14 V
    C8-4 (CHECK ENGINE) - Body ground BR - Body ground Malfunction Indicator Lamp signal (CHECK ENGINE warning light) Turn the ignition switch to the ON position, MIL ON Below 2.5 V
    Turn the ignition switch to the ON position, MIL OFF 10 to 14 V
    C8-5 (MPX+) - Body ground Y - Body ground Communication signal Communication circuit -
    C8-6 (SPEED SIGNAL (4P)) - Body ground LG - Body ground Speed signal (Output) Turn the ignition switch to the ON position 10 to 14 V
    C8-7 (TACH) - Body ground W - Body ground Tachometer signal Engine running Pulse generation
    (See Fig 3 waveform 2)
    C8-8 (IG2) - Body ground GR - Body ground Ignition switch signal Turn the ignition switch OFF Below 1 V
    Turn the ignition switch to the ON position 10 to 14 V
    C8-9 (AIR SUS OFF) (*1) - Body ground W - Body ground AIR SUS OFF indicator light signal Turn the ignition switch to the ON position, AIR SUS OFF indicator light ON Below 1 V
    Turn the ignition switch to the ON position, AIR SUS OFF indicator light OFF 10 to 14 V
    C8-10 (AIR SUS LO) (*1) - Body ground GR - Body ground AIR SUS LO indicator light signal Turn the ignition switch to the ON position, AIR SUS LO indicator light ON Below 1 V
    Turn the ignition switch to the ON position, AIR SUS LO indicator light OFF 10 to 14 V
    C8-11 (AIR SUS N) (*1) - Body ground R - Body ground AIR SUS N indicator light signal Turn the ignition switch to the ON position, AIR SUS N indicator light ON Below 1 V
    Turn the ignition switch to the ON position, AIR SUS N indicator light OFF 10 to 14 V
    C8-12 (AIR SUS HI) (*1) - Body ground V - Body ground AIR SUS HI indicator light signal Turn the ignition switch to the ON position, AIR SUS HI indicator light ON Below 1 V
    Turn the ignition switch to the ON position, AIR SUS HI indicator light OFF 10 to 14 V
    C8-13 (TURN R) - Body ground P - Body ground TURN R indicator light signal TURN R indicator light OFF Below 1 V
    TURN R indicator light ON 10 to 14 V
    C8-14 (TURN L) - Body ground B - Body ground TURN L indicator light signal TURN L indicator light OFF Below 1 V
    TURN L indicator light ON 10 to 14 V
    C8-15 (ECU +B) - Body ground SB - Body ground Battery Always 10 to 14 V
    C8-16 (DOME +B) - Body ground O - Body ground Battery Always 10 to 14 V
    C9-1 (SIGNAL GND) - Body ground W-B - Body ground Ground Always Below 1 V
    C9-2 (FE) - Body ground SB - Body ground Fuel ground Always Below 1 V
    C9-4 (MPX-) - Body ground Y - Body ground Communication signal Communication circuit -
    C9-5 (CHARGE) - Body ground B - Body ground CHARGE warning light signal Turn the ignition switch to the ON position, CHARGE warning light OFF 10 to 14 V
    Turn the ignition switch to the ON position, CHARGE warning light ON Below 1 V
    C9-8 (BRAKE LEVEL) - Body ground W - Body ground BRAKE warning light signal (Brake fluid level) Turn the ignition switch to the ON position, brake fluid level (LO) Below 1 V
    Turn the ignition switch to the ON position, brake fluid level NORMAL 10 to 14 V
    C9-10 (H-LP LEVEL) - Body ground B - Body ground H-LP LEVEL indicator light signal Turn the ignition switch to the ON position, H-LP LEVEL indicator light ON Below 1 V
    Turn the ignition switch to the ON position, H-LP LEVEL indicator light OFF 10 to 14 V
    C9-11 (OIL PRESSURE) - Body ground Y - Body ground OIL PRESSURE warning light signal Turn the ignition switch to the ON position, OIL PRESSURE warning light ON Below 1 V
    Turn the ignition switch to the ON position, OIL PRESSURE warning light OFF 10 to 14 V
    C9-12 (AFS OFF) (*2) - Body ground L - Body ground AFS OFF indicator light signal Turn the ignition switch to the ON position, AFS OFF indicator light ON Below 1 V
    Turn the ignition switch to the ON position, AFS OFF indicator light OFF 10 to 14 V
    C9-13 (RE) - Body ground W - Body ground Rheostat switch signal (RE) Always Below 1 V
    C9-14 (RV) - Body ground O - Body ground Rheostat switch signal (VR) Rheostat is in the MIN. position Below 1 V
    Rheostat is in the MAX. position 4 to 6 V
    C9-15 (RL) - Body ground B - Body ground Rheostat switch signal (RL) On condition except for the below 4 to 6 V
    2 minutes or more have passed after turning the ignition switch off Below 1 V
    C9-16 (TCAN SW) - Body ground Y - Body ground Rheostat switch signal (Tail cancel switch) Turn the ignition switch to the ON position, turn the rheostat fully counterclockwise Below 1 V
    Turn the ignition switch to the ON position, turn the rheostat fully clockwise 4 to 6 V
    C9-17 (ODO/TRIP SW) - Body ground L - Body ground Rheostat switch signal (ODO/TRIP switch) Turn the ignition switch to the ON position, rheostat switch (ODO/TRIP switch) OFF 4 to 6 V
    Turn the ignition switch to the ON position, rheostat switch (ODO/TRIP switch) ON Below 1 V
    C9-18 (SPEED SIGNAL) - Body ground BR - Body ground Speed signal (Input) Turn the ignition switch to the ON position and turn the wheel slowly Pulse generation
    (See Fig 4 waveform 3)
    C9-19 (FUEL SENDER) - Body ground V - Body ground Fuel signal Fuel sender gauge is F position Below 1 V
    Fuel sender gauge is E position 4.5 to 6.7 V
    C9-22 (P-SEAT BELT) (*3) - Body ground R - Body ground Passenger seat belt signal Turn the ignition switch to the ON position, sit on the passenger seat, belt is unfastened Below 1 V ←→ 10 to 14 V
    Turn the ignition switch to the ON position, sit on the passenger seat, belt is fastened 10 to 14 V
    C9-23 (RR LIGHT) - Body ground G - Body ground RR LIGHT indicator light signal (Rear light failure) Turn the ignition switch to the ON position, RR LIGHT indicator light ON Below 1 V
    Turn the ignition switch to the ON position, RR LIGHT indicator light OFF 10 to 14 V
    C9-24 (WASHER LEVEL) - Body ground LG - Body ground WASHER warning light signal Turn the ignition switch to the ON position, WASHER warning light ON Below 1 V
    Turn the ignition switch to the ON position, WASHER warning light OFF 10 to 14 V

    *1: with Air Suspension

    *2: with AFS

    *3: with Navigation System

    1. Waveform 1 (Reference): Using oscilloscope:
      Fig 2: Identifying Oscilloscope Waveform 1 (Reference)
      GTY131352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Item Condition
      Tool setting 2 V/DIV., 1 ms/DIV.
      Vehicle condition Turn the ignition switch to the ON position

      HINT:

      Duty ratio changes as illumination becomes darker ("A" becomes longer).

    2. Waveform 2 (Reference): Using oscilloscope:
      Fig 3: Identifying Oscilloscope Waveform 2 (Reference)
      GTY141223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Item Condition
      Tool setting 5 V/DIV., 10 ms/DIV.
      Vehicle condition Engine idle speed
    3. Waveform 3 (Reference): Using oscilloscope:
      Fig 4: Identifying Oscilloscope Waveform 3 (Reference)
      GTY122569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Item Condition
      Tool setting 5 V/DIV., 20 ms/DIV.
      Vehicle condition Driving at approx. 20 km/h (12 mph)
  2. INTEGRATION CONTROL & PANEL ASSEMBLY (without NAVIGATION SYSTEM)
    Fig 5: Identifying C4 Connector Terminals
    GTY137046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Terminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition
    C4-1 (+B) - C4-7 (GND) O - W-B Battery Always 10 to 14 V
    C4-2 (ACC) - C4-7 (GND) W - W-B Ignition switch signal Turn the ignition switch off Below 1 V
    Turn the ignition switch to the ACC position 10 to 14 V
    C4-4 (LP) - C4-7 (GND) P - W-B Theft deterrent indicator signal Insert ignition key into the ignition key cylinder Below 1 V
    Remove ignition key from ignition key cylinder Pulse generation
    (Below 1 V ←→ 10 to 14 V)
    C4-5 (MPX+) - C4-7 (GND) BR - W-B Communication signal Communication circuit -
    C4-6 (P-AB) - C4-7 (GND) Y - W-B Passenger airbag indicator light signal Turn the ignition switch to the ON position, passenger airbag OFF indicator light ON Below 1 V
    Turn the ignition switch to the ON position, passenger airbag OFF indicator light OFF 10 to 14 V
    C4-7 (GND) - Body ground W-B - Body ground Ground Always Below 1 V
    C4-8 (ILL+) - C4-7 (GND) R - W-B Illumination signal Light control switch OFF Below 1 V
    Light control switch ON 10 to 14 V
    C4-9 (IG+) - C4-7 (GND) LG - W-B Ignition switch signal Turn the ignition switch off Below 1 V
    Turn the ignition switch to the ON position 10 to 14 V
    C4-11 (F) - C4-7 (GND) V - W-B Turn signal Turn signal indicator light OFF Below 1 V
    Turn signal indicator light ON 10 to 14 V
    C4-12 (MPX-) - C4-7 (GND) GR - W-B Communication signal Communication circuit -
    C4-13 (PAON) - C4-7 (GND) SB - W-B Passenger airbag indicator light signal Turn the ignition switch to the ON position, passenger airbag ON indicator light ON Below 1 V
    Turn the ignition switch to the ON position, passenger airbag ON indicator light OFF 10 to 14 V
    C4-14 (ILL-) - C4-7 (GND) B - W-B Illumination signal Headlight switch ON, light control rheostat is in the MIN. position Below 1 V
    Headlight switch ON, light control rheostat is in the MAX. position Pulse generation
    (See Fig 6 waveform 1)
    1. Waveform 1 (Reference): Using oscilloscope:
      Fig 6: Identifying Oscilloscope Waveform 1 (Reference)
      GTY131352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Item Condition
      Tool setting 2 V/DIV., 1 ms/DIV.
      Vehicle condition Turn the ignition switch to the ON position

      HINT:

      Duty ratio changes as illumination becomes darker ("A" becomes longer).

  3. COMBINATION METER INNER CIRCUIT

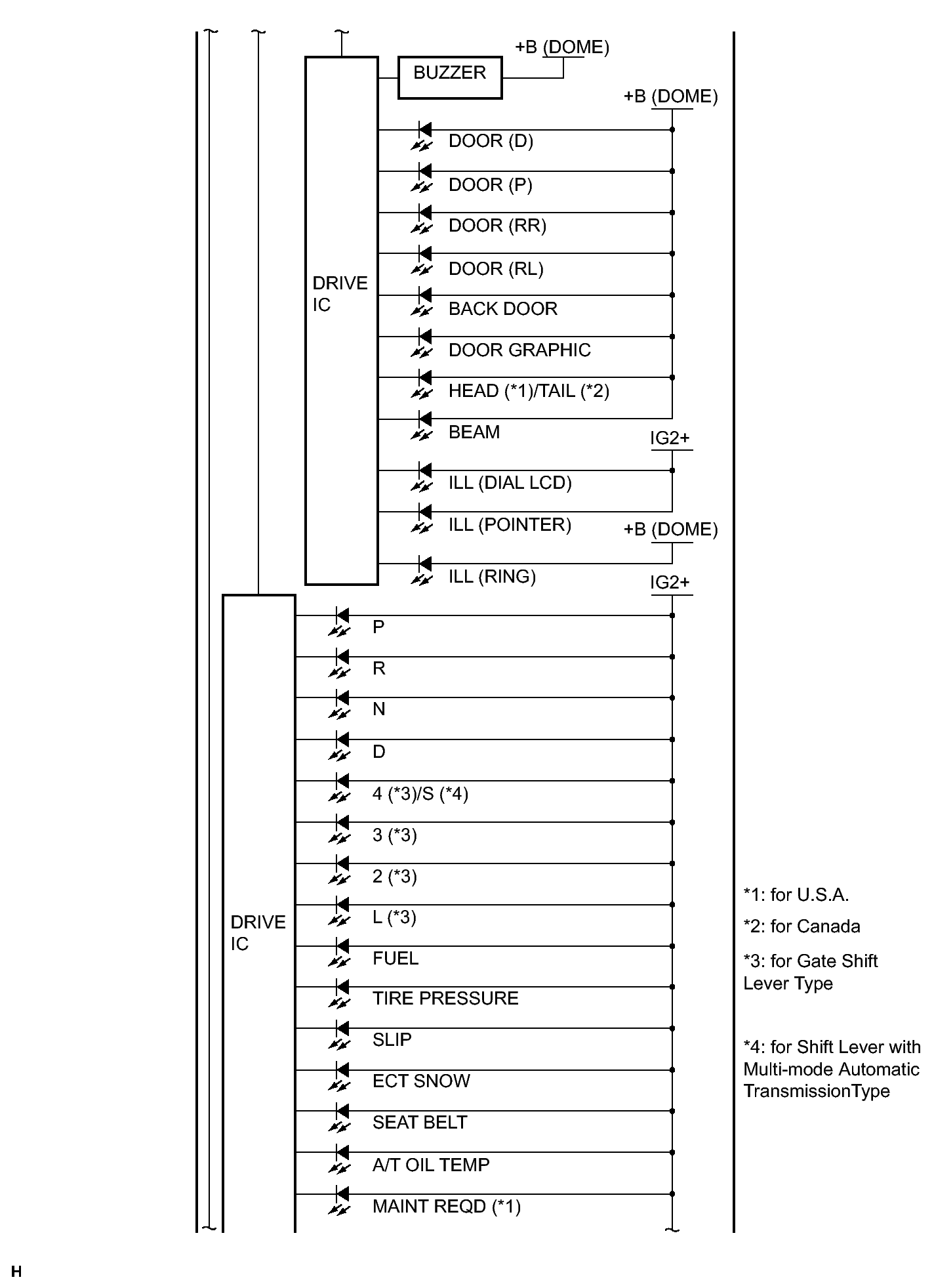

    Fig 7: Combination Meter Inner Circuit Diagram (1 Of 3)
    GTY141363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

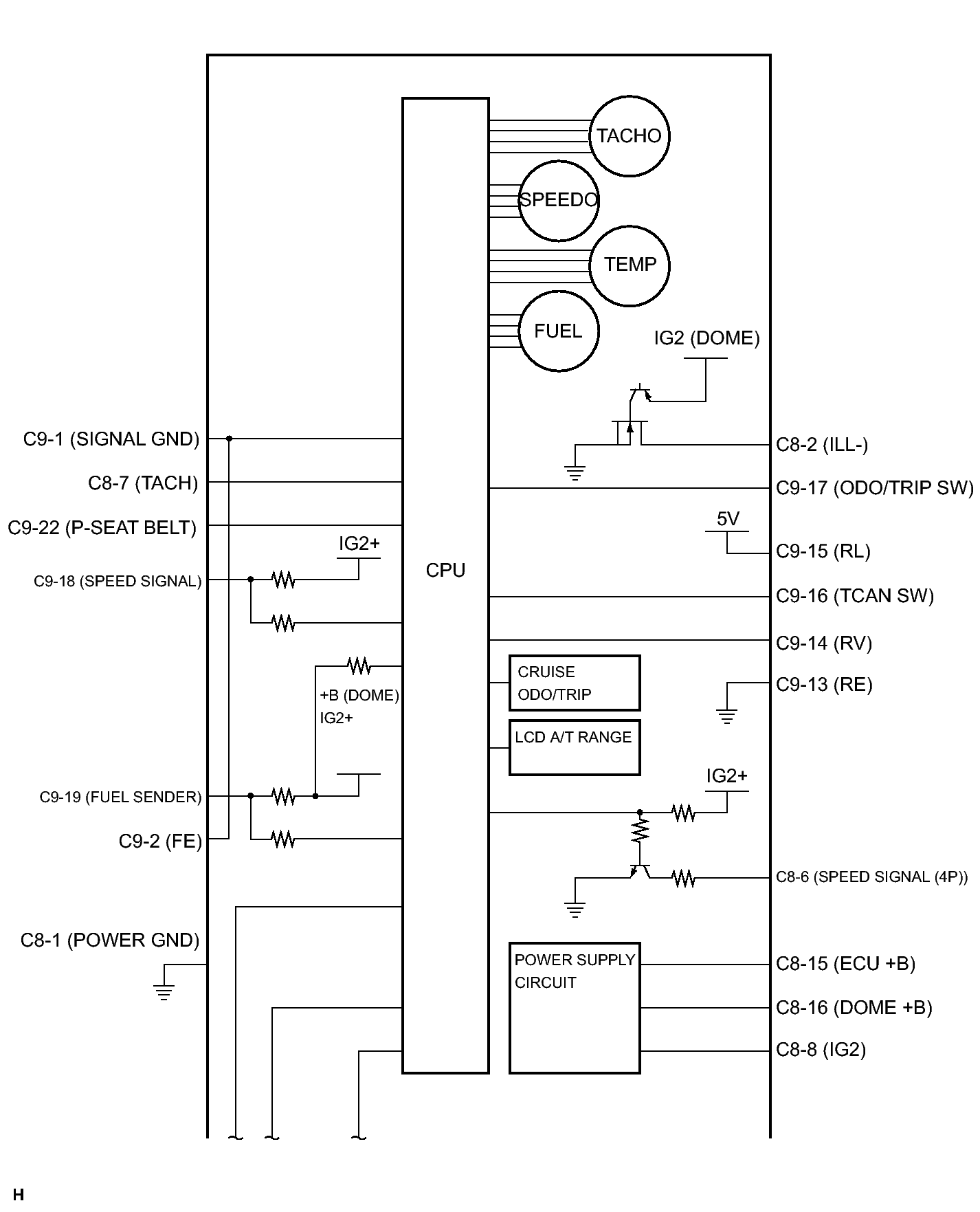

    Fig 8: Combination Meter Inner Circuit Diagram (2 Of 3)
    GTY122037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

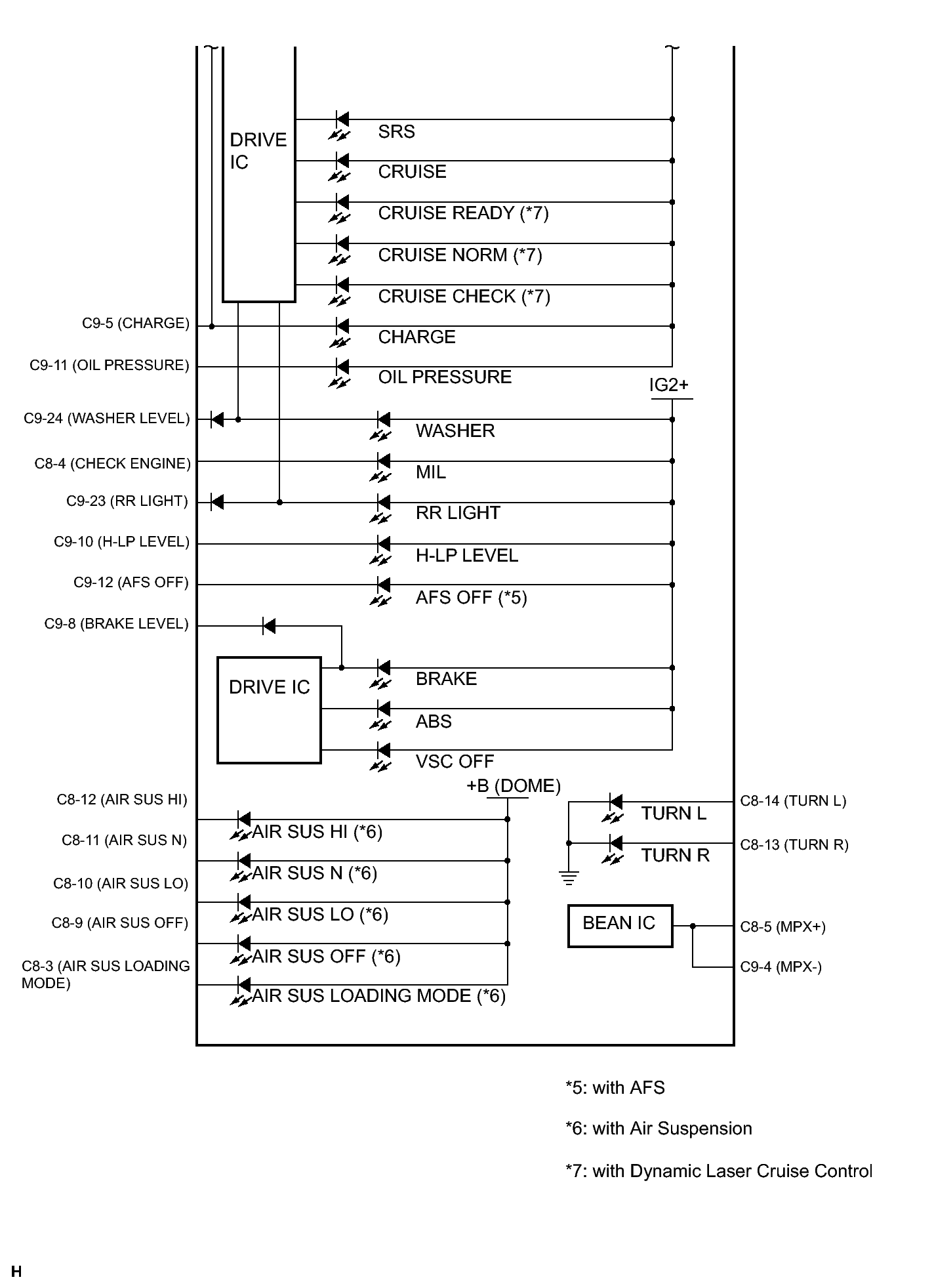

    Fig 9: Combination Meter Inner Circuit Diagram (3 Of 3)
    GTY130212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Terminal No. (Symbols) Wire harness side
    C8 1 (POWER GND) Ground
    2 (ILL-) PANEL Fuse
    3 (AIR SUS LOADING MODE) Suspension Control ECU (*1)
    4 (CHECK ENGINE) ECM
    5 (MPX+) Ignition Control & Panel Assembly (*2)/Gateway ECU (*3)
    6 (SPEED SIGNAL (4P)) Each part that uses speed signal
    7 (TACH) ECM
    8 (IG2) GAUGE 2 Fuse
    9 (AIR SUS OFF) Suspension Control ECU (*1)
    10 (AIR SUS LO) Suspension Control ECU (*1)
    11 (AIR SUS N) Suspension Control ECU (*1)
    12 (AIR SUS HI) Suspension Control ECU (*1)
    13 (TURN R) Turn Signal Flasher Relay
    14 (TURN L) Turn Signal Flasher Relay
    15 (ECU +B) ECU-B Fuse
    16 (DOME +B) DOME Fuse
    C9 1 (SIGNAL GND) Ground
    2 (FE) Fuel Sender Gauge Assembly
    3 -
    4 (MPX-) Center Airbag Sensor Assembly
    5 (CHARGE) Alternator L Terminal
    6 -
    7 -
    8 (BRAKE LEVEL) Brake Fluid Level Warning Switch
    9 -
    10 (H-LP LEVEL) Headlight Beam Level Control ECU
    11 (OIL PRESSURE) Engine Oil Pressure Switch
    12 (AFS OFF) AFS ECU (*4)
    13 (RE) Light Control Rheostat
    14 (RV) Light Control Rheostat
    15 (RL) Light Control Rheostat
    16 (TCAN SW) Light Control Rheostat
    17 (ODO/TRIP SW) Light Control Rheostat
    18 (SPEED SIGNAL) Skid Control ECU
    19 (FUEL SENDER) Fuel Sender Gauge Assembly
    20 -
    21 -
    22 (P-SEAT BELT) Multi Display (*3)
    23 (RR LIGHT) Luggage Room J/B ECU
    24 (WASHER LEVEL) Washer Level Warning Switch

    *1: with Air Suspension

    *2: without Navigation System

    *3: with Navigation System

    *4: with AFS
