Parts Location: Illustration

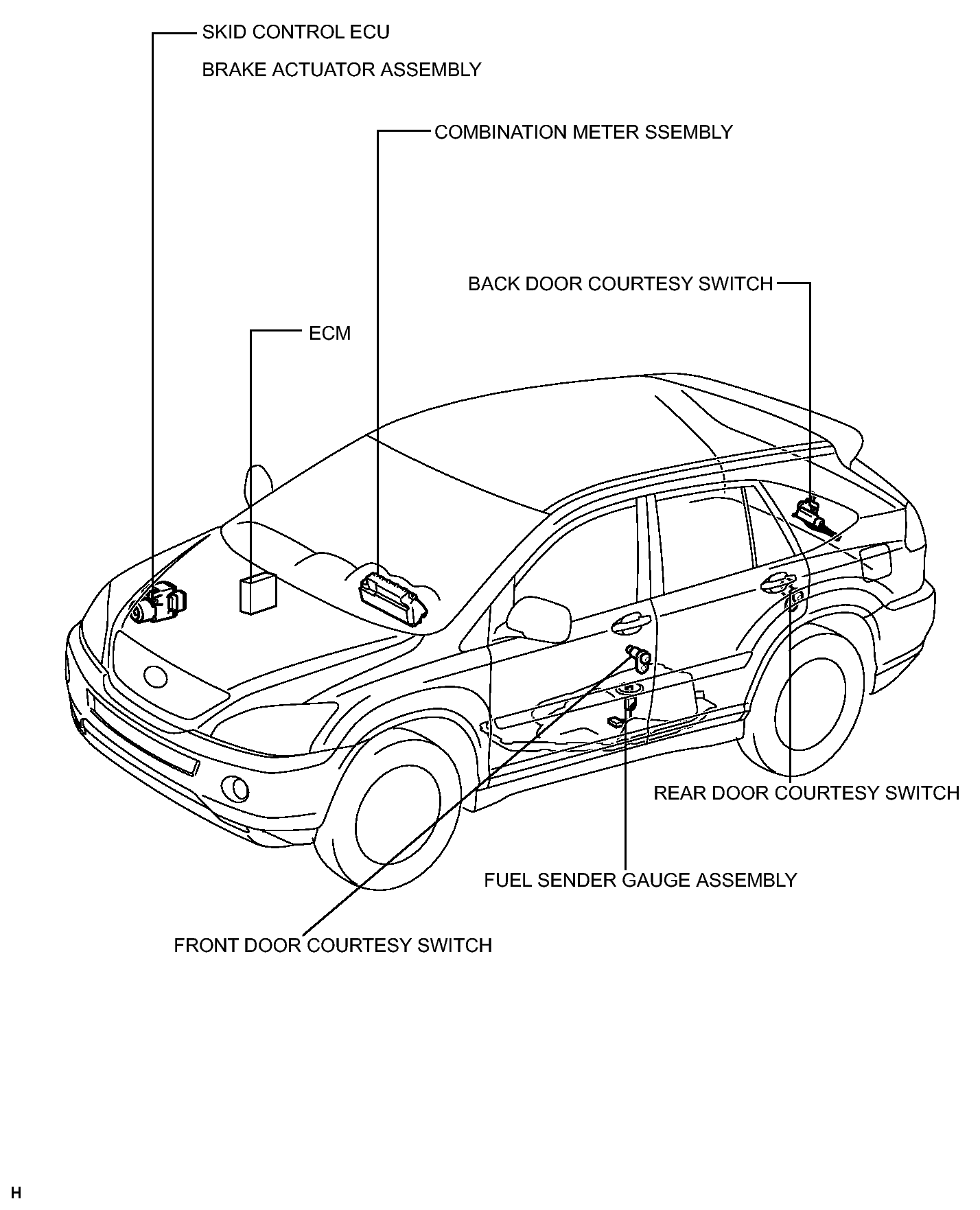

Fig 1: Identifying Meter/Gauge System Components (1 Of 2)
GTY152073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

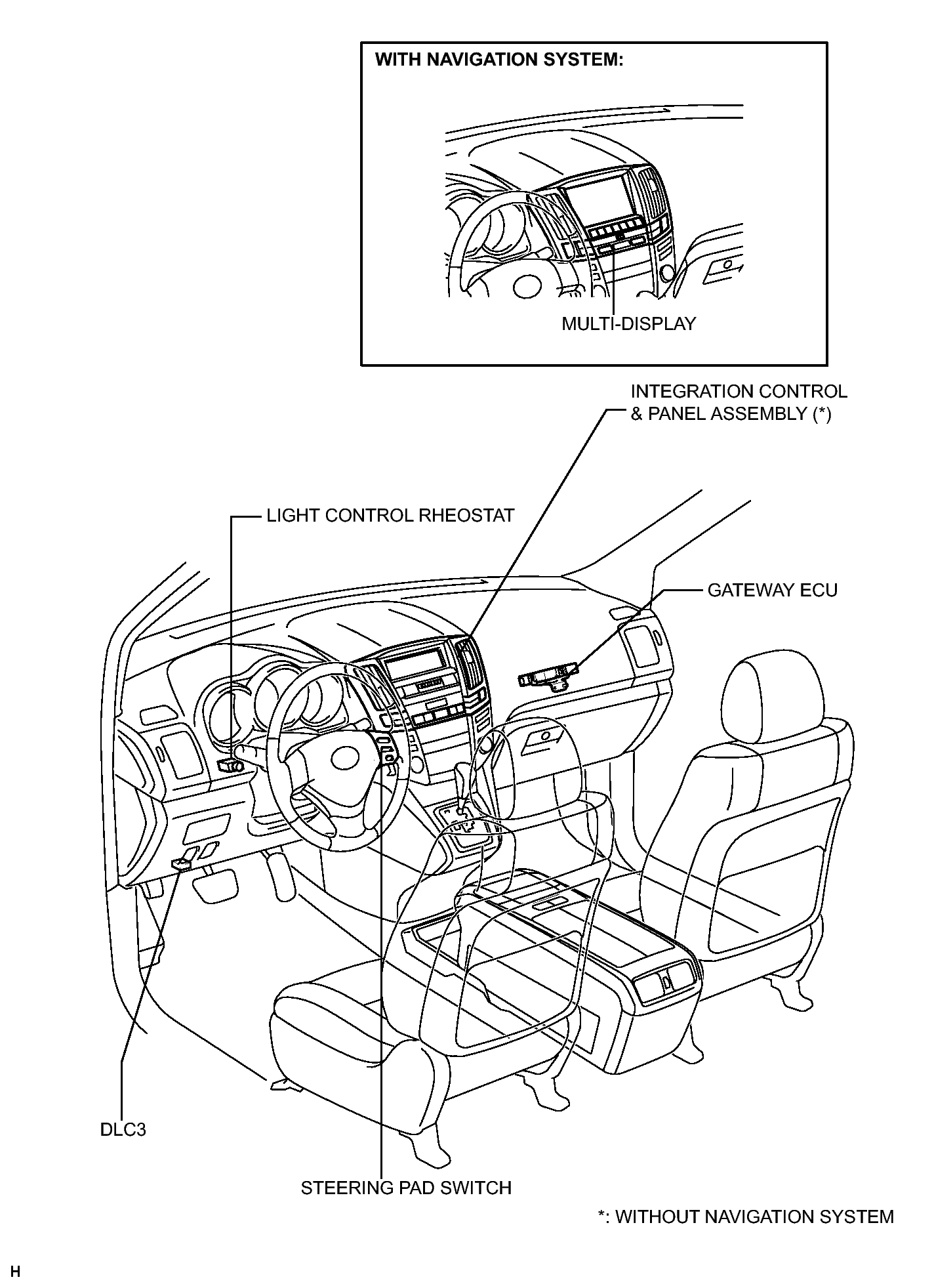

Fig 1: Identifying Meter/Gauge System Components (2 Of 2)
GTY152074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
