Operating Light Control Rheostat does not Change Light Brightness: Wiring Diagram

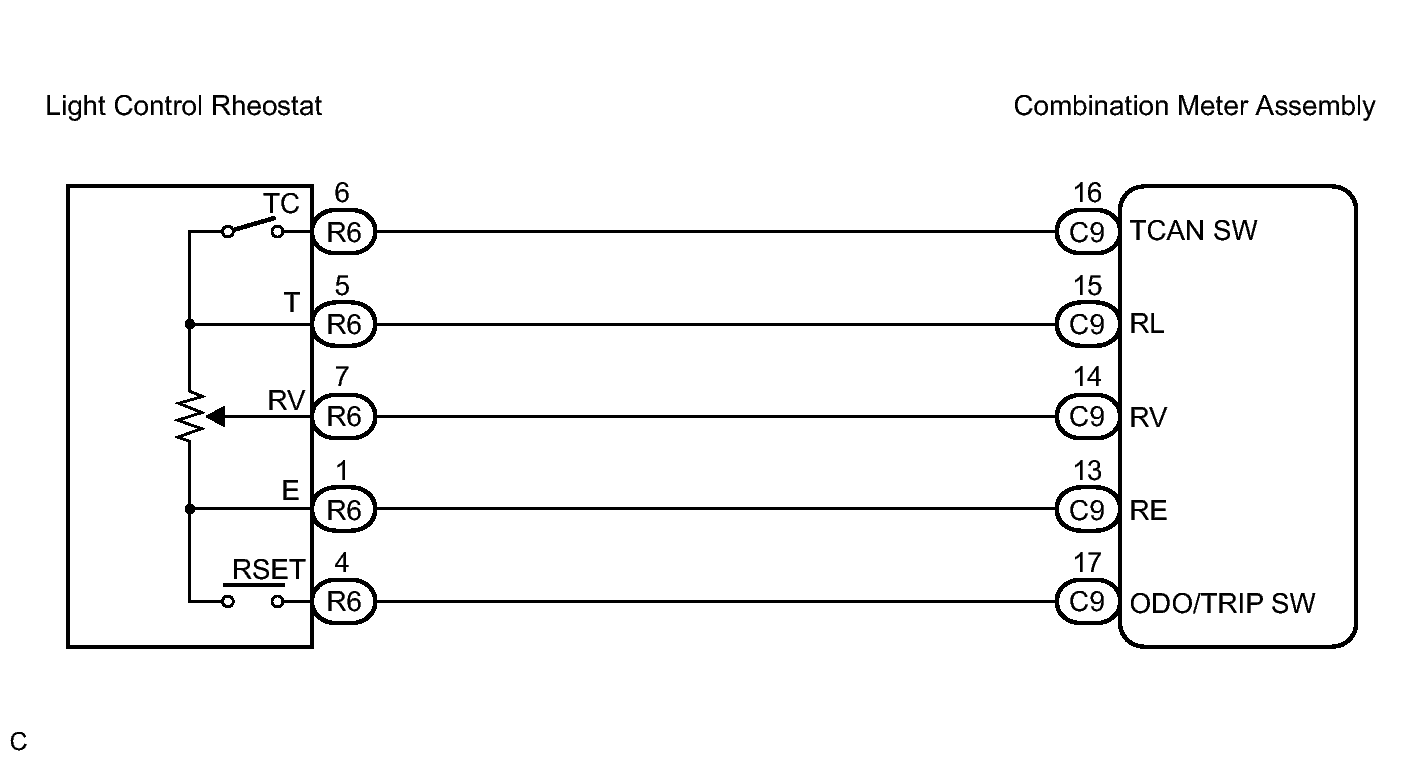

Fig 1: Identifying Operating Light Control Rheostat Wiring Diagram
GTY131148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
