Fuel Receiver Gauge Malfunction: Wiring Diagram

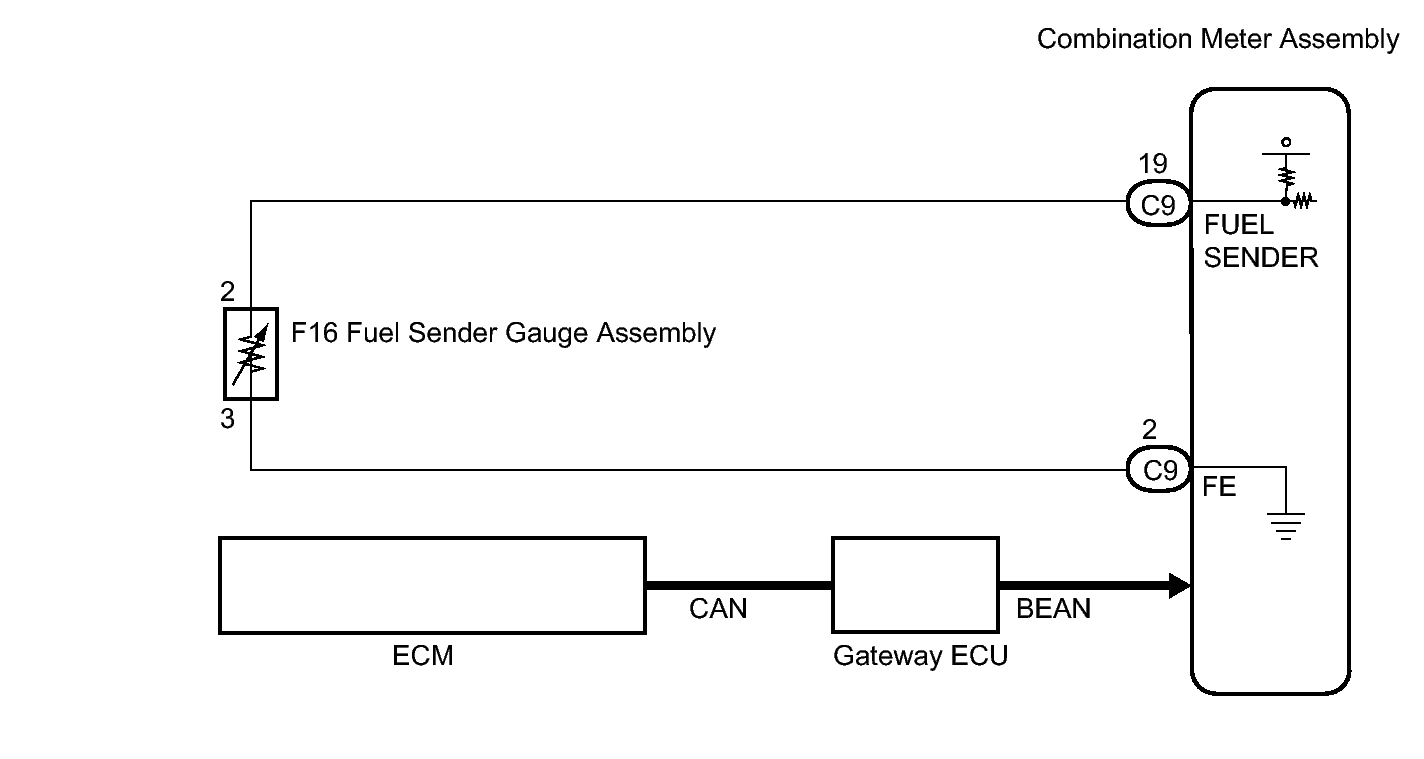

Fig 1: Identifying Fuel Sender Gauge Wiring Diagram

GTY122203

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
