Entire Combination Meter does not Operate: Wiring Diagram

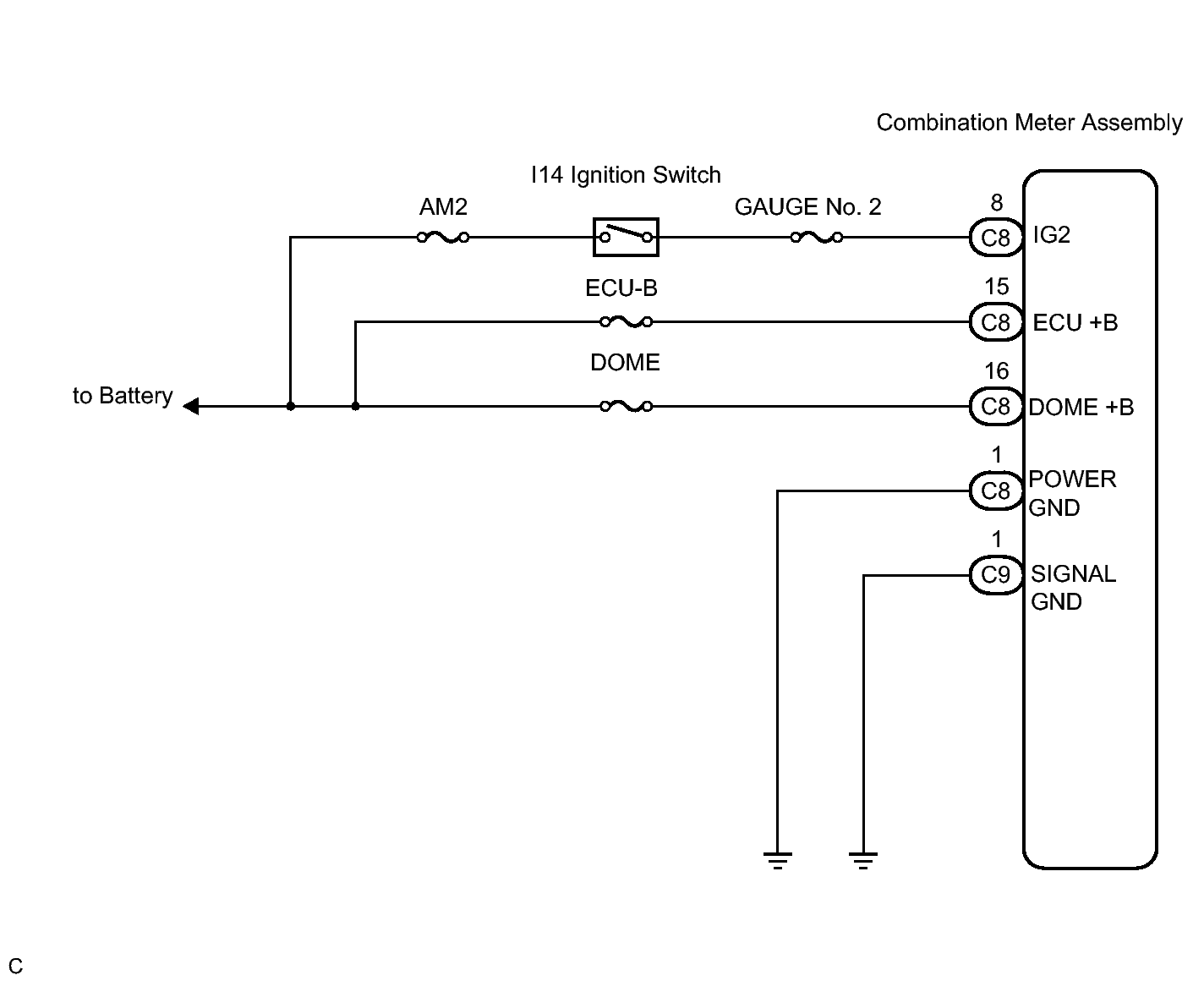

Fig 1: Identifying Combination Meter Wiring Diagram

GTY126700

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
