Instrument Panel Safety Pad: Components: Illustration

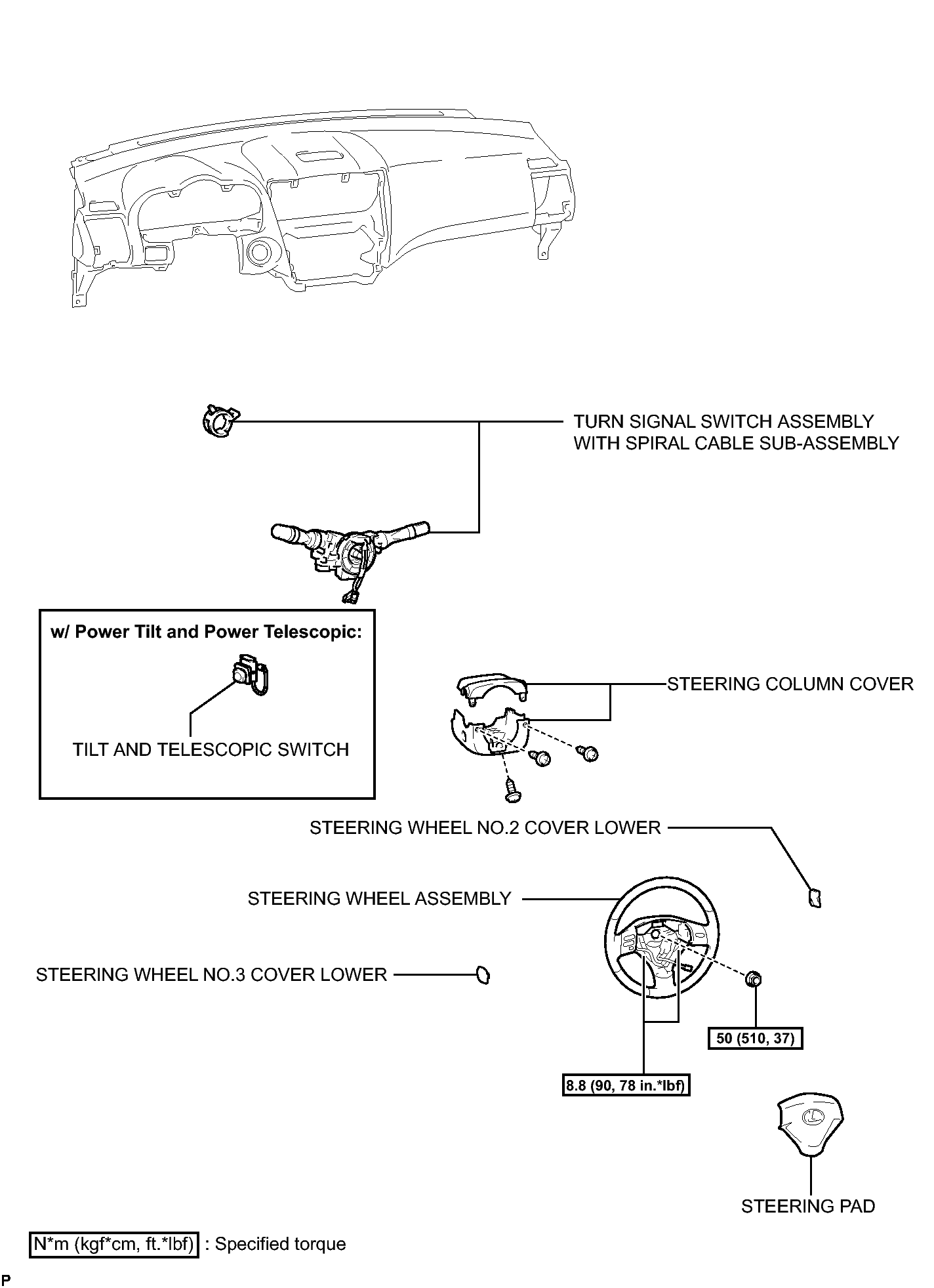

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

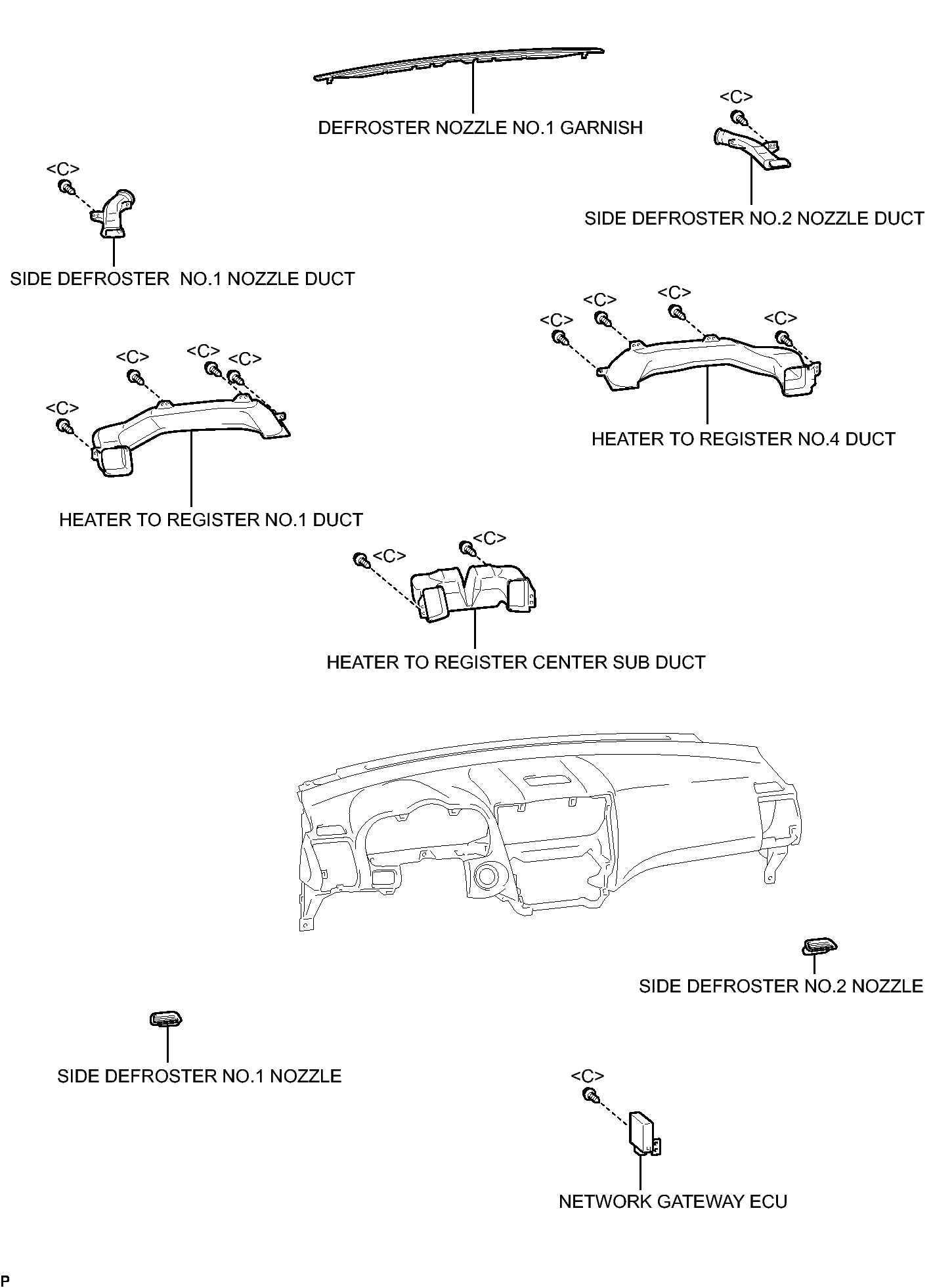

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

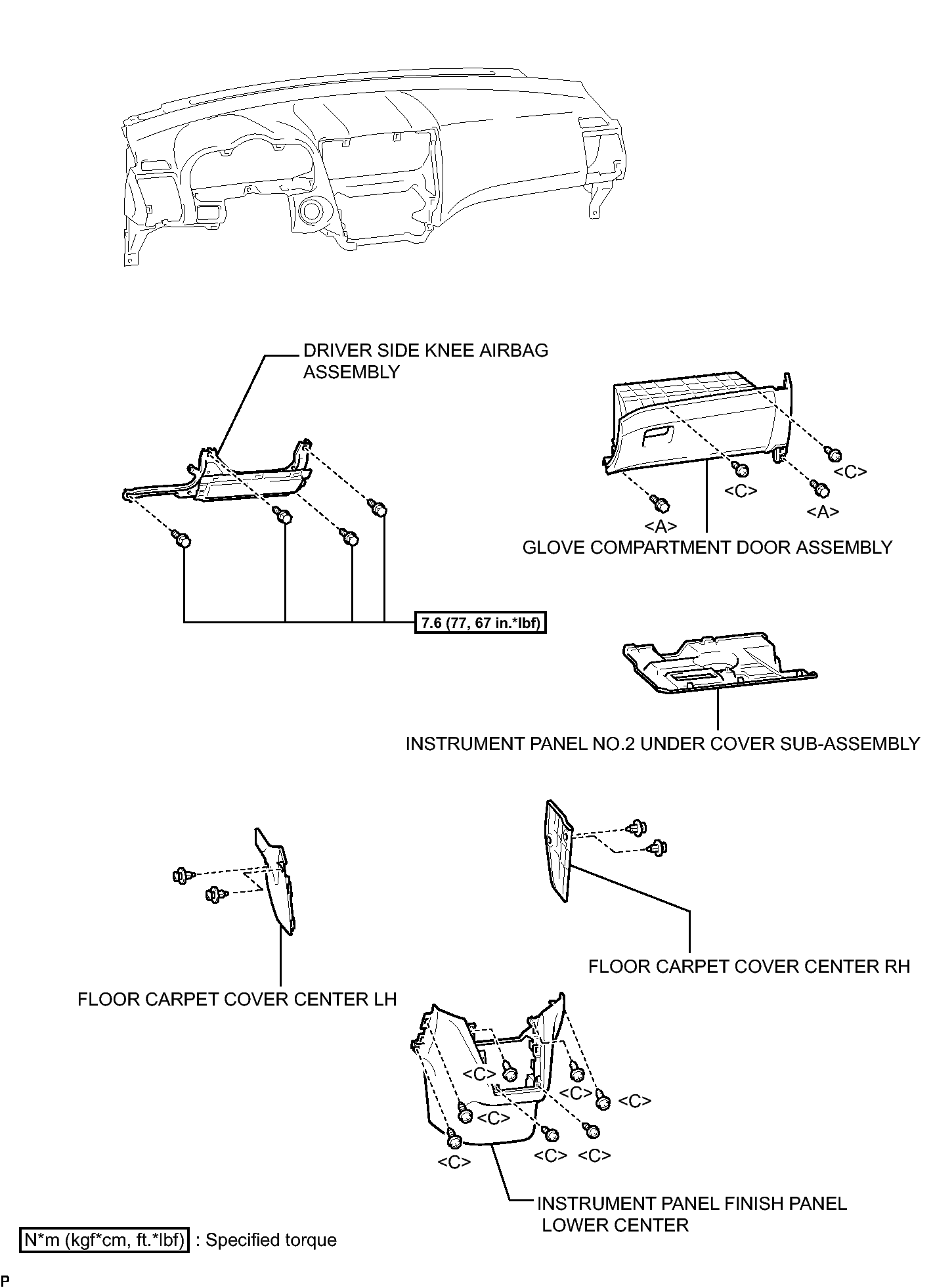

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

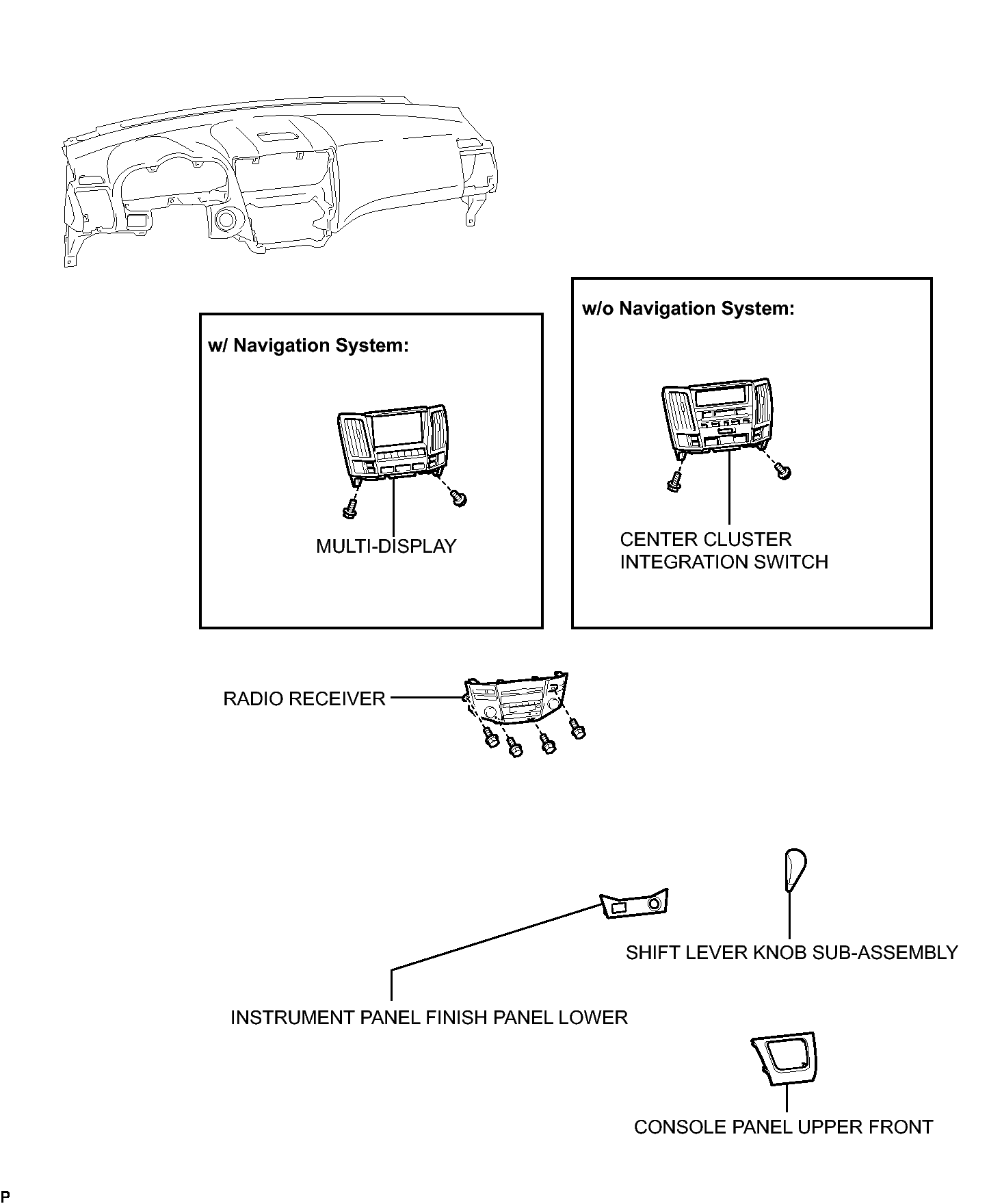

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

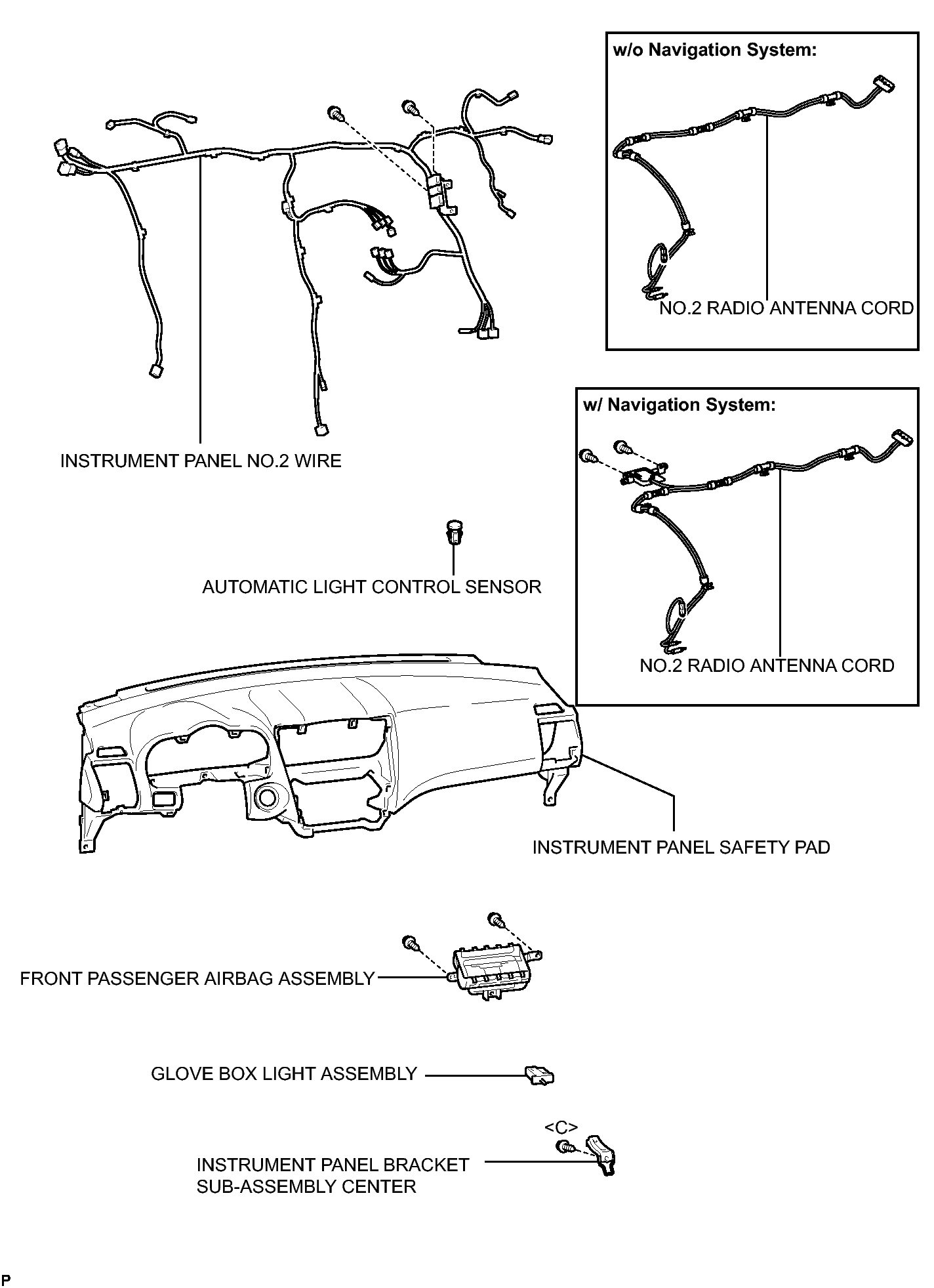

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components With Torque Specifications (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

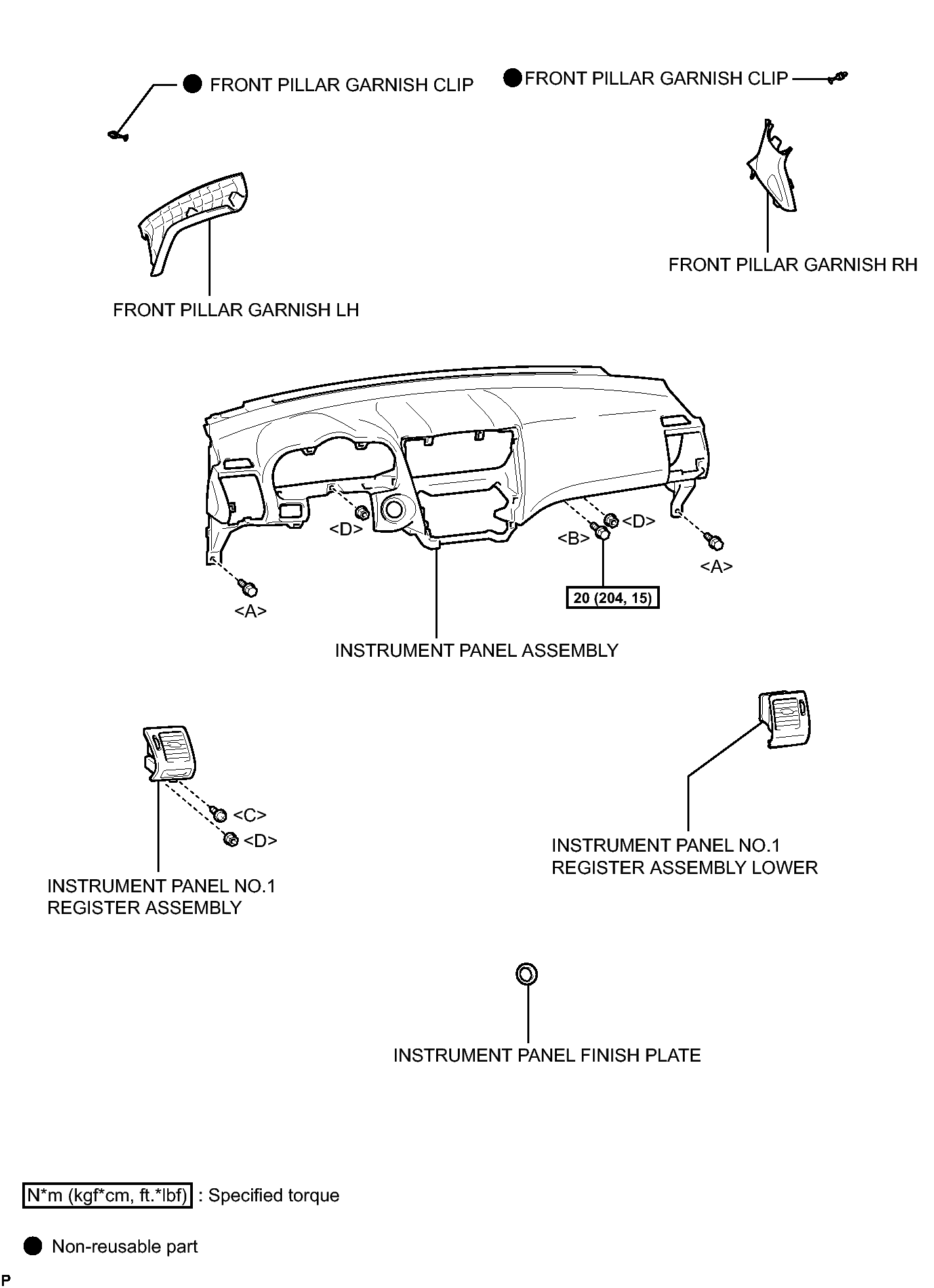

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (6 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

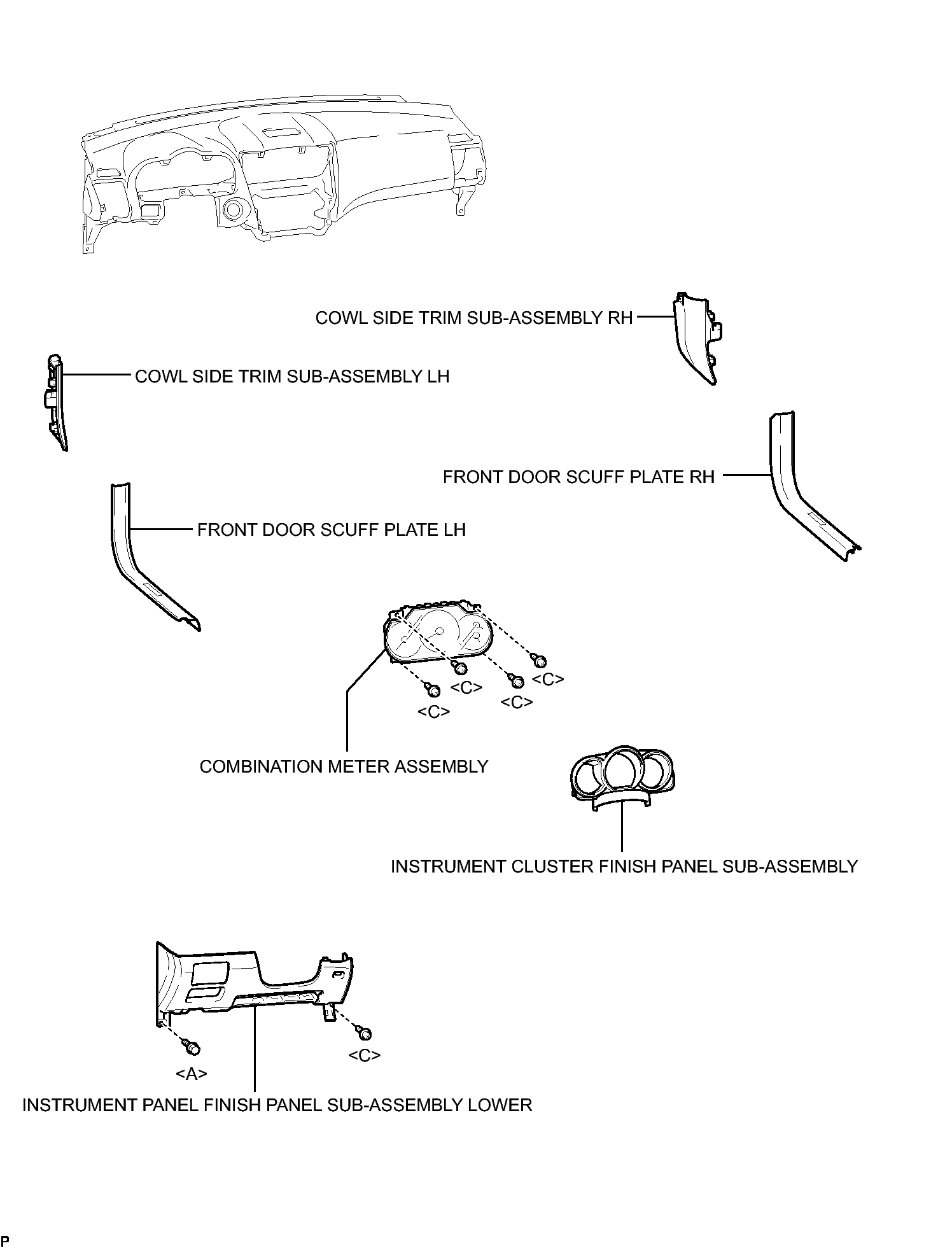

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (7 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

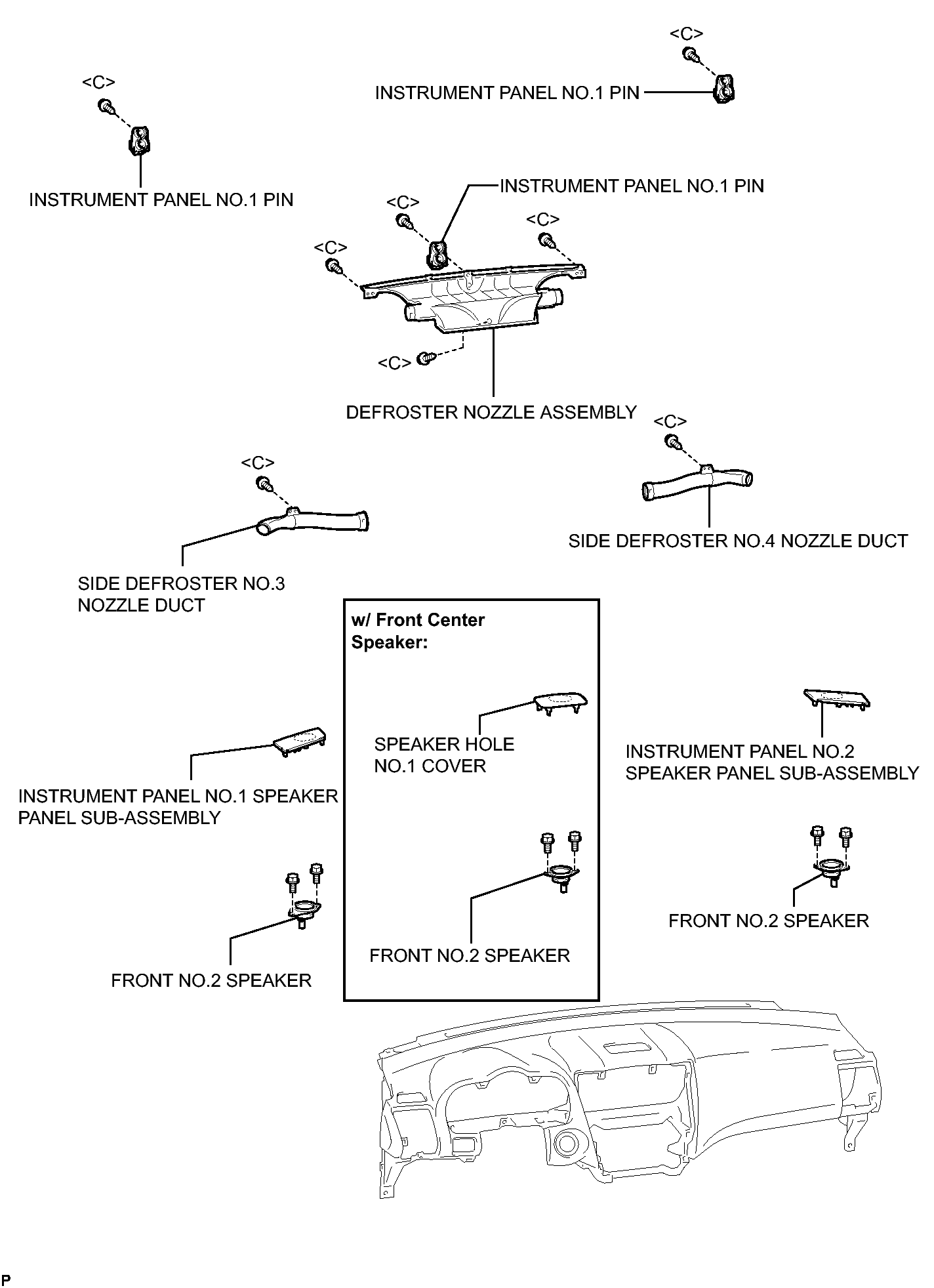

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (8 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
