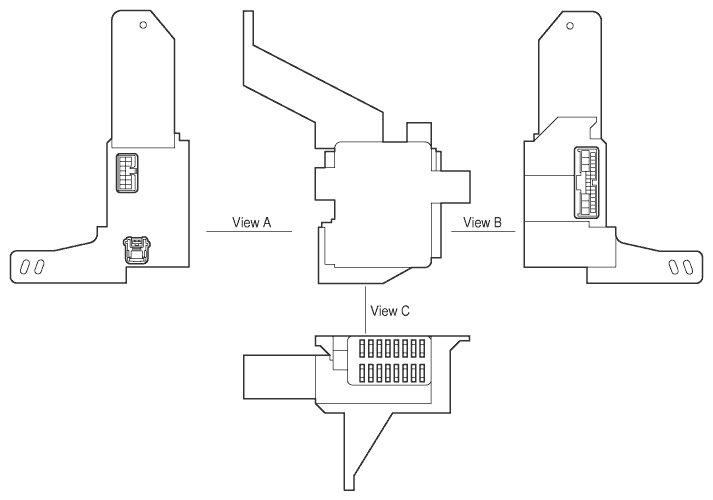

Cowl Side Junction Block RH Assembly
Cowl Side Right (See Figure)

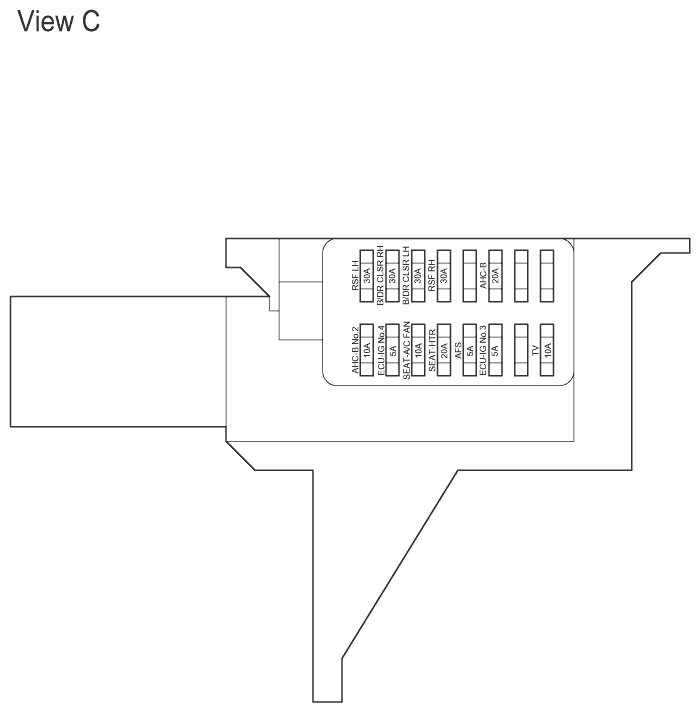

Cowl Side J/B RH View C Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 5A | AFS | Adaptive Front-Lighting System |
| 5A | ECU-IG No. 3 | Adaptive Front-Lighting System |
| Dynamic Radar Cruise Control | ||
| 5A | ECU-IG No. 4 | Active Height Control Suspension and Adaptive Variable Suspension |
| Power Back Door | ||
| Rear Power Seat Control System (for Rear No. 2 Seat with Folding-Up Function) | ||
| Rear Wiper and Washer | ||
| Tire Pressure Warning System | ||
| VGRS System | ||
| 10A | AHC-B No. 2 | Active Height Control Suspension and Adaptive Variable Suspension |
| 10A | SEAT-A/C FAN | Climate Control Seat (Driver's Seat and Front Passenger's Seat) |
| 10A | TV | Audio System, Multi-Display, LEXUS Navigation System and Parking Assist (Rear View Monitor) |
| 20A | AHC-B | Active Height Control Suspension and Adaptive Variable Suspension |
| 20A | SEAT-HTR | Seat Heater (Front) |
| 30A | B/DR CLSR LH | Power Back Door |
| 30A | B/DR CLSR RH | Power Back Door |
| 30A | RSF LH | Rear Power Seat Control System (for Rear No. 2 Seat with Folding-Up Function) |
| 30A | RSF RH | Rear Power Seat Control System (for Rear No. 2 Seat with Folding-Up Function) |
