Cowl Side Junction Block LH Assembly Inner Circuit

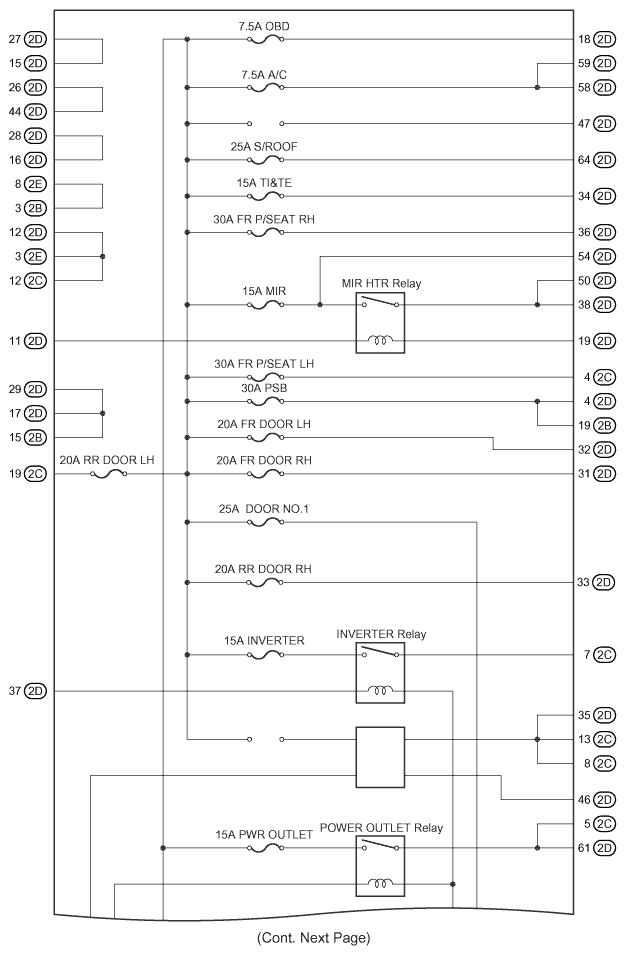

Fig 1: Cowl Side J/B LH Assembly Inner Circuit Diagram & Relays (1 Of 3)
G07600527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COWL SIDE J/B LH INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
MIR HTR Relay
Inverter Relay
Power Outlet Relay

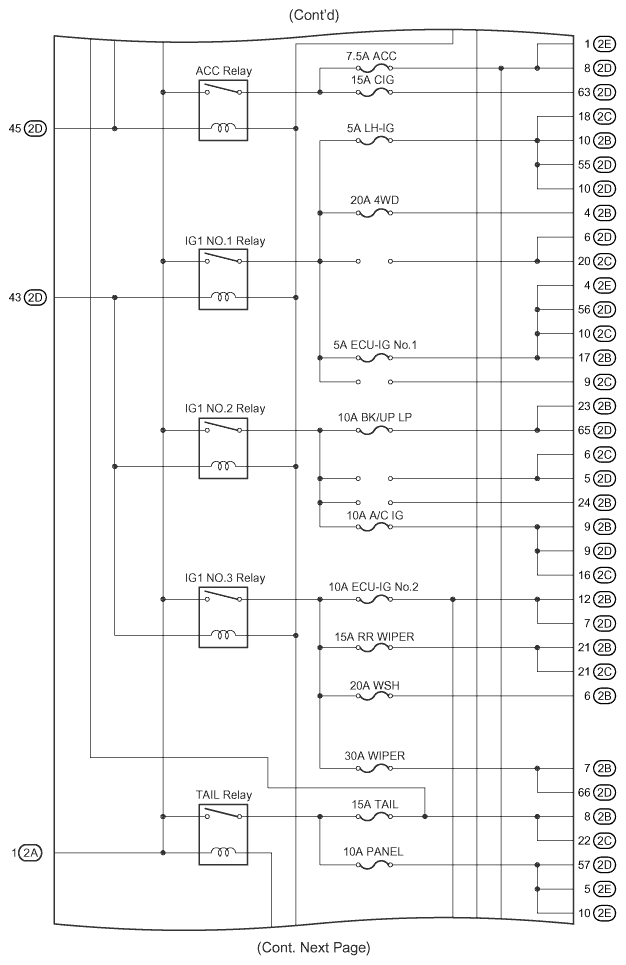

Fig 2: Cowl Side J/B LH Assembly Inner Circuit Diagram & Relays (2 Of 3)
G07600528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COWL SIDE J/B LH INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
ACC Relay
IG1 No. 1 Relay
IG1 No. 2 Relay
IG1 No. 3 Relay
Tail Relay

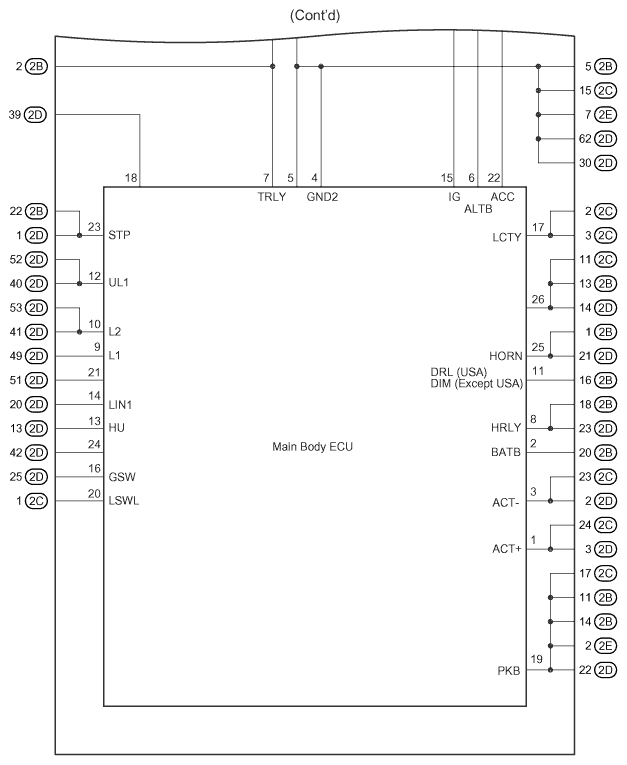

Fig 3: Cowl Side J/B LH Assembly Inner Circuit Diagram (3 Of 3)
G07600529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
