Hydraulic Brake Booster: Components: Illustration

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specification (1 Of 4)
GTY130928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

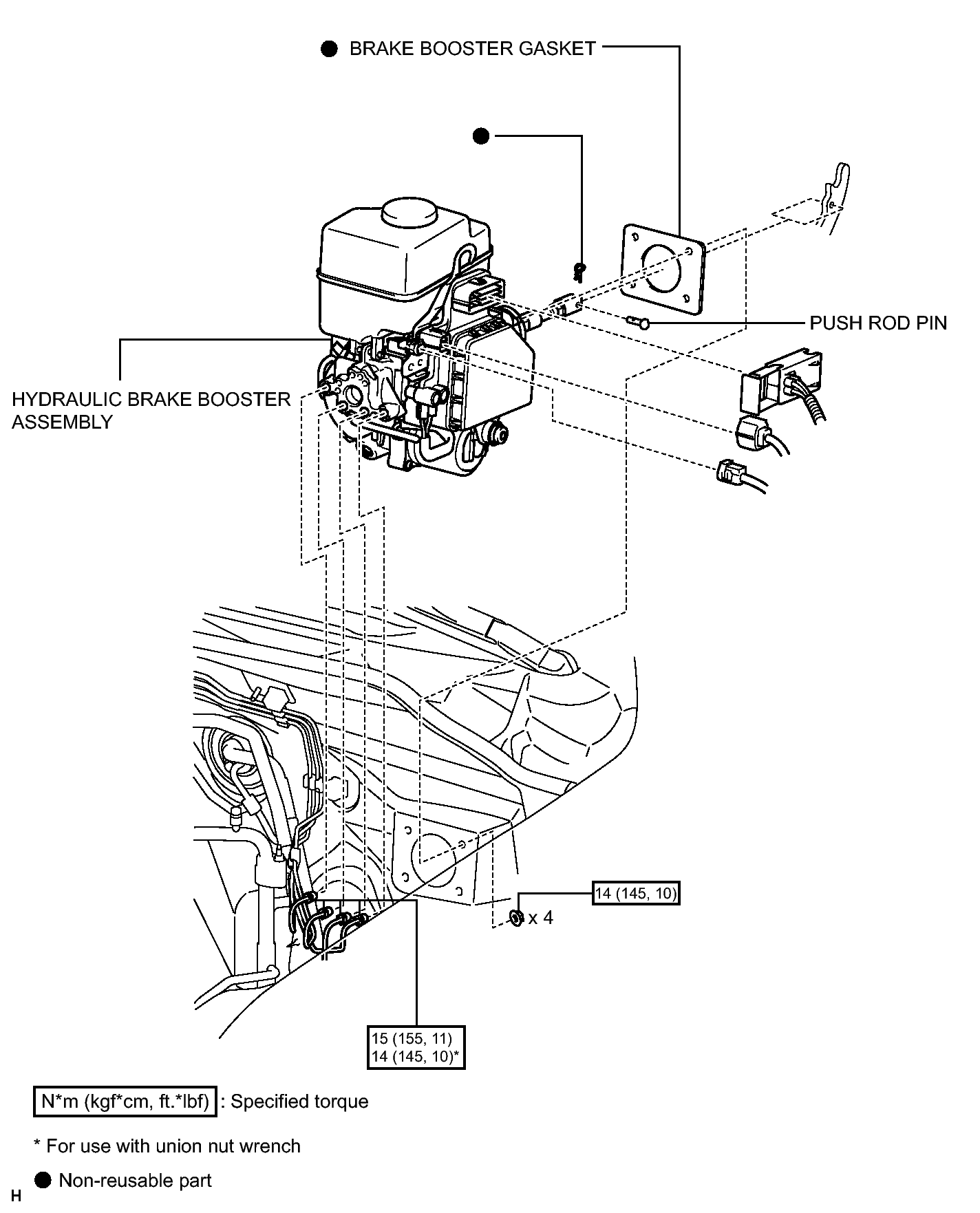

Fig 1: Identifying Hydraulic Brake Booster Replacement Components With Torque Specifications (2 Of 4)
GTY109663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

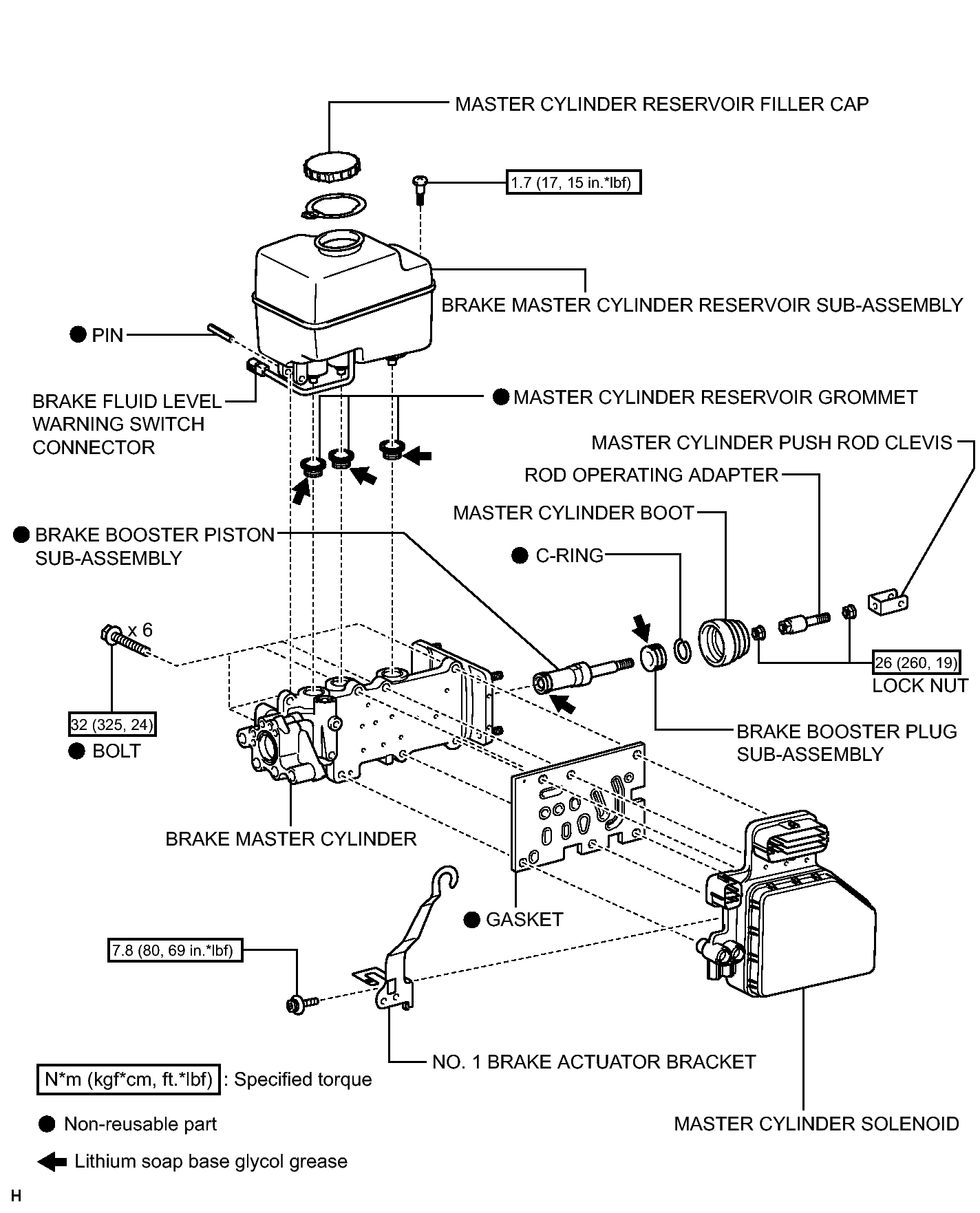

Fig 1: Identifying Hydraulic Brake Booster Replacement Components With Torque Specifications (3 Of 4)
GTY134999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

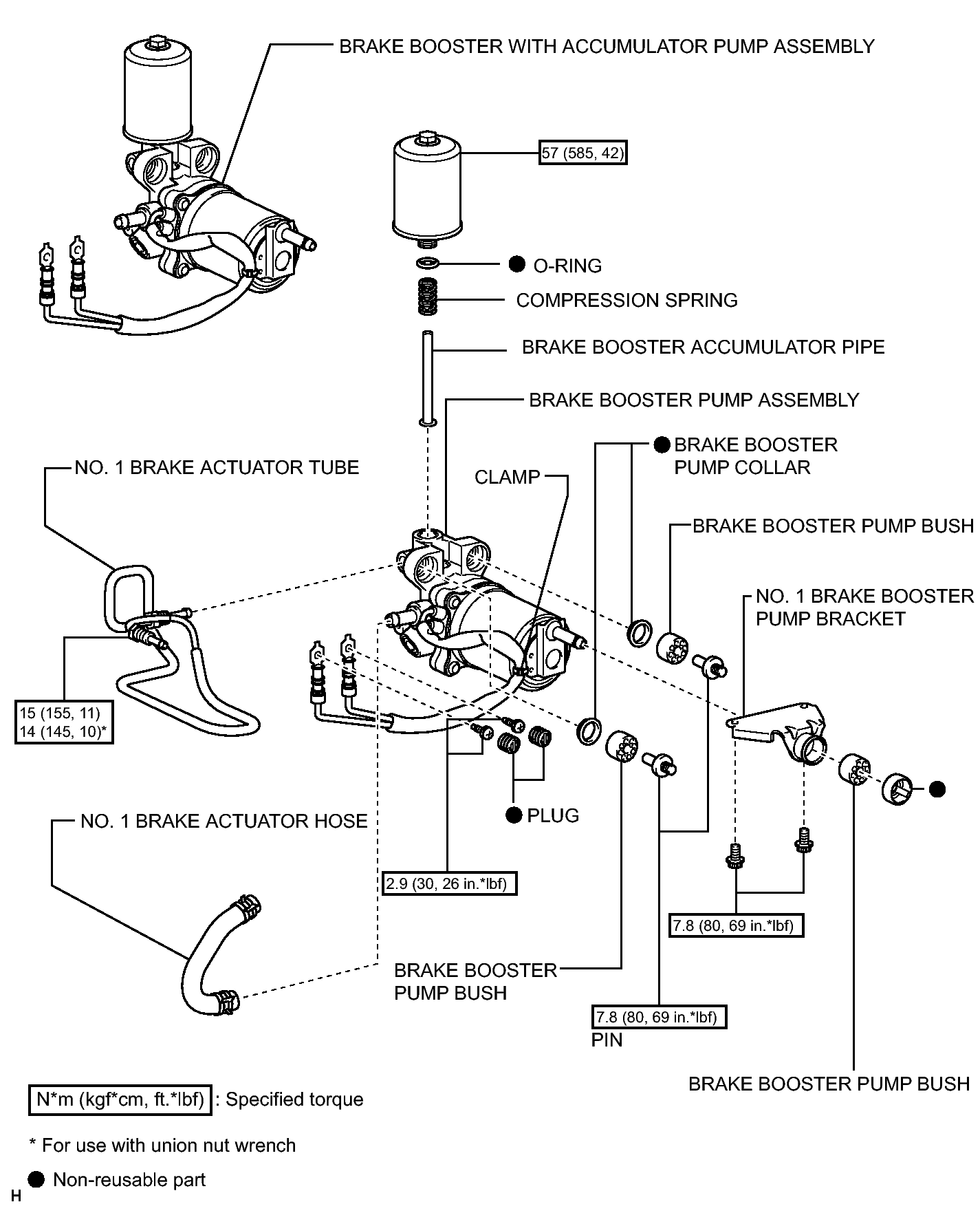

Fig 1: Identifying Hydraulic Brake Booster Replacement Components With Torque Specifications (4 Of 4)
GTY124570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
