Brake Pedal: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE FRONT DOOR SCUFF PLATE LH . Refer to REMOVAL - Step 6
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 38
REMOVE COWL SIDE TRIM BOARD LH . Refer to REMOVAL - Step 39
REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL . Refer to REMOVAL - Step 40
REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY . Refer to REMOVAL - Step 9
REMOVE PUSH ROD PIN
1. Remove the clip and push rod pin from the brake pedal lever.

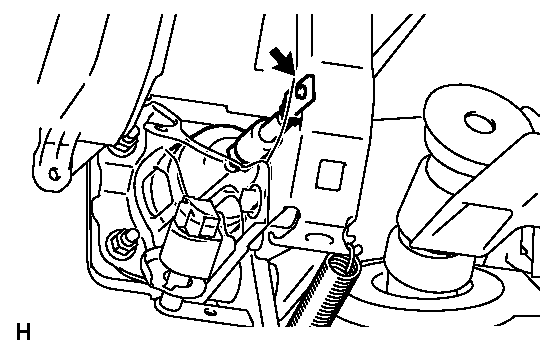

  Fig 1: Locating Push Rod Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STOP LIGHT SWITCH ASSEMBLY
1. Disconnect the stop light switch connector.
2. Remove the stop light switch. Refer to REMOVAL - Step 2 .
REMOVE BRAKE PEDAL SUPPORT ASSEMBLY
1. Remove the brake pedal support reinforcement set bolt.

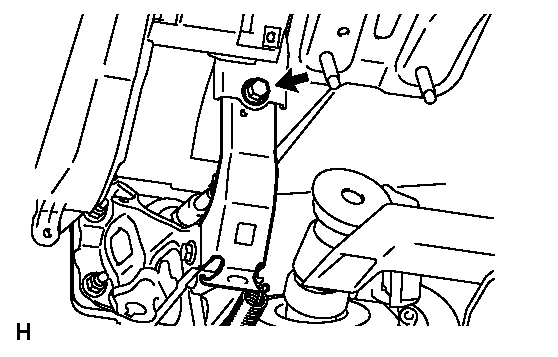

  Fig 2: Locating Brake Pedal Support Reinforcement Set Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 nuts and brake pedal support assembly.

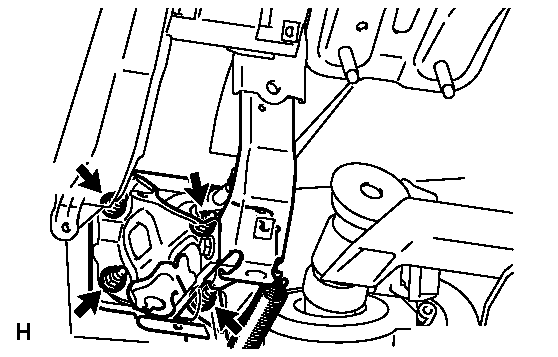

  Fig 3: Locating Brake Pedal Support Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
