Brake Pedal: Components: Illustration

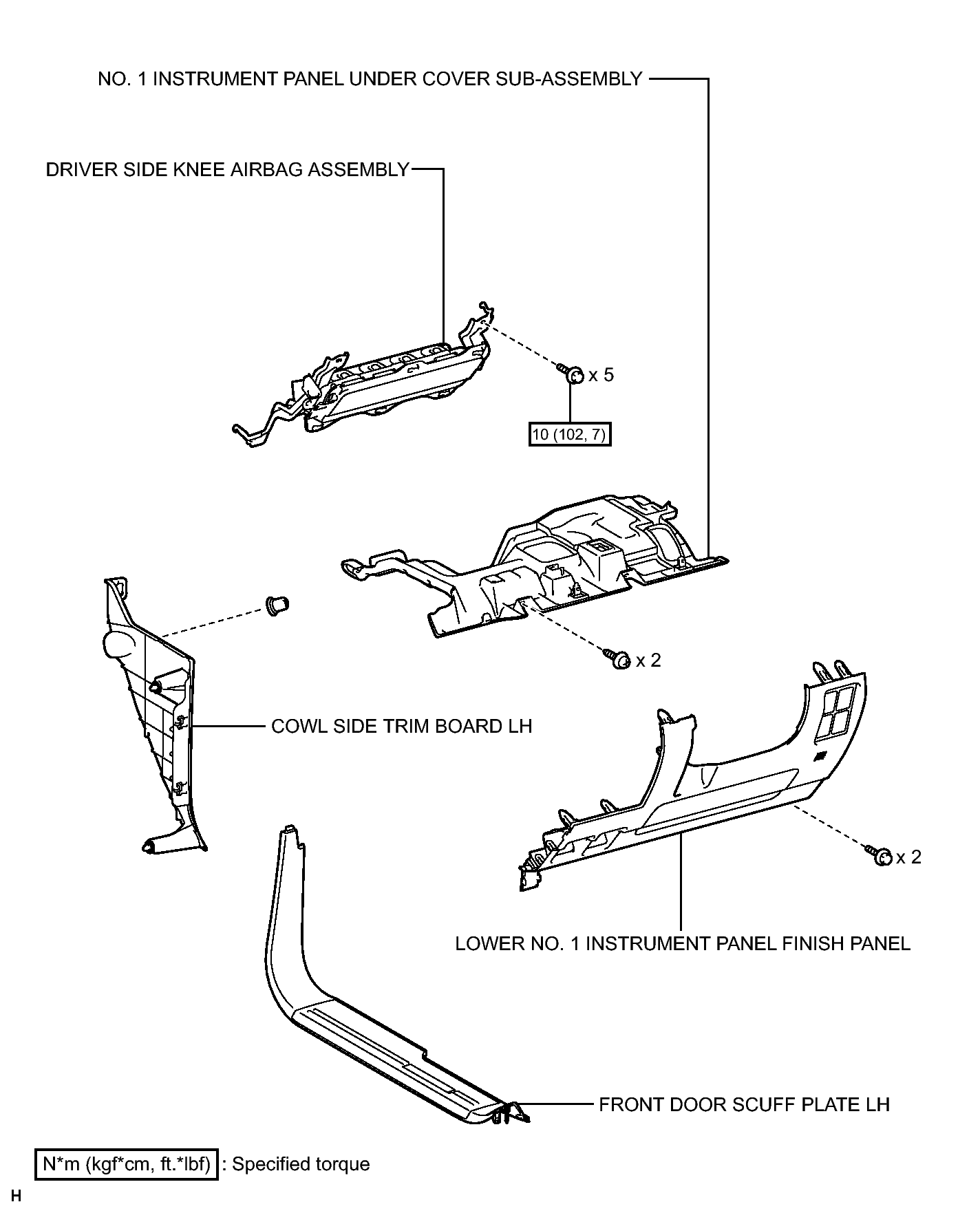

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specification (1 Of 2)
GTY130928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

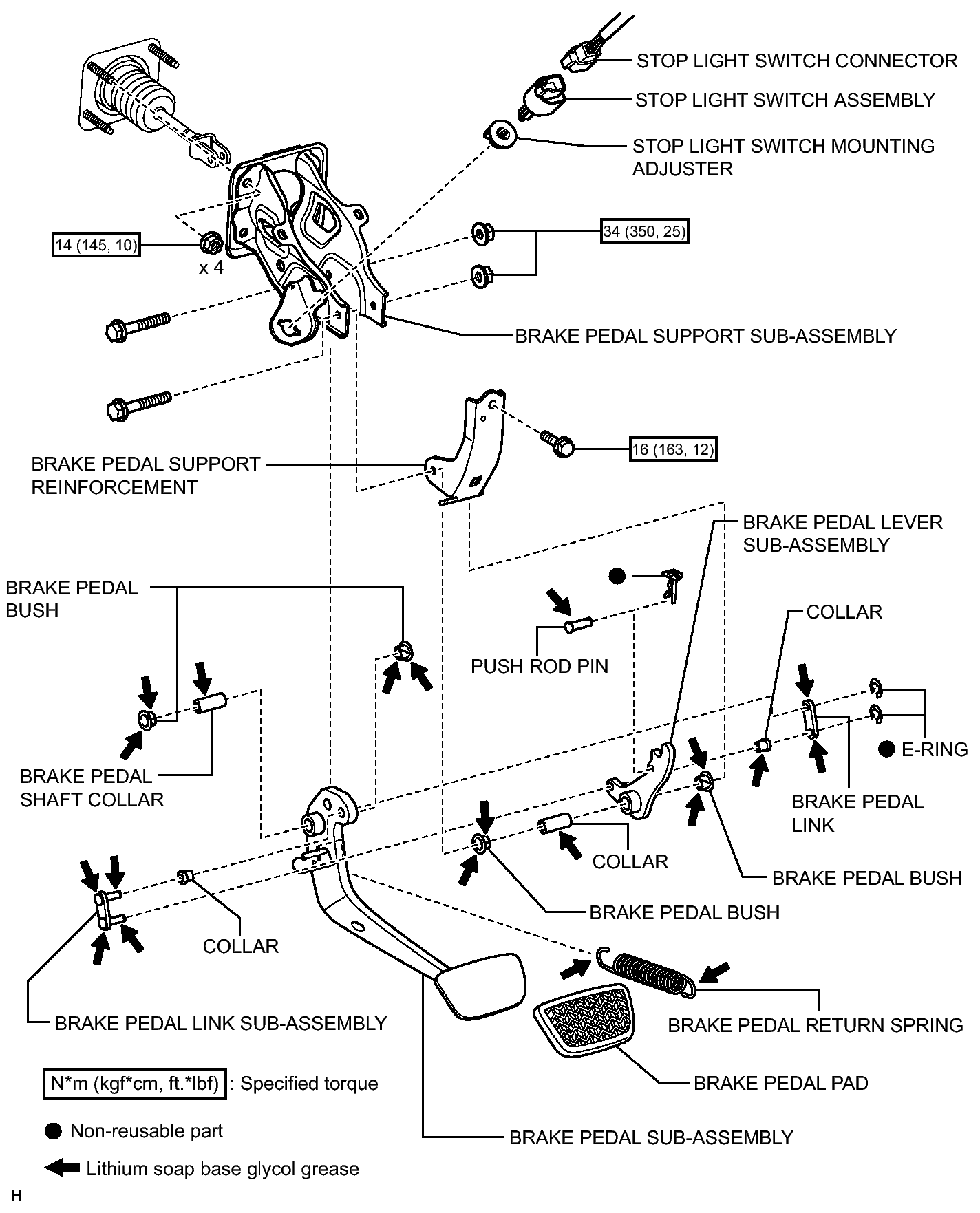

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (2 Of 2)
GTY109664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
