System Diagram

HINT:

Refer to the diagram below to confirm the locations and tightening torque of the flexible hoses and brake tubes.

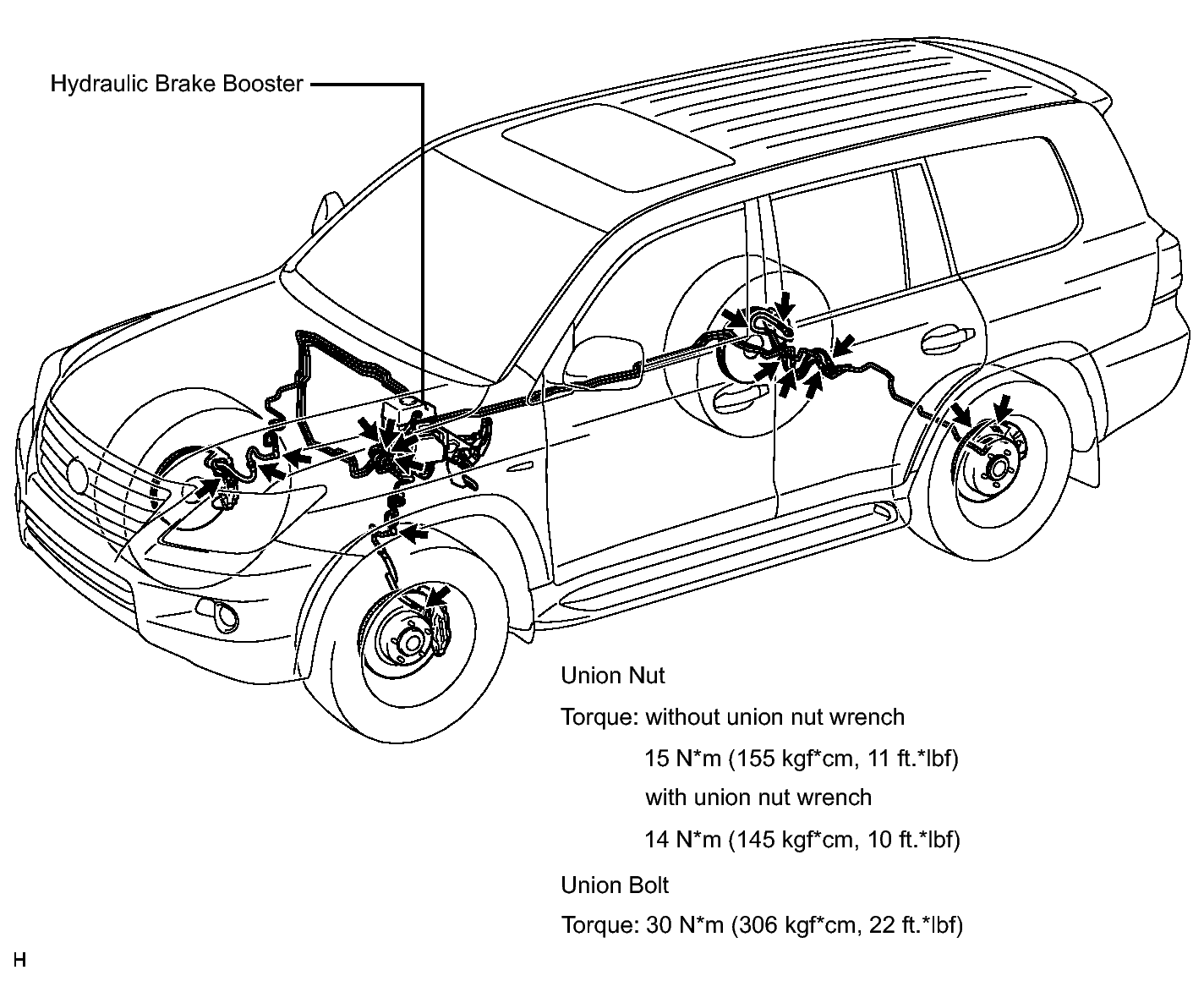

Fig 1: Brake System Line Diagram
GTY121356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
