DTC B1500: Fuel Sender Open Detected: Wiring Diagram

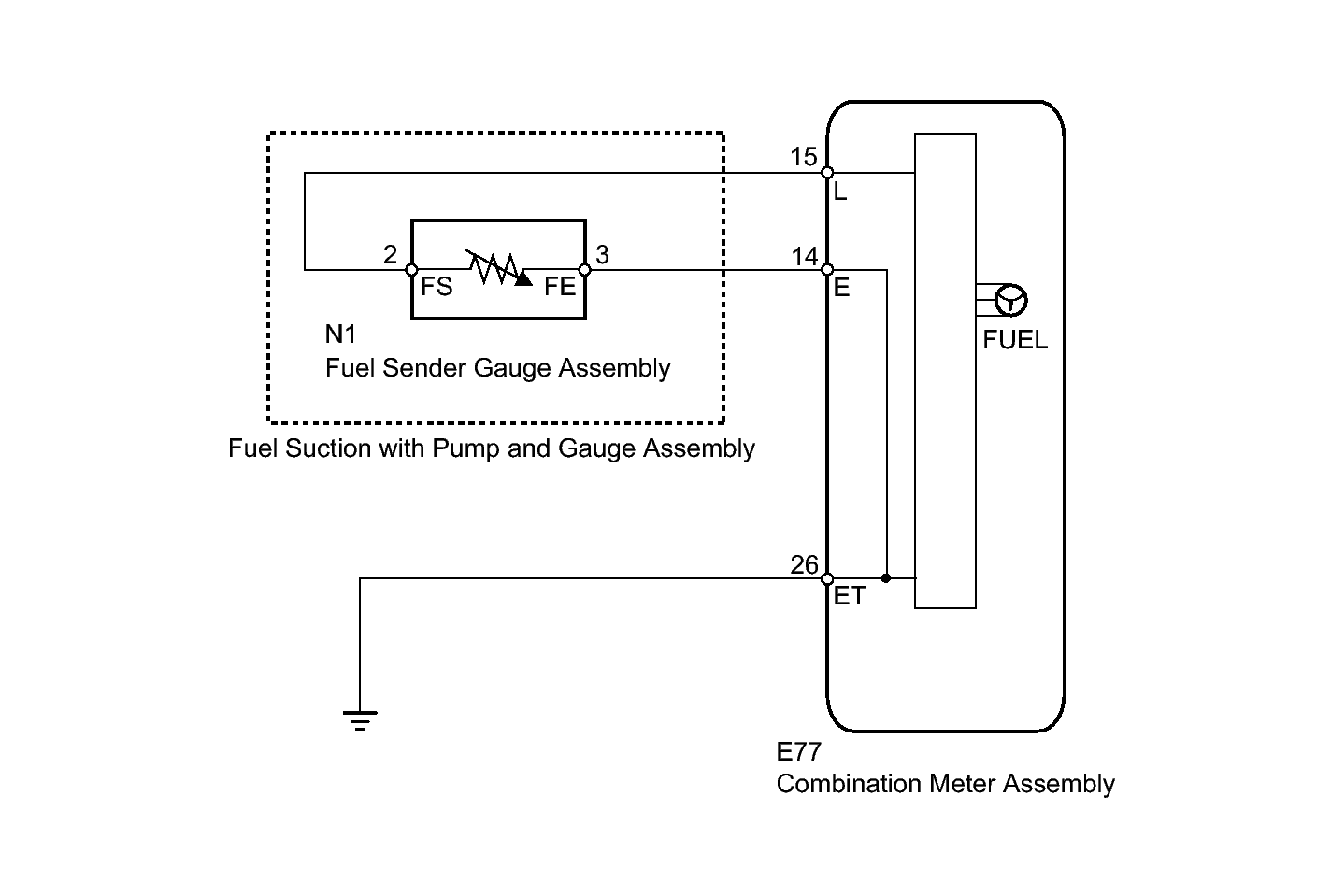

Fig 1: Combination Meter Assembly - Wiring Diagram

GTY154091

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
