DTC P1507-207: PTC A/C Auxiliary Heater Disabled Low: Wiring Diagram

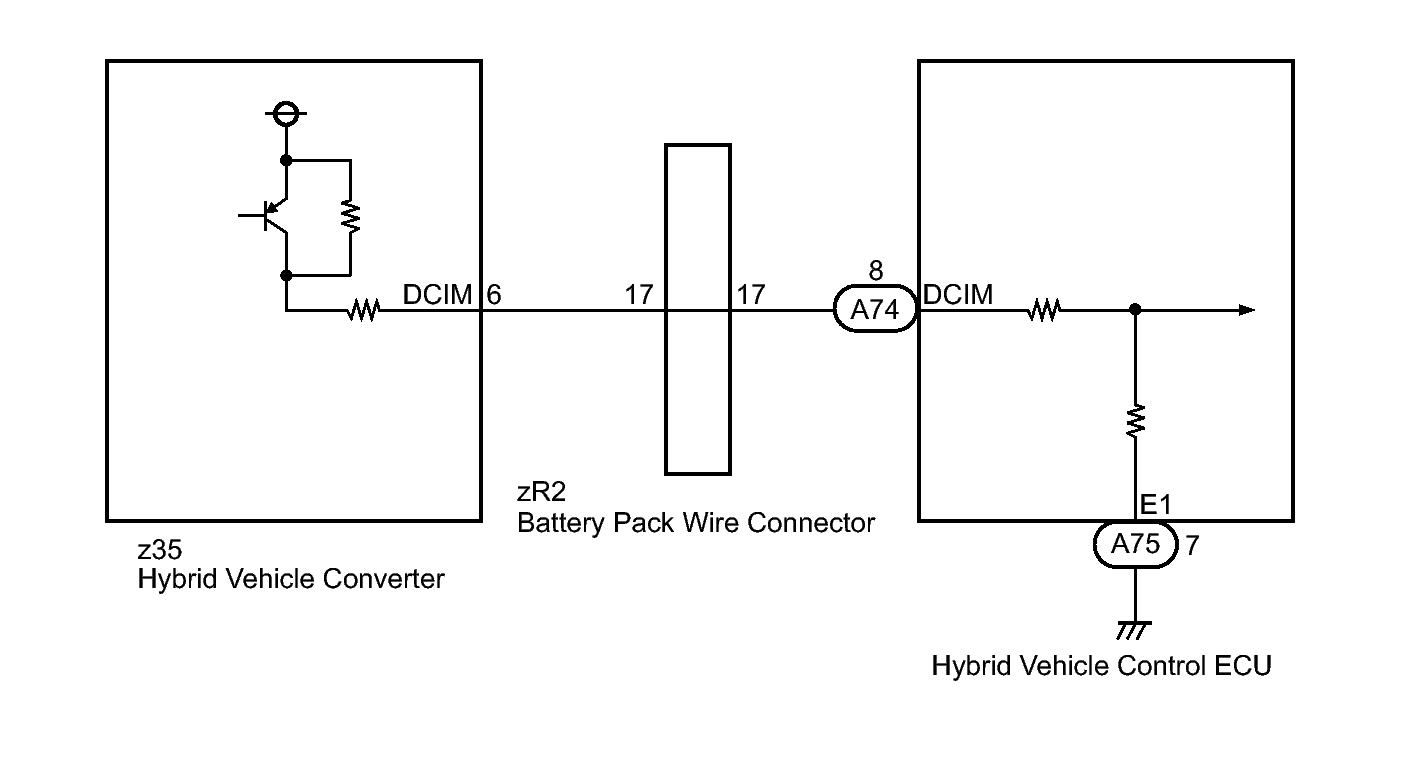

Fig 1: PTC A/C Auxiliary Heater Disabled Low - Wiring Diagram

GTY148472

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
