DTC P0AE6-225: Hybrid Battery Precharge Contactor Control Circuit Low
>>
Wiring Diagram
DTC P0AE6-225: Hybrid Battery Precharge Contactor Control Circuit Low: Wiring Diagram

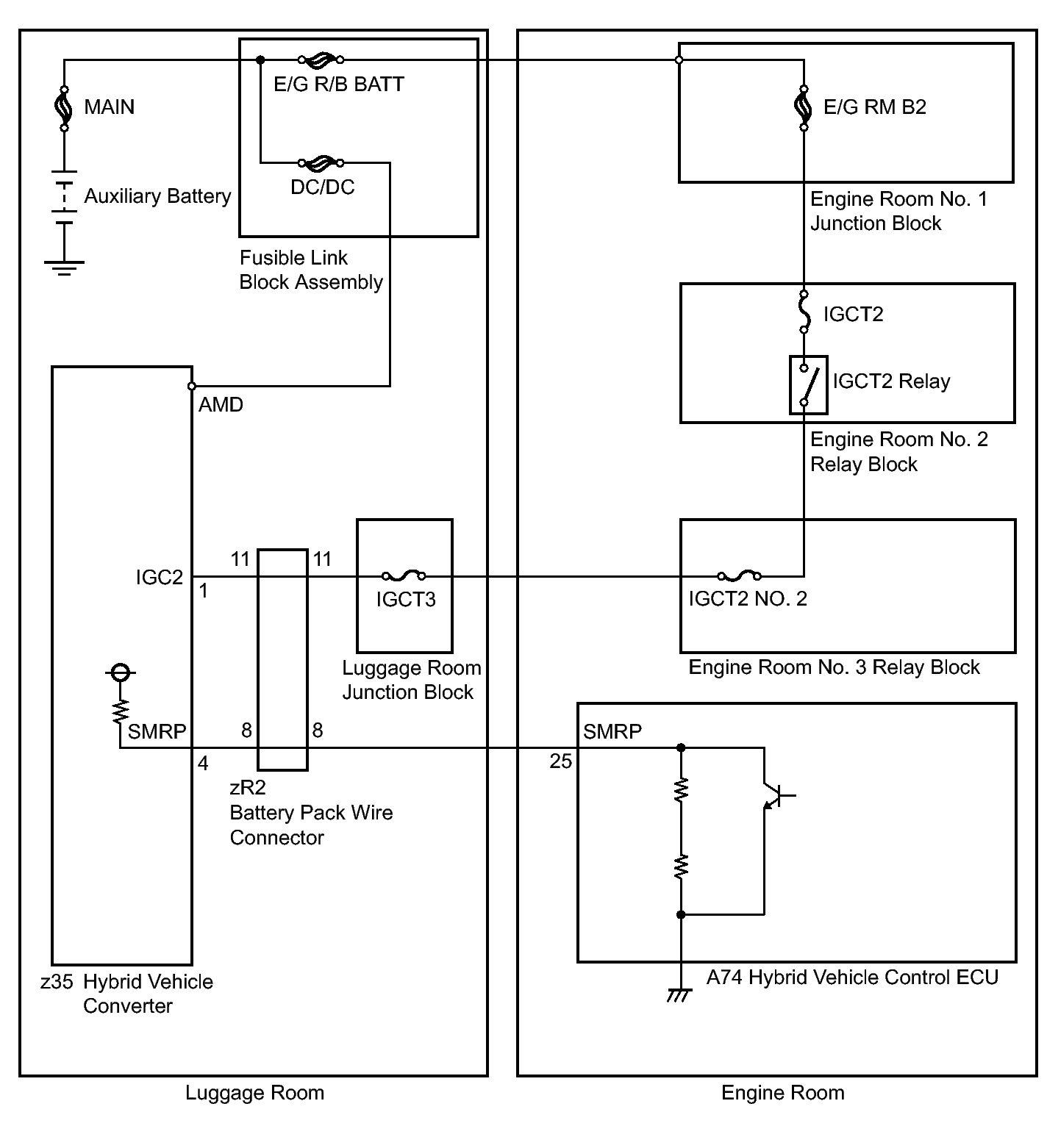

Fig 1: Hybrid Battery Precharge Contactor Control Circuit Wiring Diagram (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

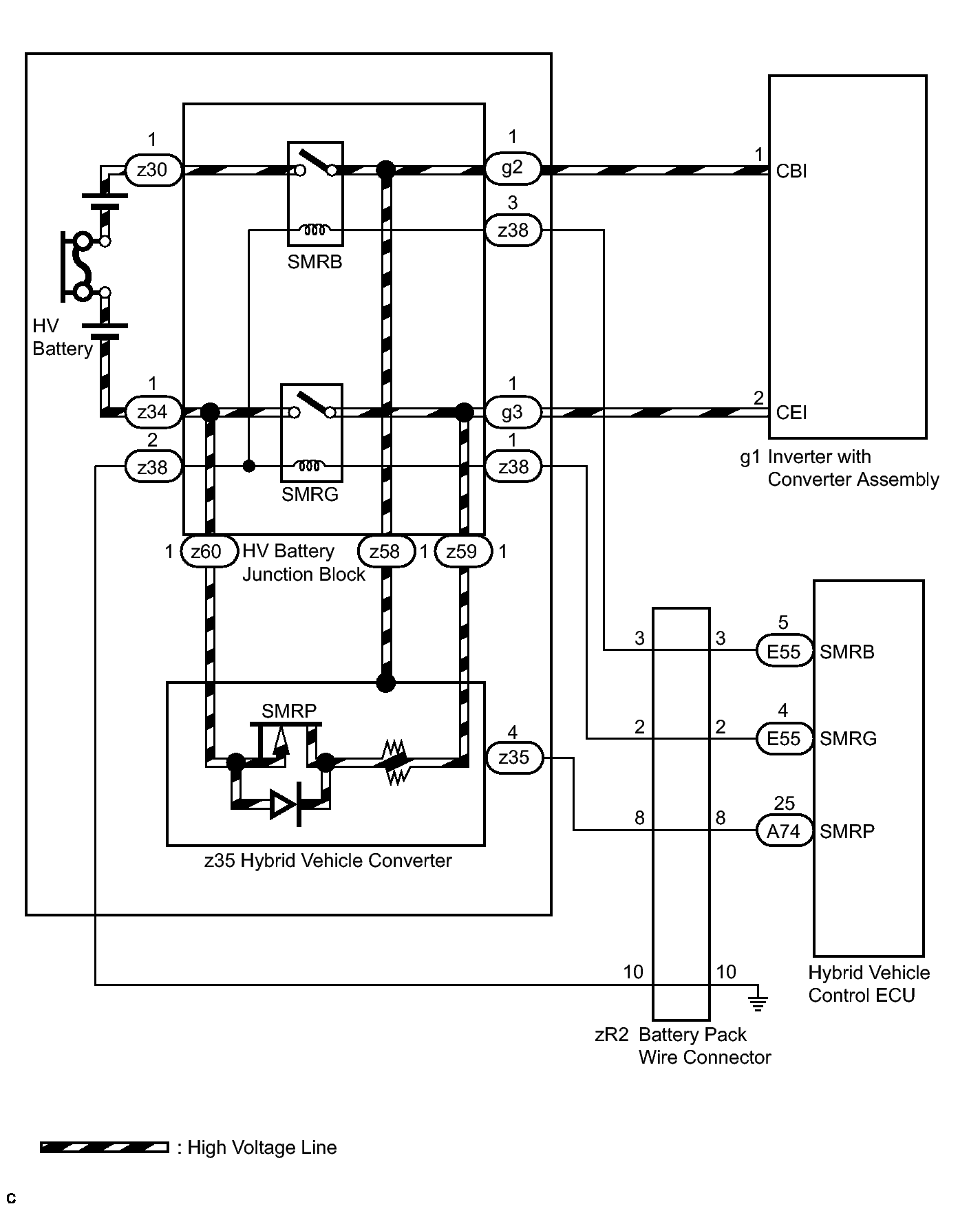

Fig 2: Hybrid Battery Precharge Contactor Control Circuit Wiring Diagram (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
