DTC P0A1F-150: Battery Energy Control Module; DTC P0A1F-157: Battery Energy Control Module: Wiring Diagram

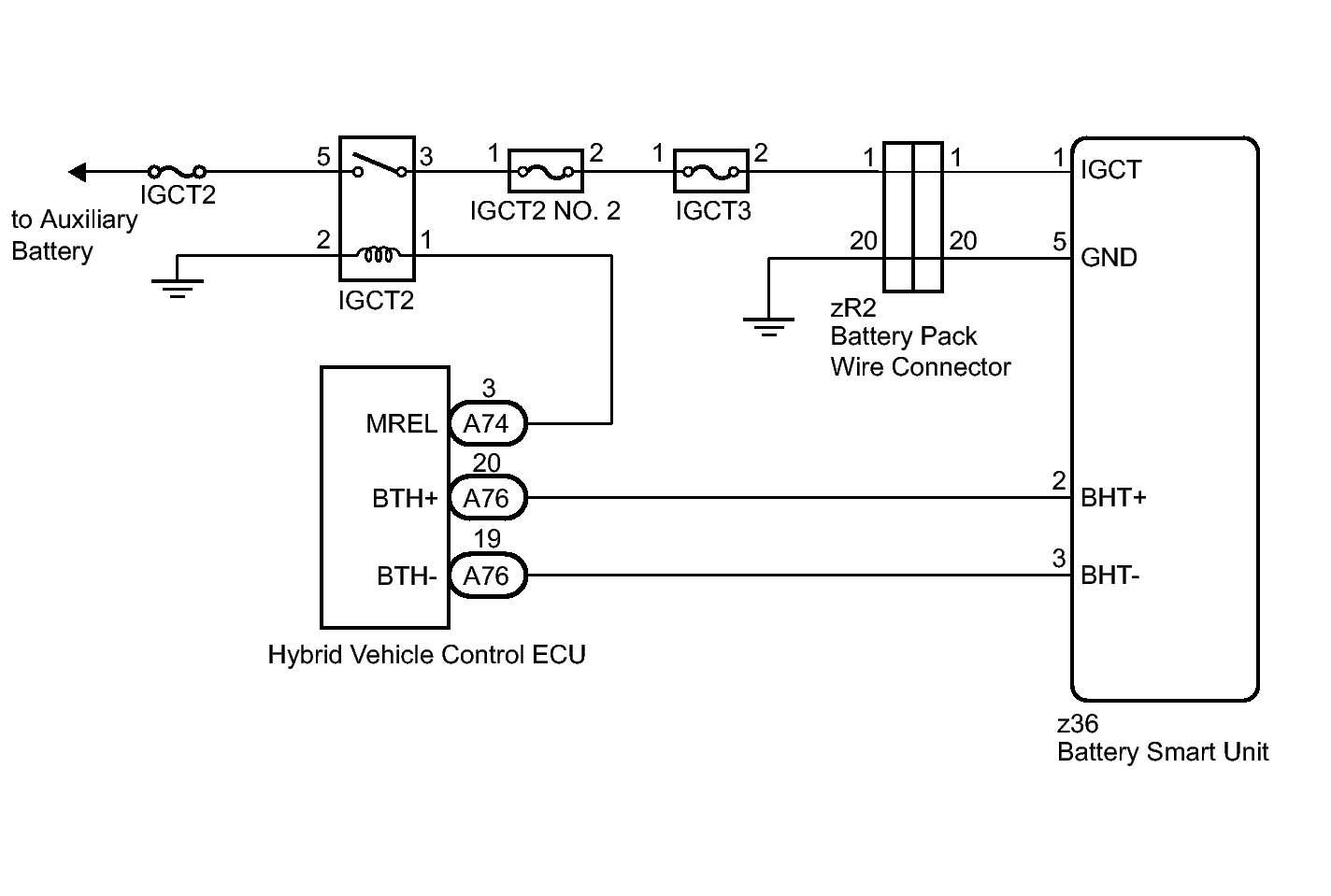

Fig 1: Battery Energy Control Module Wiring Diagram
GTY139984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
