DTC P0A1B-788: Drive Motor "A" Control Module: Wiring Diagram

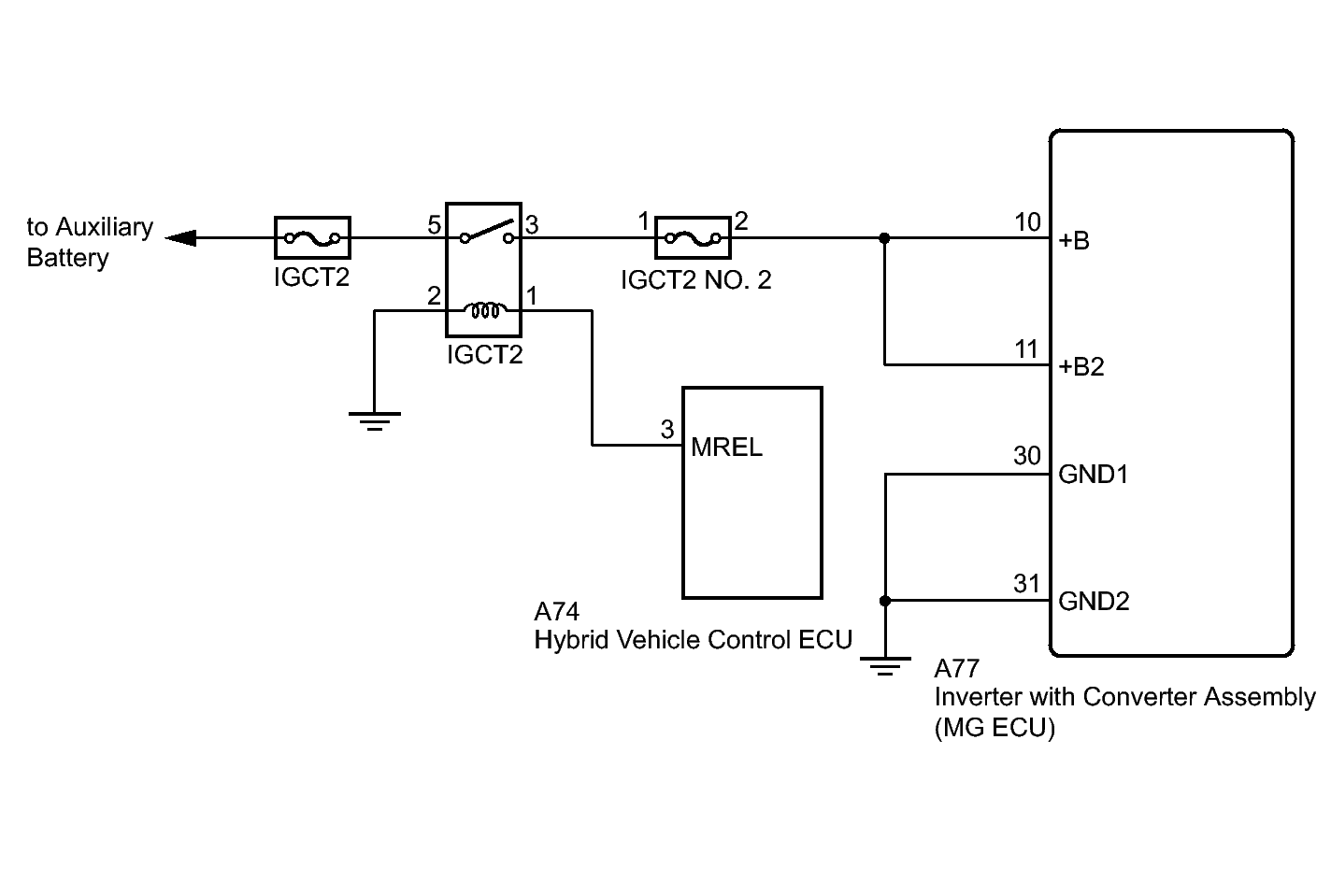

Fig 1: Drive Motor "A" Control Module - Wiring Diagram

GTY147876

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
