DTC P0A09-591: DC / DC Converter Status Circuit Low Input: Wiring Diagram

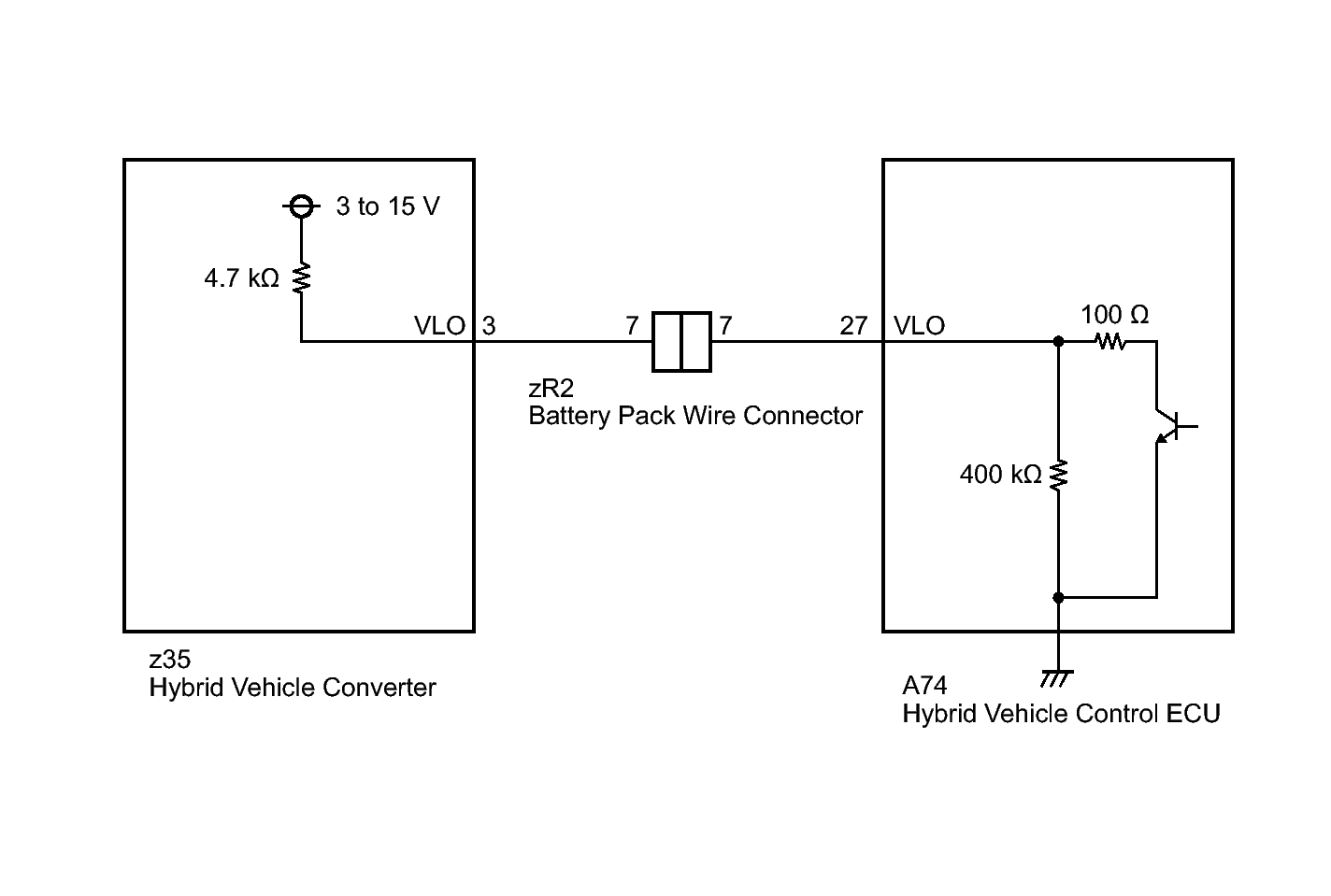

Fig 1: DC/DC Converter Status Circuit Low Input - Wiring Diagram

GTY142216

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
