DTC P0867-876: Transmission Fluid Pressure; DTC P0867-878: Transmission Fluid Pressure; DTC P0867-882: Transmission Fluid Pressure; DTC P0989-899: Transmission Fluid Pressure Sensor / Switch "E" Circuit Low: Procedure

  1. CHECK DTC OUTPUT (HV)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Select the following menu items: Powertrain / Hybrid Control / Trouble Codes.
    4. Check if DTCs are output.

      Result

      Result Proceed to
      P0867-876, 878, 882, or P0989-899 only is output. A
      Any of the following DTCs are also output. B
      DTC No. Relevant Diagnosis
      P2720-852 Pressure Control Solenoid Circuit Low Voltage
      P2721-853 Pressure Control Solenoid Circuit High Voltage
      P2797-865, 881, 888, 889, 895 Auxiliary Transmission Fluid Pump Control Performance
      P2798-858 Auxiliary Transmission Fluid Pump Control Circuit Low
      P2799-859 Auxiliary Transmission Fluid Pump Control Circuit High

    B → See step   28

    A: Go to next step

  2. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)
    1. Check the connections of the hybrid vehicle control ECU connectors.
      Fig 1: Identifying Hybrid Vehicle Control ECU Connectors
      GTY147636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The connectors are connected securely and there are no contact problems.

    NG → CONNECT SECURELY

    OK: Go to next step

  3. CHECK CONNECTOR CONNECTION CONDITION (TRANSMISSION WIRE CONNECTOR)
    1. Check the connection of the transmission wire connector.

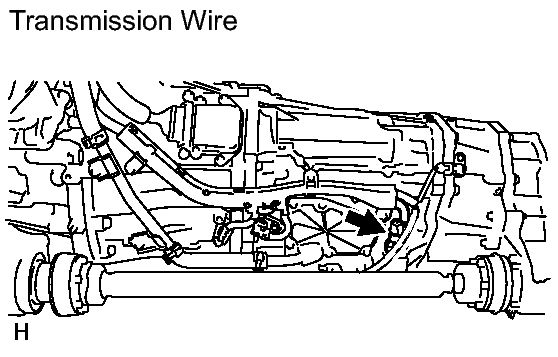

      Fig 2: Locating Transmission Wire Connector
      GTY148101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The connector is connected securely and there are no contact problems.

    NG → CONNECT SECURELY

    OK: Go to next step

  4. CHECK CONNECTOR CONNECTION CONDITION (OIL PUMP MOTOR CONTROLLER CONNECTOR)
    NOTE:

    Before disconnecting the connectors, confirm that they are properly connected by checking that the locking claws are engaged and that the connectors do not pull out.

    1. Check the connections of the oil pump motor controller connectors.
      Fig 3: Locating Oil Pump Motor Controller Connectors
      GTY147641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The connectors are connected securely and there are no contact problems.

      HINT:

      For connector A, when connecting it, insert it with the locking lever in the raised position. Rotate the lever downward and make sure that the connector is pulled into its socket. When the locking lever is in its fully closed position, a click will be heard as its locking claws engage. After the click is heard, pull up on the connector to confirm that it is properly connected.

    NG → CONNECT SECURELY

    OK: Go to next step

  5. CHECK FUSIBLE LINK BLOCK ASSEMBLY (OIL PMP)
    1. Check if there is an open circuit in the fusible link (OIL PMP) in the engine room No. 1 junction block.

      OK

      There is no open circuit in the fusible link (OIL PMP).

      Fig 4: Identifying Fusible Link (Oil Pump)
      GTY148116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG → REPLACE FUSIBLE LINK BLOCK ASSEMBLY

    OK: Go to next step

  6. CHECK HYBRID VEHICLE TRANSMISSION ASSEMBLY (SP SOLENOID VALVE, PB3 OIL PRESSURE SWITCH)
    1. Disconnect connector E55 from the hybrid vehicle control ECU.
      Fig 5: Identifying Connector E55 From Hybrid Vehicle Control ECU
      GTY147652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Condition Specified Condition
      E55-8 (SP) - Body ground 68°F (20°C) 11 to 15 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      E55-20 (PB3) - Body ground Power switch off 10 kΩ or higher

      Result

      Result Proceed to
      Normal A
      Oil pressure switch (PB3) result is not as specified B
      Solenoid valve (SP) result is not as specified C

    C → See step   23

    B → See step   20

    A: Go to next step

  7. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - OIL PUMP MOTOR CONTROLLER)
    1. Turn the power switch off.
      Fig 6: A74 & A78 Connector Terminals
      GTY130097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect connector A74 from the hybrid vehicle control ECU.
    3. Disconnect connector A78 from the oil pump motor controller.
    4. Turn the power switch on (IG).
    5. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      A74-32 (OPM1) - Body ground Power switch on (IG) Below 1 V
      A74-33 (OPST) - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the hybrid vehicle control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    6. Turn the power switch off.
    7. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      A74-32 (OPM1) - A78-6 (SIG) Power switch off Below 1 Ω
      A74-33 (OPST) - A78-7 (OPST) Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      A74-32 (OPM1) - Body ground and other terminals Power switch off 10 kΩ or higher
      A74-33 (OPST) - Body ground and other terminals Power switch off 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  8. CHECK RELAY (OIL PMP)
    1. Remove the OIL PMP relay from the engine room No. 5 relay block.
      Fig 7: Identifying OIL PMP Relay
      GTY147642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      Fig 8: Inspecting Oil Pump Relay
      GTY135566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Switch Condition Specified Condition
      1 - 2 Always 151 to 203 Ω
      3 - 5 Auxiliary battery voltage is not applied between terminals 1 and 2 10 kΩ or higher
      Auxiliary battery voltage is applied between terminals 1 and 2 Below 1 Ω

    NG → See step   30

    OK: Go to next step

  9. CHECK OIL WITH MOTOR PUMP ASSEMBLY
    1. Disconnect the connectors from the oil pump motor controller.
      Fig 9: Identifying Oil Pump Motor Controller Connector Terminals
      GTY148481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      W - Body ground Power switch on (IG) Below 1 V
      U - Body ground Power switch on (IG) Below 1 V
      V - Body ground Power switch on (IG) Below 1 V
      OHW- Body ground Power switch on (IG) Below 1 V
      OHV - Body ground Power switch on (IG) Below 1 V
      OHU - Body ground Power switch on (IG) Below 1 V
      OIGH - Body ground Power switch on (IG) Below 1 V
      OHG - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the oil pump motor controller connectors disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    4. Turn the power switch off.
    5. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      W - U Power switch off Below 1 Ω
      W - V Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      W - Body ground Power switch off 10 kΩ or higher
      U - Body ground Power switch off 10 kΩ or higher
      V - Body ground Power switch off 10 kΩ or higher
      OHW- Body ground Power switch off 10 kΩ or higher
      OHV - Body ground Power switch off 10 kΩ or higher
      OHU - Body ground Power switch off 10 kΩ or higher
      OIGH - Body ground Power switch off 10 kΩ or higher
      OHG - Body ground Power switch off 10 kΩ or higher

    NG → See step   34

    OK: Go to next step

  10. CHECK OIL PUMP MOTOR CONTROLLER (POWER SOURCE CIRCUIT)
    1. Turn the power switch off.
    2. Disconnect connector A78 from the oil pump motor controller.
    3. Install the OIL PMP relay to the engine room No. 5 relay block.
      Fig 10: Identifying OIL PMP Relay
      GTY147642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the power switch on (IG).
    5. Measure the voltage according to the value(s) in the table below.
      Fig 11: Identifying A78 Connector Terminals
      GTY147192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      A78-5 (+B) - Body ground Power switch on (IG) 11 to 14 V
    6. Turn the power switch off.
    7. Remove the OIL PMP relay from the engine room No. 5 relay block.
      Fig 12: Identifying OIL PMP Relay
      GTY147642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Measure the resistance according to the value(s) in the table below.
      Fig 13: Engine Room No. 5 Relay Block And A78 Connector Terminal
      GTY139331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      Engine room No. 5 relay block OIL PMP relay terminal 3 - A78-5 (+B) Power switch off Below 1 Ω
      Engine room No. 5 relay block OIL PMP relay terminal 2 - Body ground Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      Engine room No. 5 relay block OIL PMP relay terminal 3 - Body ground Power switch off 10 kΩ or higher
    9. Disconnect connector A74 from the hybrid vehicle control ECU.
      Fig 14: A74 Connector Terminal
      GTY128198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Turn the power switch off.
    11. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      A74-24 (OPM2) - Engine room No. 5 relay block OIL PMP relay terminal 1 Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      A74-24 (OPM2) or Engine room No. 5 relay block OIL PMP relay terminal 1 - Body ground Power switch off 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  11. READ VALUE USING TECHSTREAM (LINE PRESSURE)
    1. Connect connector A74 to the hybrid vehicle control ECU.
      Fig 15: Identifying E61 Connector Terminals
      GTY135043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the transmission wire connector.
    3. Turn the power switch on (IG).
      NOTE:

      Turning the power switch on (IG) with the hybrid vehicle control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    4. Select the following menu items: Powertrain / Hybrid Control / Data List / Line Pressure.
    5. Read the data list.

      OK

      Tester Display Condition Specified Condition
      Line Pressure E61-8 (PB3) is connected to body ground ON
      E61-8 (PB3) is not connected to body ground OFF

    NG → See step   24

    OK: Go to next step

  12. CLEAR DTC
    1. Select the following menu items: Powertrain / Hybrid Control / Trouble Codes.
    2. Read and record the DTCs and freeze frame data.
    3. Select the following menu items: Powertrain / Hybrid Control / Trouble Codes.
    4. Clear DTCs and freeze frame data.

    NEXT: Go to next step

  13. READ VALUE USING TECHSTREAM (LINE PRESSURE SOLENOID, B2 OIL PRESSURE, LINE PRESSURE)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Select the following menu items: Powertrain / Hybrid Control / Data List / Line Pressure Solenoid, B2 Oil Pressure, Line Pressure.
    4. Check the data list items for approximately 8 seconds after pressing the power switch with the brake pedal depressed.
      Line Pressure Solenoid B2 Oil Pressure Line Pressure Malfunction Condition
      OFF ON OFF PB3 oil pressure switch malfunction
      OFF OFF OFF Hybrid vehicle transmission assembly malfunction

      Result

      Result Proceed
      Result is not as specified (READY indicator comes on within 8 seconds after pressing the power switch) A
      PB3 oil pressure switch malfunction B
      Hybrid vehicle transmission assembly malfunction C

    C → See step   29

    B → See step   25

    A: Go to next step

  14. SIMULATION TEST (OIL PUMP MOTOR)
    1. Turn the power switch on (IG).
    2. Select the following menu items: Powertrain / Hybrid Control / Active Test / Activate the Oil Pump (500 RPM), Activate the Oil Pump (1000 RPM).
    3. Select the following menu items: All Data / OPM Target Revolution, OPM Revolution.
    4. Perform the "Activate the Oil Pump (500 RPM)" and "Activate the Oil Pump (1000 RPM)" active tests.

      OK

      "OPM Target Revolution" and "OPM Revolution" values are almost equal.

      NOTE:

      Make sure that the auxiliary battery is not discharged.

    NG → See step   34

    OK: Go to next step

  15. SIMULATION TEST (HYBRID VEHICLE TRANSMISSION ASSEMBLY)
    1. Select the following menu items: Powertrain / Hybrid Control / Data List / Line Pressure, Line Pressure Solenoid.
    2. Turn the power switch on (READY).
    3. 10 seconds later, read the data list.

      OK

      "Line Pressure" remains OFF when "Line Pressure Solenoid" is ON.

    4. Select the following menu items: Powertrain / Hybrid Control / Trouble Codes.
    5. Check if DTCs are output.

      OK

      DTCs are not output.

    6. Select the following menu items: Powertrain / Hybrid Control / Active Test / Control the Shift Position.
    7. Select the following menu items: All Data / B1 Oil Pressure, B2 Oil Pressure, Line Pressure, Line Pressure Solenoid.
    8. Perform the "Control the Shift Position" active test.
    9. Switch the shift position between "Lo" and "Hi" several times using the "Control the Shift Position" active test.

      OK

      Item Condition Specified Condition
      Data List
      B1 Oil Pressure B2 Oil Pressure Line Pressure Line Pressure Solenoid
      Control the Shift Position Lo OFF ON ON OFF
      Hi ON OFF ON OFF
      NOTE:

      Transmission system DTCs may be set if the "Control the Shift Position" active test is cancelled before it is completed.

    NG → See step   29

    OK: Go to next step

  16. CHECK FOR INTERMITTENT PROBLEMS
    1. Check for intermittent problems. Refer to CHECK FOR INTERMITTENT PROBLEMS .

    NG → REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

    OK: Go to next step

  17. CHECK FLUID LEAKS
    1. Check for fluid leaks from the hybrid vehicle transmission assembly.

      OK

      There are no fluid leaks.

    NG → See step   31

    OK: Go to next step

  18. CHECK CONNECTOR CONNECTION CONDITION (PB3 OIL PRESSURE SWITCH)
    1. Remove the oil strainer assembly. Refer to REMOVAL .
      Fig 16: Locating PB3 Oil Pressure Switch Connector
      GTY148707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the connection of the PB3 oil pressure switch connector.

      Result

      The connector is connected securely and there are no contact problems.

    NG → CONNECT SECURELY

    OK: Go to next step

  19. CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE)
    1. Disconnect the transmission wire connector.
      Fig 17: Locating PB3 Oil Pressure Switch Connector
      GTY148707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector from the PB3 oil pressure switch.
    3. Turn the power switch on (IG).
    4. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      Transmission wire PB3 oil pressure switch side - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the transmission wire connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    5. Turn the power switch off.
    6. Measure the resistance according to the value(s) in the table below.
      Fig 18: Identifying E61 Connector Terminals
      GTY136766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      Transmission wire PB3 oil pressure switch side - PB3 (E61-8) Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      Transmission wire PB3 oil pressure switch side or PB3 (E61-8) - Body ground and other terminals Power switch off 10 kΩ or more

    NG → See step   32

    OK → See step   33

  20. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - TRANSMISSION WIRE)
    1. Disconnect the transmission wire connector.
      Fig 19: Checking Harness And Connector (Hybrid Vehicle Control ECU -- Transmission Wire)
      GTY135334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      E55-20 (PB3) - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the hybrid vehicle control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    4. Turn the power switch off.
    5. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      E55-20 (PB3) - E61-8 (PB3) Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      E55-20 (PB3) or E61-8 (PB3) - Body ground and other terminals Power switch off 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  21. CHECK CONNECTOR CONNECTION CONDITION (PB3 OIL PRESSURE SWITCH)
    1. Remove the oil strainer assembly. Refer to REMOVAL .
      Fig 20: Locating PB3 Oil Pressure Switch Connector
      GTY148707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the connection of the PB3 oil pressure switch connector.

      Result

      The connector is connected securely and there are no contact problems.

    NG → CONNECT SECURELY

    OK: Go to next step

  22. CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE)
    1. Disconnect the transmission wire connector.
      Fig 21: Locating PB3 Oil Pressure Switch Connector
      GTY148707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector from the PB3 oil pressure switch.
    3. Turn the power switch on (IG).
    4. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      Transmission wire PB3 oil pressure switch side - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the transmission wire connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    5. Turn the power switch off.
    6. Measure the resistance according to the value(s) in the table below.
      Fig 22: Identifying E61 Connector Terminals
      GTY136766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      Transmission wire PB3 oil pressure switch side - PB3 (E61-8) Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      Transmission wire PB3 oil pressure switch side or PB3 (E61-8) - Body ground and other terminals Power switch off 10 kΩ or more

    NG → See step   32

    OK → See step   33

  23. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - TRANSMISSION WIRE)
    1. Disconnect the transmission wire connector and disconnect connector E55 from the hybrid vehicle control ECU.
      Fig 23: Checking Harness And Connector (Hybrid Vehicle Control ECU -- Transmission Wire)
      GTY147649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      E55-8 (SP) - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the hybrid vehicle control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    4. Turn the power switch off.
    5. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      E55-8 (SP) - E61-4 (SP) Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      E55-8 (SP) or E61-4 (SP) - Body ground and other terminals Power switch off 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   29

  24. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - TRANSMISSION WIRE)
    1. Disconnect the hybrid vehicle control ECU connector E55.
    2. Disconnect the transmission wire connector.
      Fig 24: Checking Harness And Connector (Hybrid Vehicle Control ECU -- Transmission Wire)
      GTY135334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the power switch on (IG).
    4. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      E55-20 (PB3) - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the hybrid vehicle control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    5. Turn the power switch off.
    6. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      E55-20 (PB3) - E61-8 (PB3) Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      E55-20 (PB3) or E61-8 (PB3) - Body ground and other terminals Power switch off 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   27

  25. CHECK CONNECTOR CONNECTION CONDITION (PB3 OIL PRESSURE SWITCH)
    1. Remove the oil strainer assembly. Refer to REMOVAL .
      Fig 25: Locating PB3 Oil Pressure Switch Connector
      GTY148707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the connection of the PB3 oil pressure switch connector.

      Result

      The connector is connected securely and there are no contact problems.

    NG → CONNECT SECURELY

    OK: Go to next step

  26. CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE)
    1. Disconnect the transmission wire connector.
      Fig 26: Locating PB3 Oil Pressure Switch Connector
      GTY148707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector from the PB3 oil pressure switch.
    3. Turn the power switch on (IG).
    4. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      Transmission wire PB3 oil pressure switch side - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the transmission wire connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    5. Turn the power switch off.
    6. Measure the resistance according to the value(s) in the table below.
      Fig 27: Identifying E61 Connector Terminals
      GTY136766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      Transmission wire PB3 oil pressure switch side - PB3 (E61-8) Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      Transmission wire PB3 oil pressure switch side or PB3 (E61-8) - Body ground and other terminals Power switch off 10 kΩ or more

    NG → See step   32

    OK → See step   33

  27. REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL
  28. GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART
  29. REPLACE HYBRID VEHICLE TRANSMISSION ASSEMBLY. Refer to  REMOVAL
  30. REPLACE RELAY (OIL PMP). Refer to  REMOVAL
  31. REPAIR OR REPLACE HYBRID VEHICLE TRANSMISSION ASSEMBLY. Refer to  REMOVAL
  32. REPLACE TRANSMISSION WIRE. Refer to  REMOVAL
  33. REPLACE PB3 OIL PRESSURE SWITCH. Refer to  REMOVAL
  34. REPLACE OIL WITH MOTOR PUMP ASSEMBLY. Refer to  REMOVAL
scientia non olet · About LEMON Manuals
