Front and Rear Switch Cannot Operate Rear Sunshade: Wiring Diagram

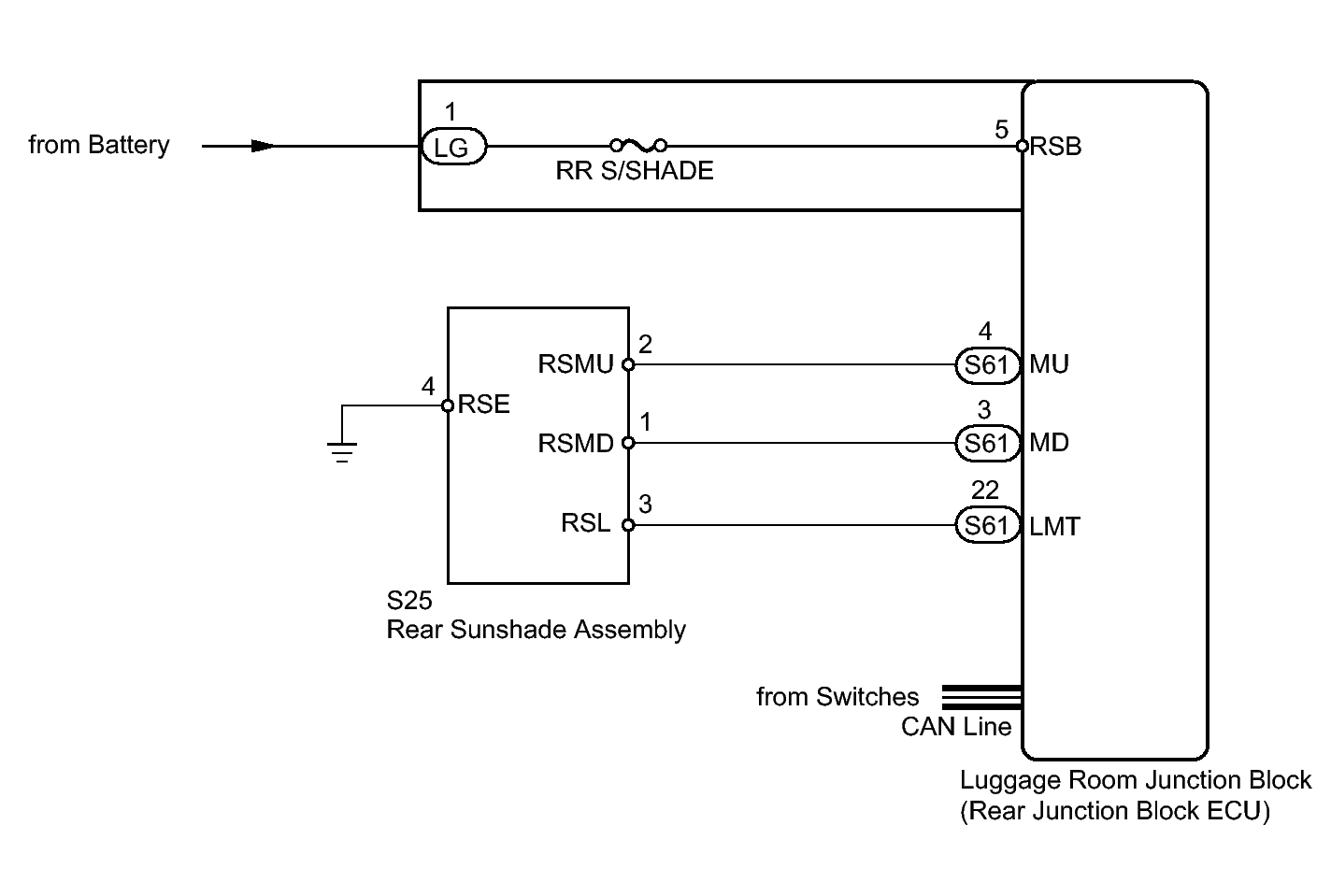

Fig 1: Luggage Room Junction Block And Rear Sunshade Assembly - Wiring Diagram

GTY116835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
