E Glossary Of Terms And Symbols

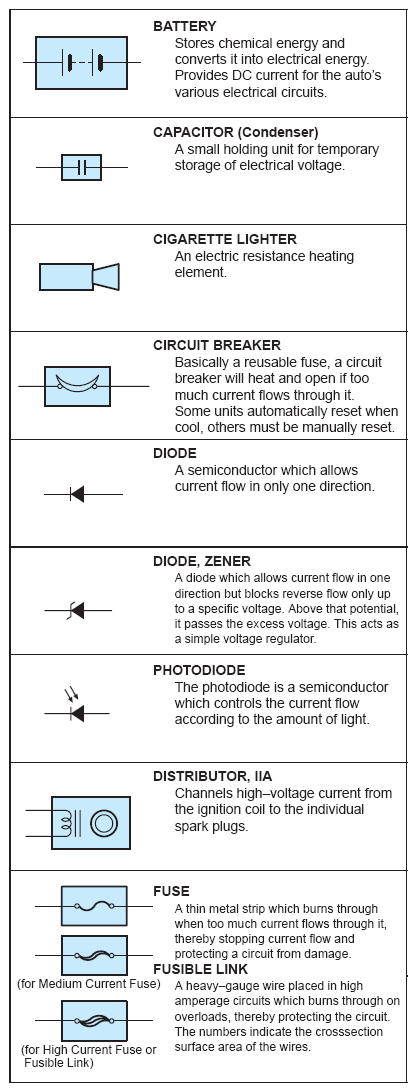

Fig 1: Electric Circuit Symbols Chart (1 Of 4)
G07589248

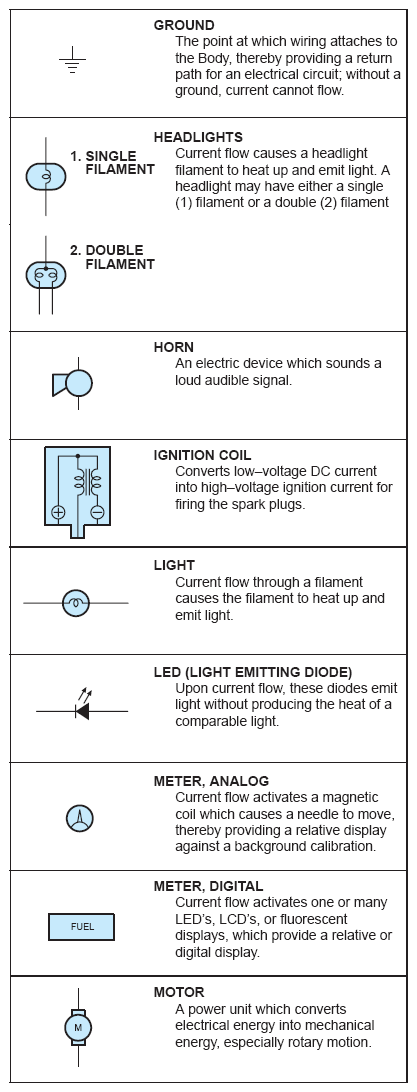

Fig 2: Electric Circuit Symbols Chart (2 Of 4)
G07589249

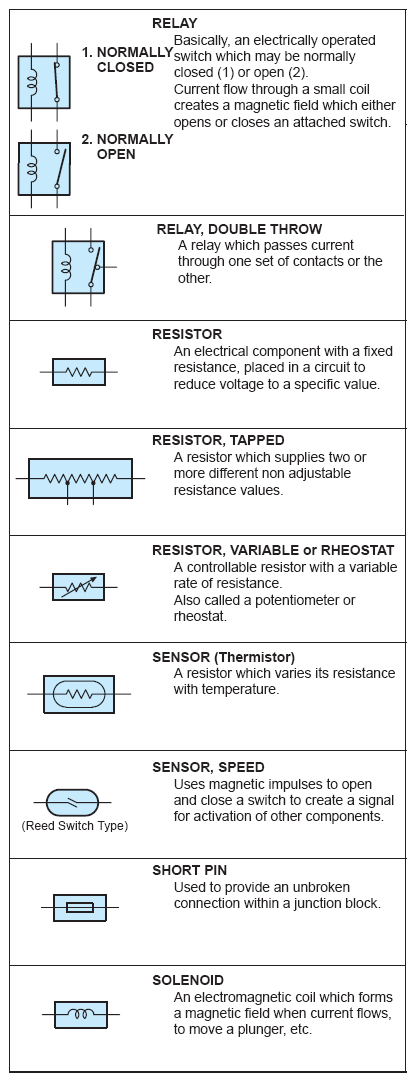

Fig 3: Electric Circuit Symbols Chart (3 Of 4)
G07589250

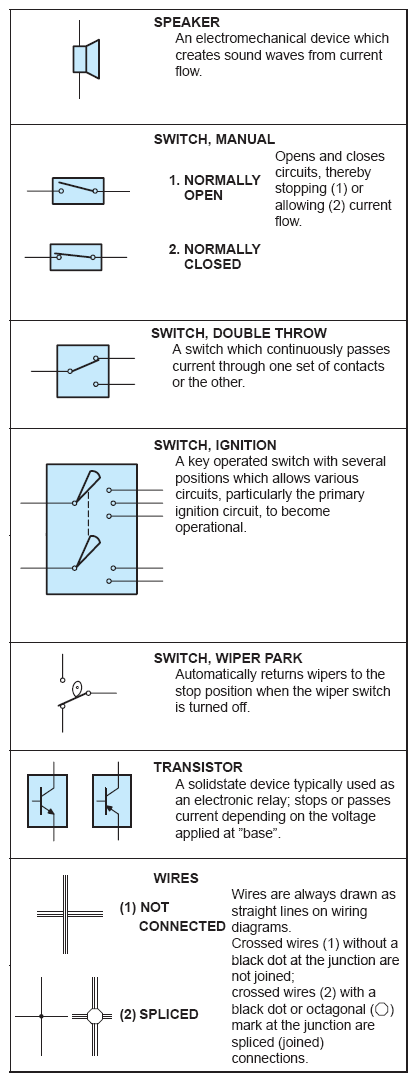

Fig 4: Electric Circuit Symbols Chart (4 Of 4)
G07589251
