REAR CONSOLE BOX (for Ottoman): Removal

REMOVE REAR SEAT CONSOLE BOX ASSEMBLY
1. Using a screwdriver, detach the 4 clips and remove the rear seat console box front panel.
  HINT:

  Tape the screwdriver tip before use.

  Fig 1: Identifying Rear Seat Console Box Front Panel Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, detach the 4 claws, then detach the 2 hooks and remove the rear seat console box lower cover.
  HINT:

  Tape the screwdriver tip before use.

  Fig 2: Identifying Rear Seat Console Box Lower Cover Hook And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 6 bolts, and move the console box in the direction of the arrow shown in the illustration. Then detach the 2 clips, and remove the console box.

  Fig 3: Locating Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the connector.
REMOVE REAR SEAT CONSOLE ARMREST GARNISH LH
1. Open the console door.

  Fig 4: Locating Rear Seat Console Box Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. While pulling up the armrest garnish, detach the 3 claws and 2 clips to remove it.
REMOVE REAR SEAT CONSOLE ARMREST GARNISH RH
HINT:

Use the same procedures described for the LH side.

Fig 5: Identifying Armrest Garnish Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT CONSOLE PANEL ASSEMBLY
1. Using a screwdriver, detach the 6 clips and remove the console panel.
  HINT:

  Tape the screwdriver tip before use.
2. Disconnect the connector.

  Fig 6: Locating Rear Seat Console Panel Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT CONSOLE TABLE COVER FRONT
1. Using a screwdriver, detach the 2 claws.
  HINT:

  Tape the screwdriver tip before use.
2. Pull up the table cover and detach the 2 hooks to remove it.

  Fig 7: Identifying Rear Seat Console Table Cover Front Hook
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT CONSOLE TABLE ASSEMBLY
1. Remove the 2 bolts, 2 nuts and console table.
REMOVE VOLTAGE INVERTER ASSEMBLY (See REMOVAL )
REMOVE REAR SEAT CONSOLE ARMREST ASSEMBLY
1. Take out the console armrest cover.

  Fig 9: Removing Console Armrest Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 8 nuts and 2 bolts.
3. Remove the 2 screws and console armrest.
4. Disconnect the connector.

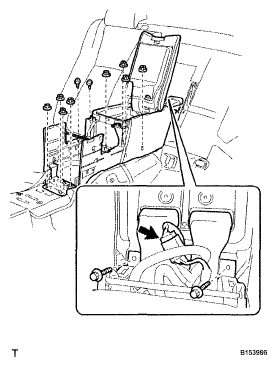

  Fig 10: Locating Screws And Console Armrest With Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
