E Glossary Of Terms And Symbols

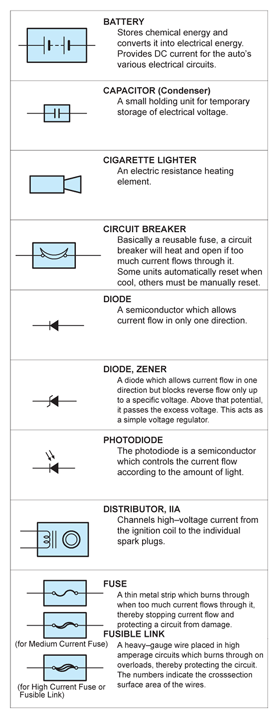

Fig 1: Electric Circuit Symbols Chart (1 Of 4)
G07595284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

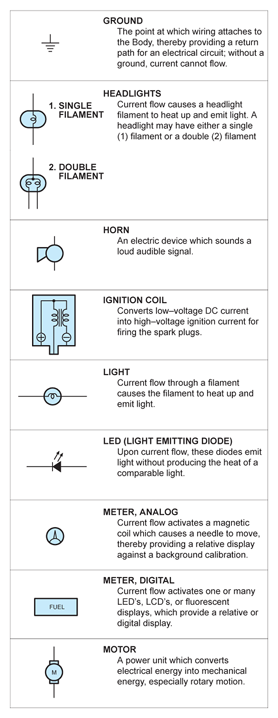

Fig 2: Electric Circuit Symbols Chart (2 Of 4)
G07595285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

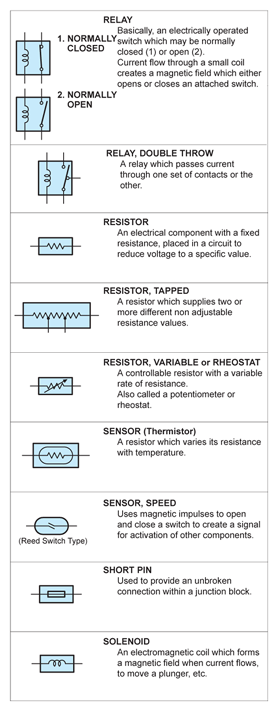

Fig 3: Electric Circuit Symbols Chart (3 Of 4)
G07595286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

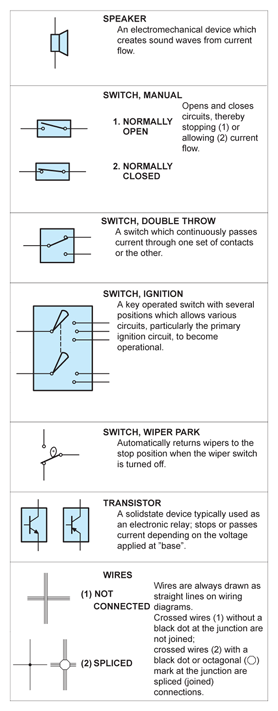

Fig 4: Electric Circuit Symbols Chart (4 Of 4)
G07595287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
