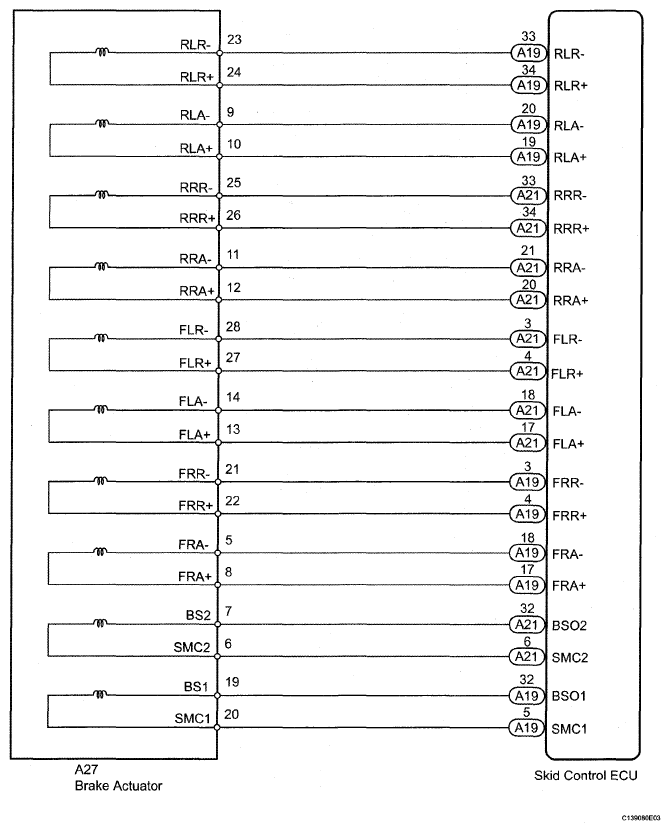

DTC C1315/31 SMC1 Changeover Solenoid Malfunction; DTC C1316/32 SMC2 Changeover Solenoid Malfunction; DTC C1352/21 Front Increasing Pressure Solenoid RH Malfunction; DTC C1353/23 Front Increasing Pressure Solenoid LH Malfunction; DTC C1354/25 Rear Increasing Pressure Solenoid RH Malfunction; DTC C1355/27 Rear Increasing Pressure Solenoid LH Malfunction; DTC C1356/22 Front Decreasing Pressure Solenoid RH Malfunction; DTC C1357/24 Front Decreasing Pressure Solenoid LH Malfunction; DTC C1358/26 Rear Decreasing Pressure Solenoid RH Malfunction; DTC C1359/28 Rear Decreasing Pressure Solenoid LH Malfunction: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
