Luggage Door Hinge Torsion Bar: Removal

  1. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH
    1. Remove the 3 clips and door hinge cover.
      Fig 1: Identifying Luggage Compartment Door Hinge Cover LH Clips
      G04946279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH
    1. Remove the 3 clips and door hinge cover.
      Fig 2: Identifying Luggage Compartment Door Hinge Cover RH Clips
      G04946280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
    Fig 3: Identifying Luggage Compartment Mat Sub-Assembly
    G04946336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE ROPE HOOK ASSEMBLY
    1. Remove the 4 bolts and 4 rope hooks.
      Fig 4: Locating Bolts And Rope Hooks
      G04946337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE ROPE HOOK
    1. Remove the 4 rope hooks by pushing the claws in the direction of the arrows in the illustration.
      Fig 5: Pushing Rope Hook Claws
      G04946338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE DECK TRIM SIDE BOARD RH
    1. Remove the clip.
    2. Remove the side deck trim.
      Fig 6: Identifying Deck Trim Side Board RH Clip
      G04946339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE DECK TRIM SIDE BOARD LH
    1. Remove the clip.
    2. Remove the side deck trim.
      Fig 7: Identifying Deck Trim Side Board LH Clip
      G04946340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
    1. Remove the light assembly.
      2. Fig 8: Installing Courtesy Light With Claws
      G04946278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (w/o Rear Cooler)
    1. Detach the 2 trim hooks.
  10. REMOVE NO. 1 COOLER COVER (w/ Rear Cooler)  (See REMOVAL )
  11. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
    1. w/o Rear Cooler:
      1. Remove the 4 claws, 3 clips and trim.
        Fig 9: Removing Claws, Clips And Trim
        G06197653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Rear Cooler:
      1. Remove the 4 claws, 5 clips and trim.
        Fig 10: Identifying Claws, Clips And Trim
        G06197654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR FLOOR FINISH PLATE
    1. Remove the 3 clips.
    2. Detach the 4 clips and remove the finish plate.
      Fig 11: Identifying Finish Plate Clips
      G04946344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH
    1. Remove the 2 clips.
    2. Detach the claw and luggage compartment trim cover.

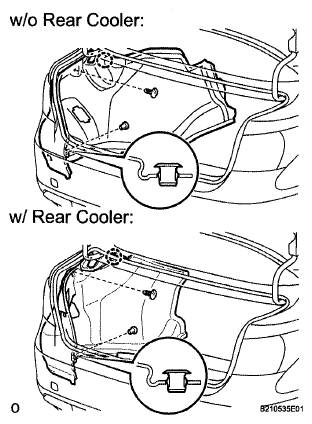

      Fig 12: Identifying Luggage Compartment Trim Cover, Claw And Clips
      G06197656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH
    1. Remove the 2 clips.
    2. Detach the claw and luggage compartment trim cover.

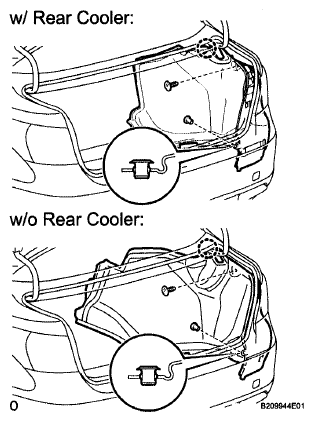

      Fig 13: Identifying Luggage Compartment Trim Cover And Claw
      G06197657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE LUGGAGE DOOR HINGE TORSION BAR RH
    1. Detach the 3 clips and luggage door wire.
      Fig 14: Locating Luggage Door Wire Clips
      G04946349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the luggage door hinge torsion bar RH from the body LH side as shown in the illustration.
      Fig 15: Removing Luggage Door Hinge Torsion Bar RH
      G04946350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, disconnect the luggage door hinge torsion bar RH from the luggage door hinge and body RH side as shown in the illustration.

      SST 09804-24010

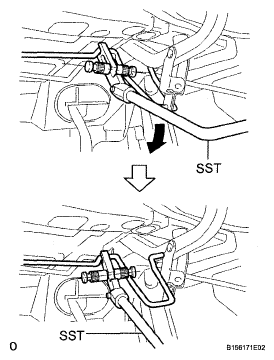

      Fig 16: Disconnecting Luggage Door Hinge Torsion Bar RH Using SST
      G04946351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the luggage door hinge torsion bar RH from the luggage compartment door torsion bar support as shown in the illustration.
      Fig 17: Disconnecting Luggage Door Hinge Torsion Bar RH
      G04946352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE LUGGAGE DOOR HINGE TORSION BAR LH
    1. Remove the luggage door hinge torsion bar LH from the body RH side as shown in the illustration.
      Fig 18: Removing Luggage Door Hinge Torsion Bar LH
      G04946353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, disconnect the luggage door hinge torsion bar LH from the luggage door hinge and body RH side as shown in the illustration.

      SST 09804-24010

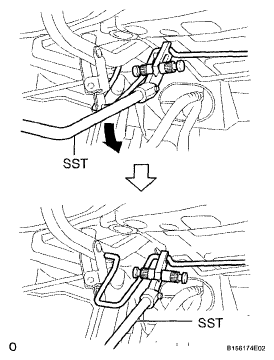

      Fig 19: Disconnecting Luggage Door Hinge Torsion Bar LH Using SST
      G04946354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the luggage door hinge torsion bar LH from the luggage compartment door torsion bar support as shown in the illustration.
      Fig 20: Disconnecting Luggage Door Hinge Torsion Bar LH
      G04946355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR TORSION BAR SUPPORT
    1. Remove the luggage compartment door torsion bar support.
