Windshield Washer Spray Nozzle: Testing and Inspection

WIPER / WASHER: WASHER NOZZLE: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT WASHER NOZZLE
(a) With the engine running, check the position that the washer fluid hits the windshield.
Standard:

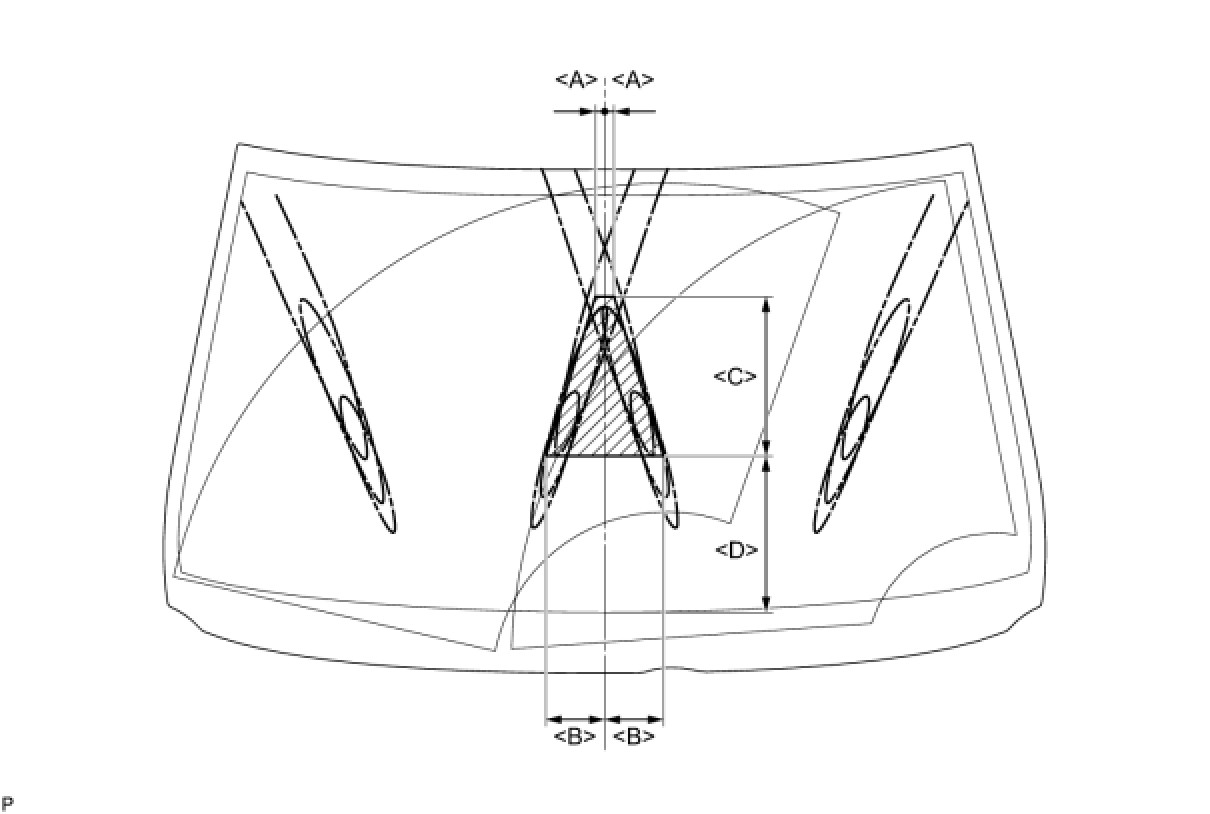

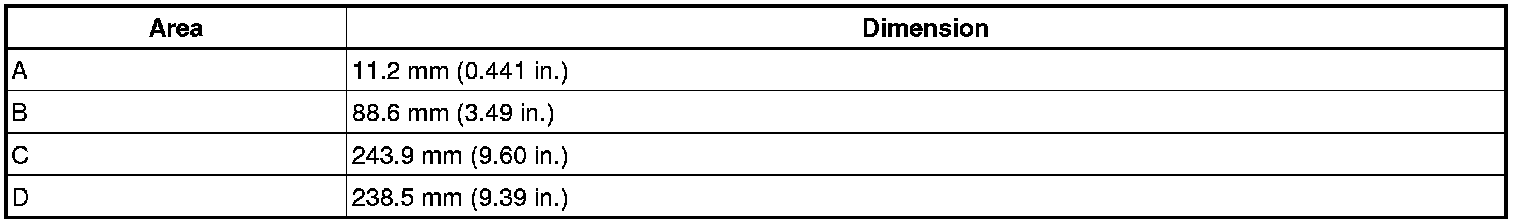

Washer fluid hits the windshield in the areas shown in the illustration.
NOTE:
If the result is not as specified, replace the washer nozzle.
