Removal

WIPER / WASHER: RAIN SENSOR: REMOVAL

REMOVAL

1. REMOVE RAIN SENSOR

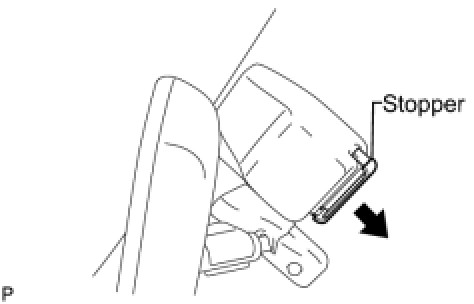

(a) Release the stopper by pulling it down.

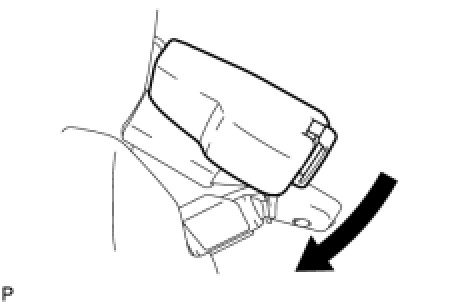

(b) Disconnect the connector and remove the rain sensor as shown in the illustration.
2. CLEAN WINDSHIELD GLASS
NOTICE:
- The rain sensor tape can be reused, however, replace it with a new one if it has dirt on it or it is damaged.
- Check that the rain sensor tape does not remain on the windshield glass. If it does, remove it before installing the rain sensor.
