Removal

WIPER / WASHER: HEADLIGHT CLEANER MOTOR: REMOVAL

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal
2. REMOVE RADIATOR GRILLE PROTECTOR Removal
3. REMOVE FRONT BUMPER ASSEMBLY Removal
4. REMOVE HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY

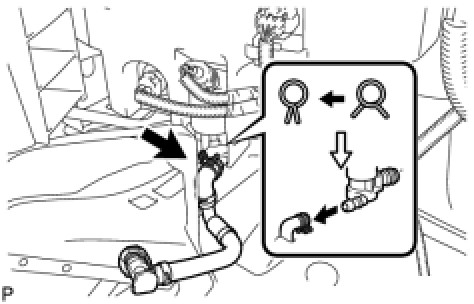

(a) Loosen the clip and disconnect the No. 2 headlight cleaner hose.

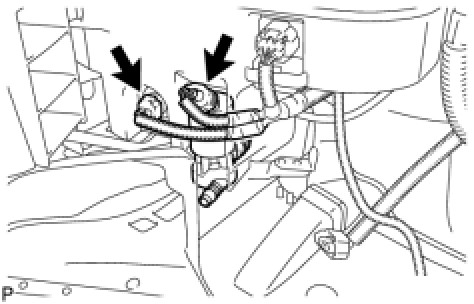

(b) Disconnect each connector and remove the headlight cleaner motor and pump assembly.
