How To Proceed With Troubleshooting

WINDOW / GLASS: WINDOW DEFOGGER SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
- Use the following procedure to troubleshoot the defogger system.
- *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. INSPECT BATTERY VOLTAGE
Standard Voltage:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding.
NEXT -- Continue to next step.
3. PROBLEM SYMPTOMS TABLE

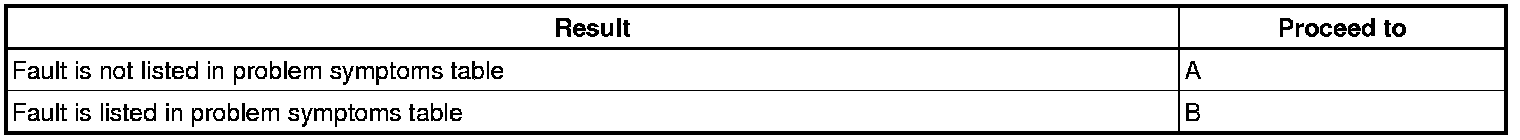

Result:






B -- GO TO STEP 5
A -- Continue to next step.
4. OVERALL ANALYSIS AND TROUBLESHOOTING*
(a) Terminals of ECU Pinout Values and Diagnostic Parameters.
(b) Data List/Active Test Scan Tool Testing and Procedures.
(c) On-vehicle inspection Component Tests and General Diagnostics.
NEXT -- Continue to next step.
5. REPAIR OR REPLACE
NEXT -- Continue to next step.
6. CONFIRMATION TEST
NEXT -- END
