Torque Specifications








SPECIFICATIONS: DRIVE SHAFT / PROPELLER SHAFT: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

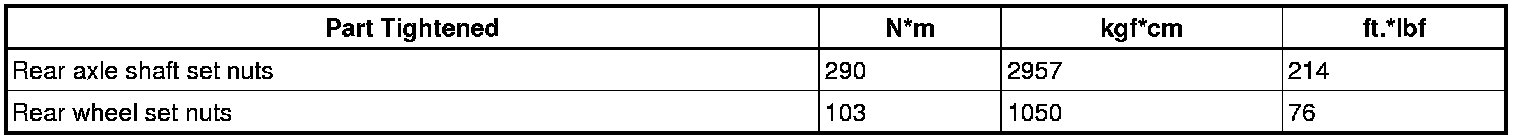

Rear Drive Shaft

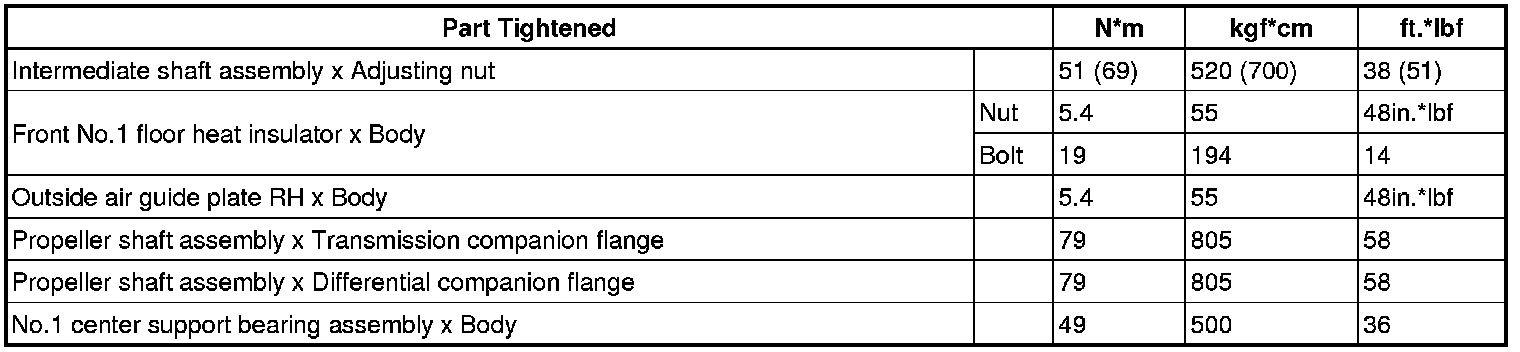

Propeller Shaft





( ): For use without SST
