Reassembly

DRIVE SHAFT / PROPELLER SHAFT: PROPELLER SHAFT ASSEMBLY: REASSEMBLY

REASSEMBLY

1. INSTALL NO. 1 CENTER SUPPORT BEARING ASSEMBLY
NOTE:
Be careful not to grip the propeller shaft tube too tightly in a vise as this may cause deformation.

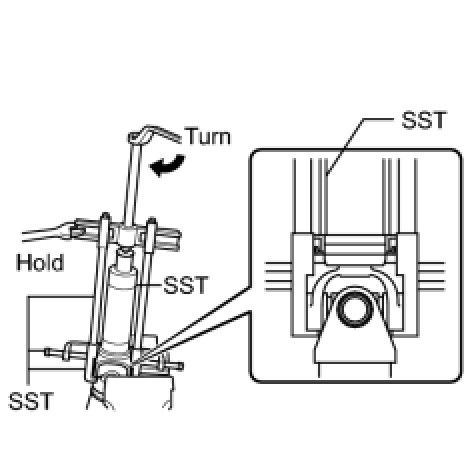

(a) Using SST, install a new No. 1 propeller shaft dust deflector.
SST: 09506-35010
SST: 09316-60011
09316-00011
SST: 09950-40011
09951-04020
09952-04010
09953-04030
09955-04021
09958-04011
NOTE:
Be careful not to damage the No. 1 propeller shaft dust deflector.

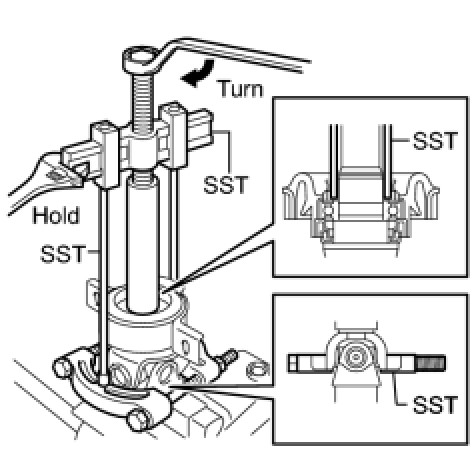

(b) Using SST, install the No. 1 center support bearing assembly.
SST: 09950-40011
09951-04020
09953-04030
SST: 09330-50010
SST: 09950-00020
SST: 09950-50013
09952-05010
NOTE:
Be sure to install the bearing in the correct direction.

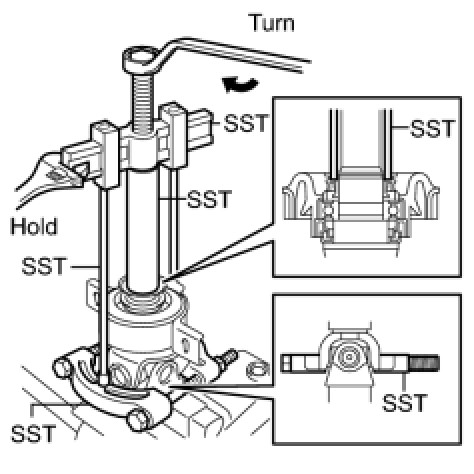

(c) Using SST, insert a new No. 2 propeller shaft dust deflector until it almost touches the rubber of the No. 1 center support bearing assembly.
SST: 09950-40011
09951-04020
09953-04030
SST: 09330-50010
SST: 09950-00020
SST: 09950-50013
09952-05010
NOTE:
Be careful not to damage the No. 2 propeller shaft dust deflector.





(d) Using a snap ring expander, install a new No. 2 propeller shaft dust deflector snap ring.
2. INSTALL PROPELLER INTERMEDIATE SHAFT





(a) Install the dust boot.
NOTE:
Assemble the propeller intermediate shaft assembly after wrapping vinyl tape around the spline to prevent damage.

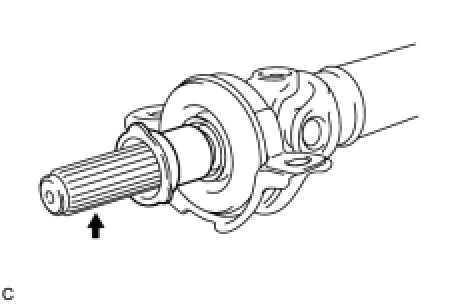

(b) Apply grease to the splines.
Grease:
Molybdenum disulfide lithium base NLGI No. 2

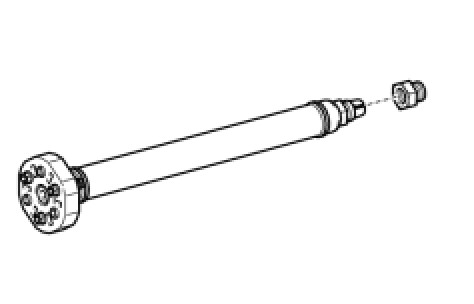

(c) Install the adjusting nut to the intermediate shaft.

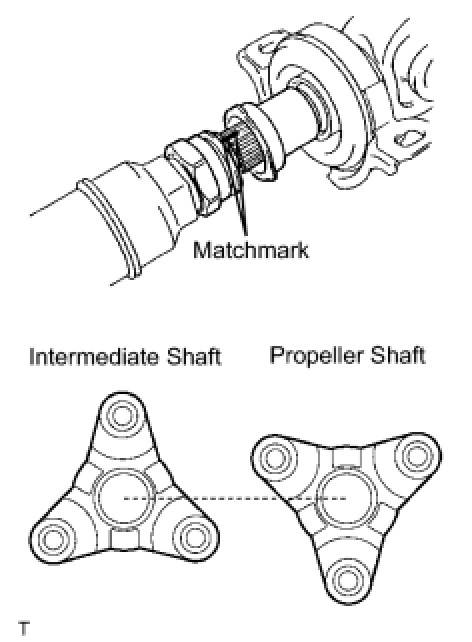

(d) Align the matchmarks and assemble the intermediate shaft and propeller shaft.





(e) Cover the adjusting nut with the dust boot.
NOTE:
The alignment of the intermediate shaft companion flange and the propeller shaft companion flange should differ by 180°.

(f) Temporarily tighten the adjusting nut by hand.
