Pattern Select Switch








AA80E AUTOMATIC TRANSMISSION / TRANSAXLE: PATTERN SELECT SWITCH: INSPECTION

INSPECTION

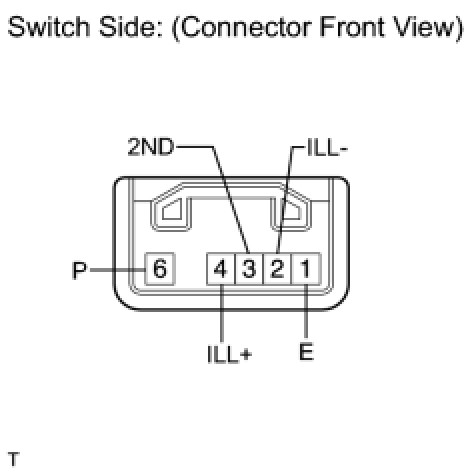

1. INSPECT NO. 1 PATTERN SELECT SWITCH ASSEMBLY

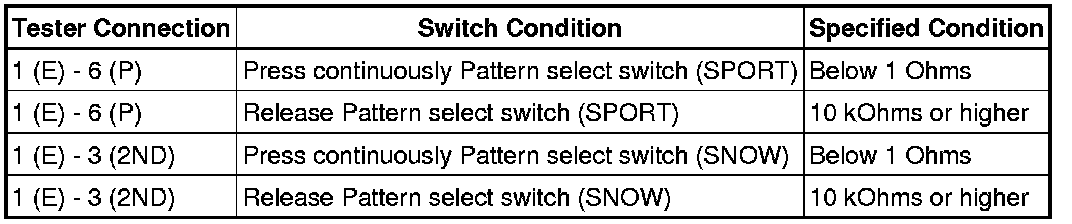

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the resistance value is not as specified, replace the pattern select switch.
