AA80E AUTOMATIC TRANSMISSION / TRANSAXLE: AIR COOLED OIL COOLER: REMOVAL

REMOVAL

1. REMOVE NO. 2 ENGINE UNDER COVER
2. DRAIN AUTOMATIC TRANSMISSION FLUID Removal
3. REMOVE COOL AIR INTAKE DUCT SEAL Removal
4. SEPARATE HIGH PITCHED HORN Removal
5. REMOVE RADIATOR GRILLE PROTECTOR Removal
6. REMOVE FRONT BUMPER ASSEMBLY Removal

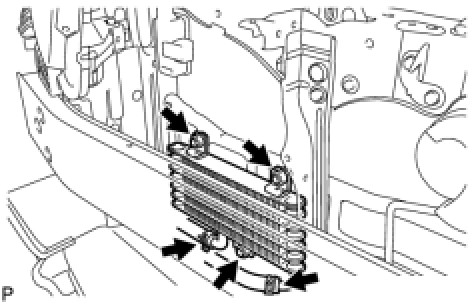

7. REMOVE OIL COOLER ASSEMBLY





(a) Disconnect the 2 oil cooler hoses from the oil cooler assembly.
(b) Remove the 3 bolts and oil cooler assembly from the oil cooler bracket.
