Shift Paddle Switch








AA80E AUTOMATIC TRANSMISSION / TRANSAXLE: SHIFT PADDLE SWITCH: INSPECTION

INSPECTION

1. INSPECT SHIFT PADDLE SWITCH





(a) Disconnect the switch wire connector from the transmission shift switch.
(b) Measure the resistance between each terminal when the paddle shift is moved to each position.

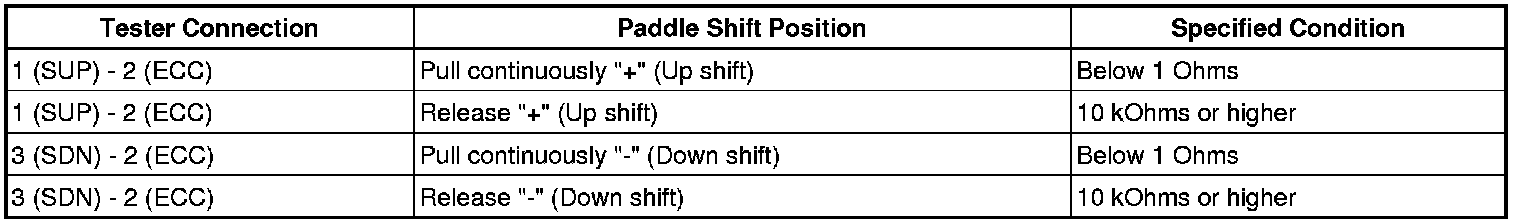

Standard Resistance





If the resistance value is not as specified, replace the shift paddle switch.
