Inspection

AA80E AUTOMATIC TRANSMISSION / TRANSAXLE: SHIFT LEVER: INSPECTION

INSPECTION

1. INSPECT SHIFT LOCK CONTROL ECU

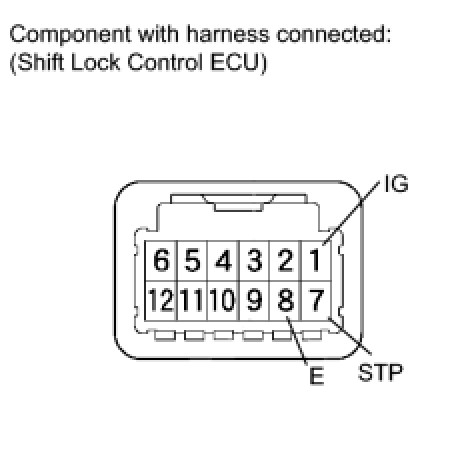

(a) Measure the voltage according to the values in the table below.
HINT: Do not disconnect the shift lock control ECU connector.

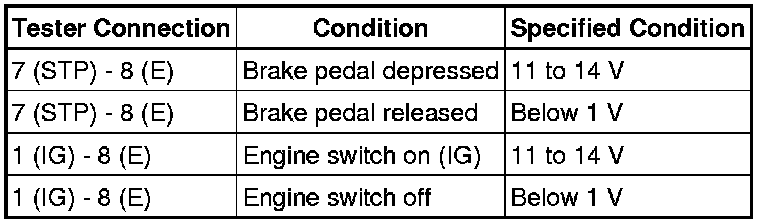

Standard Voltage:

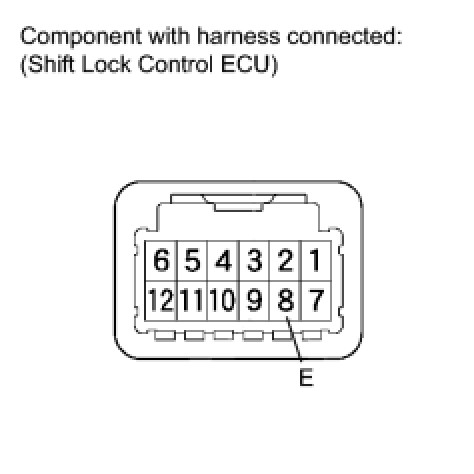

(b) Measure the resistance according to the value in the table below.
HINT: Do not disconnect the shift lock control ECU connector.

Standard Resistance:
